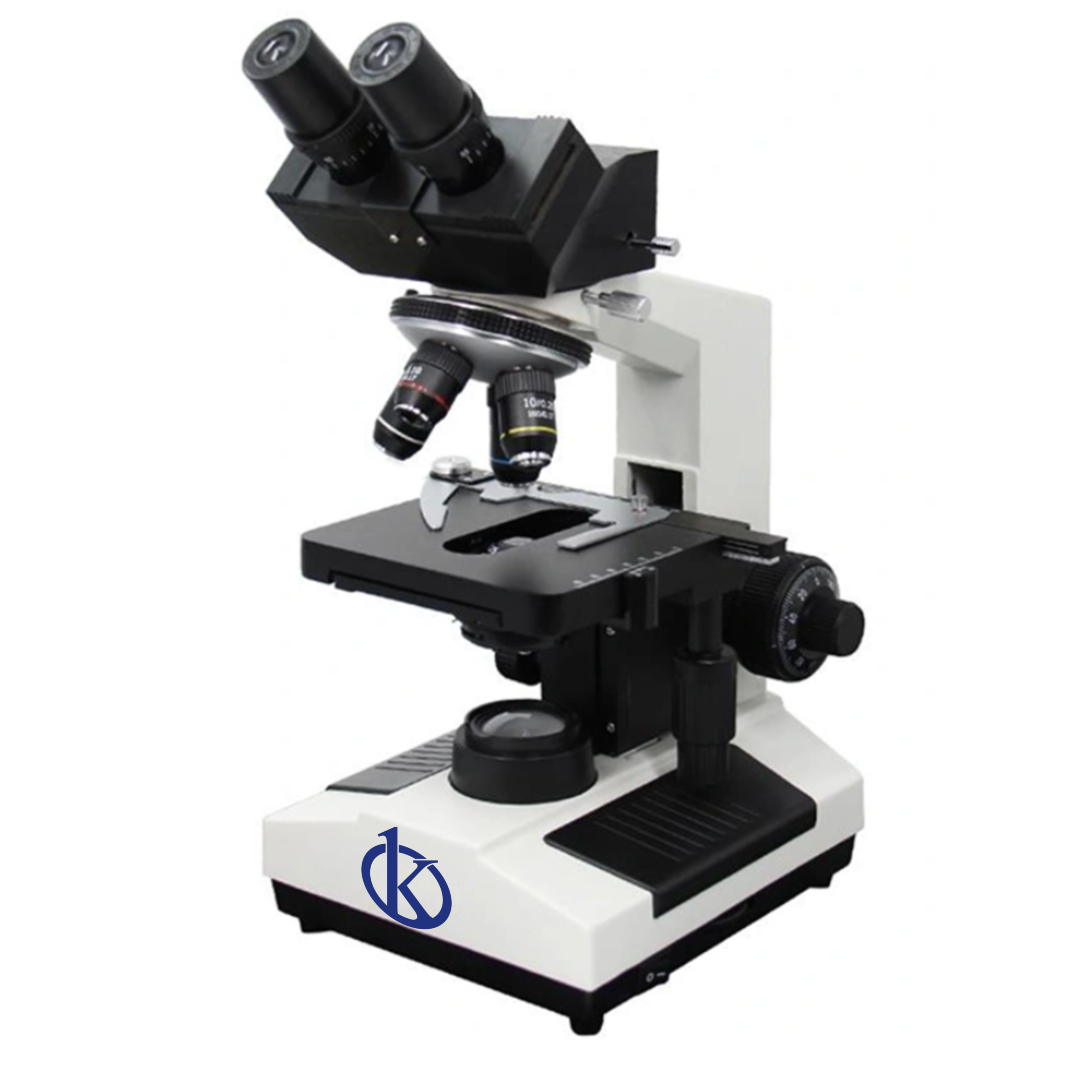

Laboratory Biological Microscope YR06666

The YR06666 is a high-precision laboratory biological microscope designed to meet the rigorous demands of clinical diagnostics and educational environments. This versatile instrument is available in monocular, binocular, or trinocular configurations, making it adaptable to any professional or academic requirement.It is the preferred tool for medical students, biologists, and laboratory technicians who need a robust device with superior achromatic optics. Its adjustable LED illumination system ensures bright, high-contrast images at magnifications of up to 1600x.

 Design and Technology (Functionality)

This microscope incorporates advanced technical features to enhance accuracy and ease of use in daily work:

• Achromatic Optical System: Equipped with 4x, 10x, 40x (S), and 100x (S, Oil) objectives that significantly reduce chromatic aberrations.
• Sliding Binocular Head: Inclined at 45° with 360° rotation, offering an ergonomic working posture with an interpupillary adjustment of 55-75 mm.
• Double Layer Mechanical Stage: 140x140 mm surface with a 50x75 mm travel range, allowing for precise and smooth movement of specimens.
• Low-Position Coaxial Focusing: Features both coarse and fine focusing knobs with a sensitivity of 0.002 mm and tension adjustment to prevent stage drifting.
• 3W LED Illumination: Provides a cool white light with adjustable brightness, preventing sample overheating during extended observation sessions.

Frequently Asked Questions (FAQ)

Can I connect a camera for digital imaging? Yes, the trinocular models (A11.1007-17T/27T) are specifically designed for this, featuring a C-mount and digital eyepiece adapters for real-time image output.What kind of packaging is used for shipping? The standard unit comes in a carton box with custom-fitted foam protection. A professional wooden box option is also available for maximum security during transport.How do I maintain the 100x objective? Since it is an oil immersion lens, it is crucial to clean the lens with optical paper and an appropriate solvent after every use to prevent the oil from hardening and damaging the optics.

Advantages and Disadvantages

Advantages:

• High Optical Resolution: Clear and sharp images up to 1600x magnification.
• Durable Construction: Stable metal body that effectively minimizes vibrations.
• Ergonomic Design: Coaxial focusing and stage controls are positioned for maximum comfort.
• Upgrade Ready: Compatible with phase contrast, dark field, and simple polarization kits.

Disadvantages:

• Weight: At 5.0 kg (net weight), it is sturdier but less portable than basic plastic student models.
• Power Requirement: Requires a steady electrical connection for the LED illumination.

Field Use and Recommendations

The YR06666 is ideal for clinical laboratories, secondary schools, and universities. It is highly recommended for cell counting, bacterial observation, blood analysis, and histological sectioning.Professional Tip: To extend the life of the focusing system, always use the stage’s upper limit stopper to prevent the objectives from making contact with the slide, especially when using the 100x oil objective.

Technical Specifications

Feature	Parameters
Model No.	YR06666
Video adapter	C-Mount 1.0x; 23.2 mm digital eyepiece
Power supply type	AC 110V-240V
Transmitted Light	LED, adjustable brightness; mirror
Light source type	LED; Mirror
Condenser	Blue, Yellow, Green Filter
Condenser NA	1.25
Condenser type	Abbe
Condenser features	Filter holder; Iris diaphragm; Rack and pinion
Focus scale	0.002 mm
Focus type	Coaxial Coarse and Fine
Focus functions	Adjustable tension; Safety limit lock ring
Mechanical stage travel	50x75mm, 0.1mm Precision
Working stage size	140x140mm
Working stage type	2 mechanical layers
Working stage features	Double slide holder; Size ≥140x140mm
Objective	Achromatic: 4x/0.1 (FOV 25mm); 10x/0.25 (FOV 11mm); 40x/0.6 (S, FOV 3.8mm); 100x/1.25 (S, Oil, WD 0.1mm)
Objective type	Achromatic
Nosepiece holes	4 holes
Nosepiece features	Outward (External)
Eyepiece	WF10x/18mm (2pcs); WF16x/11mm (2pcs)
Eyepiece diameter	23.2 mm
Head specification	Black color
Head rotation	360° head rotation
Head inclination	45°
Head type	Dual view
Standard magnification	40x-1600x
Optical system	Achromatic
Upgrade function	BF+PH+DF+PL+FL
Standard function	BF (Brightfield)
Dimension	330 x 280 x 430
Weight	6.5 Kg
New product year	Year 2022
