Pulsed Xenon lamp Benchtop Spectrophotometer YR05474
Pulsed Xenon lamp Benchtop Spectrophotometer YR05474 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

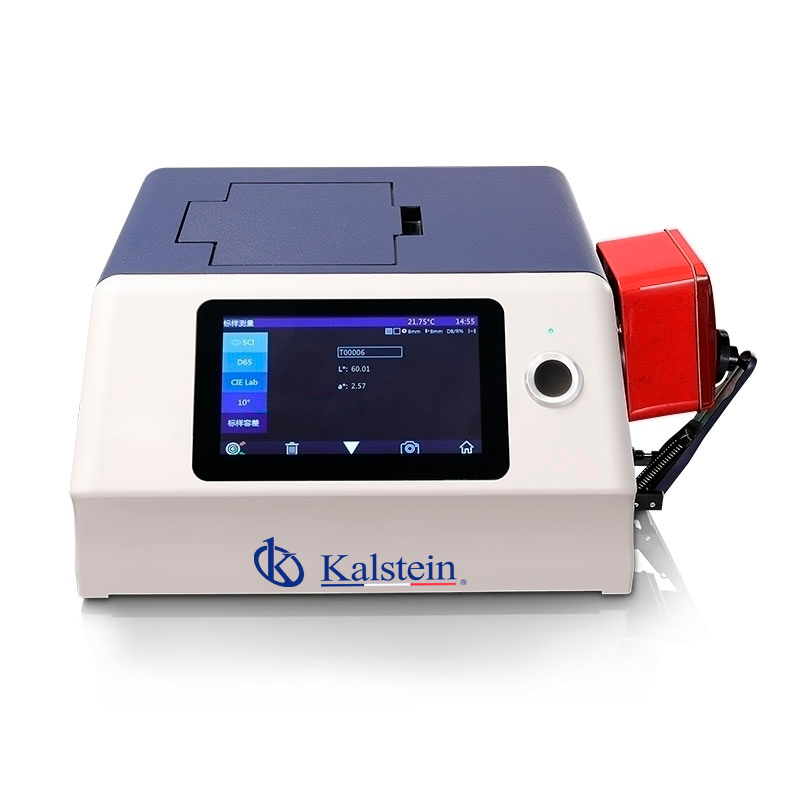

The Pulsed Xenon Lamp Benchtop Spectrophotometer YR05474 is an advanced tool designed by Kalstein for precise color analysis in both laboratory and industrial settings. Equipped with a 7-inch TFT touchscreen, this spectrophotometer offers user-friendly navigation and configuration. It features d/8 and d/0 optical geometries, allowing measurements on a range of materials from opaque solids to translucent liquids. Its cutting-edge pulsed xenon lamp system, dual-array CMOS sensor, and customizable apertures ensure high precision and stability even under intensive use. Additionally, it supports data storage for up to 40,000 records and includes sophisticated PC software for comprehensive data analysis.
Market Price
The YR05474 spectrophotometer is a cost-effective solution in its category, with market prices generally ranging from $14,200 to $15,000 USD. This makes it a competitive option, especially for industries that demand precise color control, such as plastics, inks, food, and cosmetics. Discover how this equipment can enhance your quality control processes by obtaining a personalized quote on Kalstein Plus today.
Frequently Asked Questions
- Can the YR05474 be used with both translucent and opaque samples?
Yes, it is designed to effectively measure both types of materials, accommodating diverse testing needs. - How much data can it store?
It stores up to 40,000 results, ensuring comprehensive record-keeping for detailed analysis. - Are there options to adjust the measurement aperture?
Yes, the device offers three adjustable apertures for versatility in measuring different sample types.
Advantages and Disadvantages
The YR05474 stands out for its temperature compensation system, ergonomic design, and capability to work with LED and UV sources. These features make it an invaluable tool for high-demand environments. However, to maintain its high level of accuracy, periodic calibration might be necessary in settings of frequent use.
Field Use
This spectrophotometer proves essential in quality control and product development labs across industries like automotive, cosmetics, medical, and food. Its dual capability to measure reflectance and transmittance across various material types optimizes quality assurance processes, ensuring consistent production standards.
Recommendations
For optimal performance, it's recommended to regularly calibrate the YR05474 and maintain it in a clean environment. Adjusting the measurement aperture to suit the sample and specific testing conditions will enhance accuracy and consistency. Request your tailored quote now through Kalstein Plus and see how the YR05474 can transform your color analysis and quality control operations.
Technical Specifications
| Model | YR05474 |
| Optical Geometry | Reflectance: d/8 (SCI⪰ Include UV/Exclude UV) |
| Transmittance: d/0 (SCI⪰ Include UV/Exclude UV); Haze(ASTM D1003) | |
| Conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7 | |
| Integrating Sphere Size | Φ 154mm |
| Light Source Device | 360nm-780nm Xenon Lamp, 400nm cut-off Xenon Lamp,420nm cut-off Xenon Lamp,460nm cut-off Xenon Lamp |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 360-780nm |
| Wavelength Pitch | 10nm |
| Semiband Width | 5nm |
| Reflectance Range | 0~200% |
| Measuring Aperture | Reflective : Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; |
| Transmissive : Φ30mm/Φ25mm;Remark: 1. Automatic identification of switch caliber 2. Customized Configuration caliber and lens position | |
| Specular Component | Reflectance: SCI&SCE |
| Transmittance: SCI&SCE | |
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB, Munsell, s-RGB, HunterLab, DIN, βxy |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter), DIN ΔE99 |
| Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), |
| YI (ASTM D1925, ASTM 313), | |
| MI (Metamerism Index), | |
| Staining Fastness, Color Fastness, Color Strength, Opacity, | |
| Gardner Index, Pt-Co Index, 555 Index, Haze(ASTM D1003) | |
| Observer Angle | 2° & 10° |
| Illuminants | D65, A, C, UV, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 |
| Displayed Data | Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset |
| Measuring Time | About 2.4s (Measure SCI & SCE about 5s) |
| Repeatability | Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.05%) |
| Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.012 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.06%) | |
| Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.015 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Inter-instrument Error | Φ25.4mm/SCI, Within ΔE*ab 0.12 |
| (Average for 12 BCRA Series II color tiles) | |
| Size | 370×300×200mm |
| Weight | About 9.6kg |
| Power Supply | DC 24V, 3A Power Adapter |
| Light Source Device Life | 5 years, more than 3 million times measurements. |
| Display | 7" TFT Capacitive Screen-touch Display |
| Data Port | USB & Bluetooth & Print serial port |
| Data Storage | Standard 5000 Pcs, Sample 40000 Pcs |
| Language | Simplified Chinese, Traditional Chinese, English, (Optional Customized German, French and Spanish) |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation) |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |

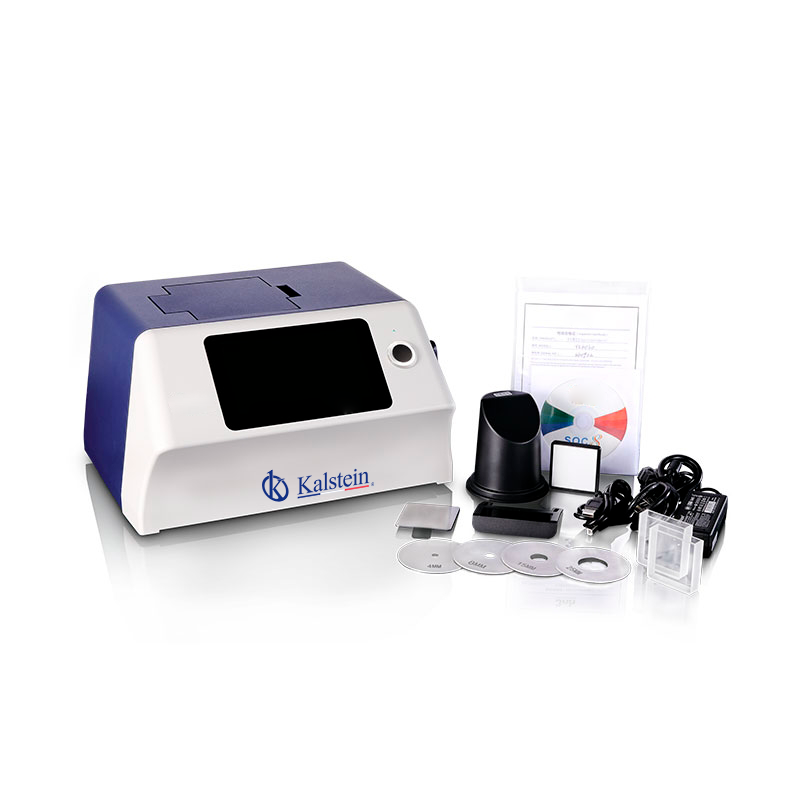

| Standard Accessory | Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 15 caliber, 8 caliber, 4 caliber,Transmissive Test Component |
| Optional Accessory | Micro-printer, Micro Aperture(4mm) transmission test clamp component, Instrument inversion components |
| Notes: The specifications are subject to change without notice. | |
Specifiche tecniche
| Dimensioni | L 51 × W 45 × H 33 cm |
|---|---|
| Peso | 12.5 kg |
| Produttore | Kalstein |
