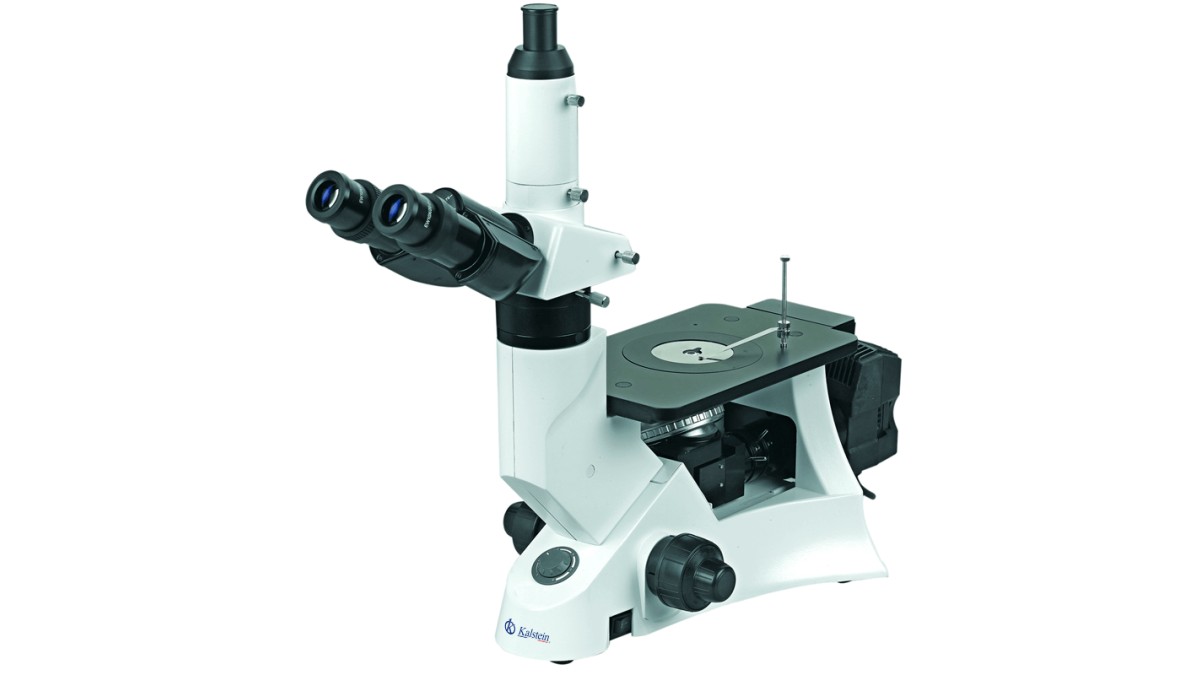

Technical Performance and Safety of the Trinocular Microscope YR0258
Product Description
The Trinocular Microscope YR0258 is equipped with an infinite optical system that delivers exceptional optical functionality. Its stable support structure, advanced stage design, and comfortable operation make it widely utilized in institutions and laboratories for observing and identifying the structure of various metals and alloys.
| Feature | Details |
|---|---|
| Model | YR0258 |
| Viewing Head | Trinocular head inclined at 30°, interpupillary distance 48-75 mm |
| Eyepiece | Extra wide field high point eyepiece EW10 × / 20 |
| Objective Lens | Achromatic plan infinite objectives: 4 × / 0.1, 10 × / 0.25, 20 × / 0.40, 40 × / 0.60, 50 × / 0.75 (optional), 80 × / 0.90 (optional) |
| Revolver | Five-position revolving nosepiece |
| Stage | Flat stage and optional mechanical stage, coaxial XY control, movement range 120 × 78 mm |
| Focusing | Coaxial coarse and fine adjustment with vertical objective movement, coarse travel 37.7 mm per rotation, fine travel 0.2 mm per rotation |
| Kohler Illumination | Halogen lamp 6V / 30W |
| Filters | Blue, yellow, green, and frosted glass |
| Polarization Accessory | Yes |
| Photo Attachment | Optional |
| Video Adapter | C mount video adapter (optional) |
Market Price
The current market price for the Trinocular Microscope YR0258 is approximately USD 1117.00. This price reflects the advanced technology and robust construction of the microscope, making it a valuable investment for laboratories and research institutions.
Frequently Asked Questions
What are the main features of the YR0258 microscope?
The YR0258 microscope features an infinite optical system, a trinocular viewing head inclined at 30°, and a variety of objective lenses, which enhance its performance in optical applications.
How does the focusing mechanism work?
The focusing mechanism includes coaxial coarse and fine adjustments, allowing for precise vertical movement of the objective with a coarse travel of 37.7 mm per rotation and fine travel of 0.2 mm per rotation.
What type of illumination does the YR0258 use?
The microscope utilizes Kohler illumination with a halogen lamp rated at 6V/30W, ensuring optimal lighting conditions for clear observation.
Can the YR0258 be used for educational purposes?
Yes, the YR0258 is widely used in educational institutions for teaching microscopy techniques and for observing various materials due to its excellent optical performance and user-friendly design.
Is there an option for video recording with this microscope?
Yes, the YR0258 has an optional C mount video adapter, allowing for video recording of observations, which can be beneficial for presentations and documentation.
What is the warranty period for the YR0258 microscope?
The warranty period varies by retailer but typically covers the microscope for one year against manufacturing defects. Always check with the seller for specific warranty details.
Where can I request a quote for the YR0258 microscope?
You can request a detailed quote for the YR0258 microscope through the appropriate channels offered by the manufacturer or authorized distributors.
Pros and Cons
Pros
- High-quality optical system providing clear and precise images.
- Stable construction suitable for extensive laboratory use.
- Versatile with multiple objective lenses available.
- Coaxial focusing mechanism for accurate adjustments.
- Optional attachments for video recording and photo documentation.
Cons
- Initial cost may be high for smaller institutions.
- Optional components may increase overall price.
- Requires regular maintenance for optimal performance.
Field Usage
The Trinocular Microscope YR0258 is utilized across various fields including materials science, biology, and metal analysis. Its precise optical capabilities and comfortable use make it ideal for researchers who require detailed observations of materials and biological samples.
Recommendations
For those considering the YR0258, it is recommended to pair it with high-quality slides and coverslips to maximize performance. Regular maintenance and calibration will also enhance longevity and accuracy in results. Additionally, utilizing the polarizing accessory can provide greater insights during metallurgical examinations.
