Vertical Laboratory Freeze Dryers: Common Errors and How to Avoid Them in Daily Operation
What is it used for in 2026
In 2026, Vertical Laboratory Freeze Dryers are extensively utilized across various sectors, including pharmaceuticals, biotechnology, food preservation, and research laboratories. These devices are primarily used for the lyophilization process, which involves the removal of moisture from materials while maintaining their structural integrity and biochemical properties. By transforming a liquid into a solid state without passing through a liquid phase, freeze dryers preserve the original characteristics of the substances being processed, making them suitable for long-term storage.
History and evolution of the technology
The development of freeze-drying technology began in the early 20th century, initially focused on the preservation of biological materials. Over the decades, enhancements in vacuum technology, refrigeration, and control systems have significantly improved the efficiency and effectiveness of the lyophilization process. By the 1980s, the introduction of digital controls and automated systems allowed for greater precision in temperature and pressure management, paving the way for today's advanced Vertical Laboratory Freeze Dryers, designed for various laboratory applications.
How to use it step by step
- Preparation: Begin by preparing the samples you intend to lyophilize. Ensure they are in appropriate containers that can withstand freezing and vacuum conditions.
- Loading: Carefully place the samples onto the trays of the freeze dryer, avoiding overloading to allow for proper airflow.
- Setting Parameters: Configure the freeze dryer by setting the desired temperature and vacuum levels based on the sample specifications.
- Starting the Process: Initiate the freeze-drying cycle. The freeze dryer will typically freeze the samples first, followed by the sublimation phase where moisture is removed.
- Monitoring: Continuously monitor the process through the control panel to ensure parameters remain within the set limits.
- Completion: Once the process is complete, carefully remove the dried samples, ensuring they are sealed or stored properly to prevent moisture absorption.
Best techniques and protocols
For optimal results with Vertical Laboratory Freeze Dryers, consider the following techniques and protocols:
- Sample Preparation: Ensure that samples are pre-frozen to enhance the efficiency of the lyophilization process.
- Batch Size: Maintain an appropriate batch size to ensure uniform temperature and pressure conditions throughout the process.
- Monitoring: Utilize advanced monitoring tools to track temperature and pressure during all phases of the freeze-drying process.
- Documentation: Keep detailed logs of the freeze-drying processes for future reference and quality control purposes.
Practical applications by laboratory type
Vertical Laboratory Freeze Dryers are applicable in various laboratory settings:
- Pharmaceutical Labs: For the preservation of vaccines and sensitive biological samples.
- Food Industry: For lyophilizing fruits and vegetables to maintain flavor and nutrition.
- Research Laboratories: For preparing biological specimens for long-term storage and analysis.
Regulations, standards and certifications
In 2026, laboratories using Vertical Laboratory Freeze Dryers must adhere to strict regulatory standards that ensure safety and efficacy. Compliance with Good Manufacturing Practice (GMP) guidelines, as well as certifications from relevant authorities, is essential for maintaining quality and operational integrity. Laboratories should regularly review these regulations to ensure all processes align with current standards.
Comparison with alternative technologies
While vertical freeze dryers are widely used, alternative technologies include spray drying and vacuum drying. Freeze drying offers superior preservation quality, especially for heat-sensitive materials, compared to spray drying, which may result in loss of volatile compounds. Vacuum drying, while faster, does not provide the same level of product stability as freeze drying. Therefore, the choice of technology depends on the specific requirements of the product being processed.
Comparison of available models
| Model | Best for | Key specs | Recommended use case |
|---|---|---|---|

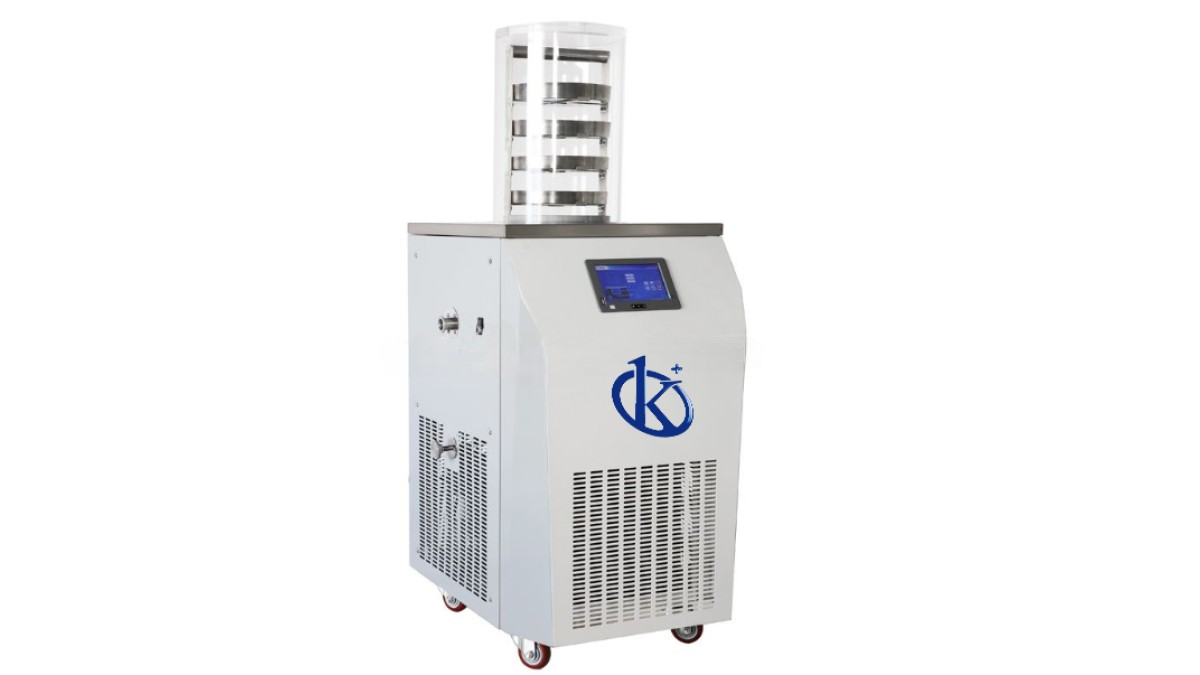

| YR05198 | General lab use | 0.18m²/0.27m², 1800W, ≤5pa vacuum | Routine lyophilization in labs |
| YR05199 | General lab use | 0.09m², 1800W, ≤5pa vacuum | Small batch freeze drying |
| YR05200 | General lab use | 0.18m²/0.27m², 1800W, ≤5pa vacuum | Routine processes requiring larger capacity |
| YR05201 | General lab use | 0.09m², 1800W, ≤5pa vacuum | Small scale research projects |
| YR05985-1 | Fruits and vegetables | 0.7m², 8L/S pump rate | Food preservation |
| YR05985-2 | Fruits and vegetables | 1.04m², 15L/S pump rate | High-volume food production |
Common mistakes and how to avoid them
Some frequent errors during the operation of Vertical Laboratory Freeze Dryers include:
- Overloading the freeze dryer: This can prevent proper airflow and temperature uniformity. Always adhere to the manufacturer's loading guidelines.
- Inadequate pre-freezing: Not freezing samples adequately can lead to inefficient drying. Ensure samples are frozen to a suitable temperature before beginning the cycle.
- Ignoring monitoring parameters: Failing to monitor temperature and vacuum can result in suboptimal results. Use automated monitoring systems when possible.
- Improper storage of dried products: Ensure all lyophilized materials are sealed to avoid moisture reabsorption.
Maintenance, calibration and good practices 2026
Regular maintenance of Vertical Laboratory Freeze Dryers is crucial for optimal performance. This includes:
- Routine Cleaning: Clean the interior and exterior surfaces of the device to prevent contamination.
- Calibration: Schedule periodic calibration of temperature and vacuum sensors to ensure accuracy.
- Component Inspection: Regularly check seals, gaskets, and other parts for wear and tear.
Cost-benefit analysis 2026
Investing in Vertical Laboratory Freeze Dryers can yield significant benefits. While the initial cost may be substantial, the long-term savings from reduced waste, increased efficiency in sample preservation, and enhanced product quality are considerable. Laboratories that utilize these devices can expect improved operational efficiency and a better return on investment through the increased shelf-life of their products.
Frequently asked questions
What should I consider when choosing a freeze dryer model?
Consider factors such as the volume of samples you'll be processing, the specific requirements of your materials, and your budget. Ensure the model you select meets your laboratory's capacity and operational needs.
How long does the freeze-drying process typically take?
The duration of the freeze-drying process can vary depending on the type of material and the quantity being processed. Generally, it can take anywhere from 24 hours to several days to complete.
Can I lyophilize different types of samples in the same cycle?
It is not advisable to lyophilize different materials in the same cycle, as varying compositions can lead to inconsistent drying times and potential contamination.
How do I know if my samples are fully dried?
Monitoring the temperature and pressure throughout the process can help determine when the samples are fully dried. Additionally, visual inspection and weight checks can indicate whether residual moisture remains.
What maintenance is required for a freeze dryer?
Regular maintenance includes cleaning, calibration of sensors, and inspection of components. Following the manufacturer's guidelines for maintenance is crucial for optimal performance.
Can freeze-dried samples be restored to their original state?
Yes, freeze-dried samples can typically be restored to their original state by rehydrating them with water, given that the lyophilization process was performed correctly.
How can I ensure the quality of my freeze-dried products?
To ensure quality, follow best practices for sample preparation, monitor process parameters closely, and store lyophilized products in moisture-proof containers.
