Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788
Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.

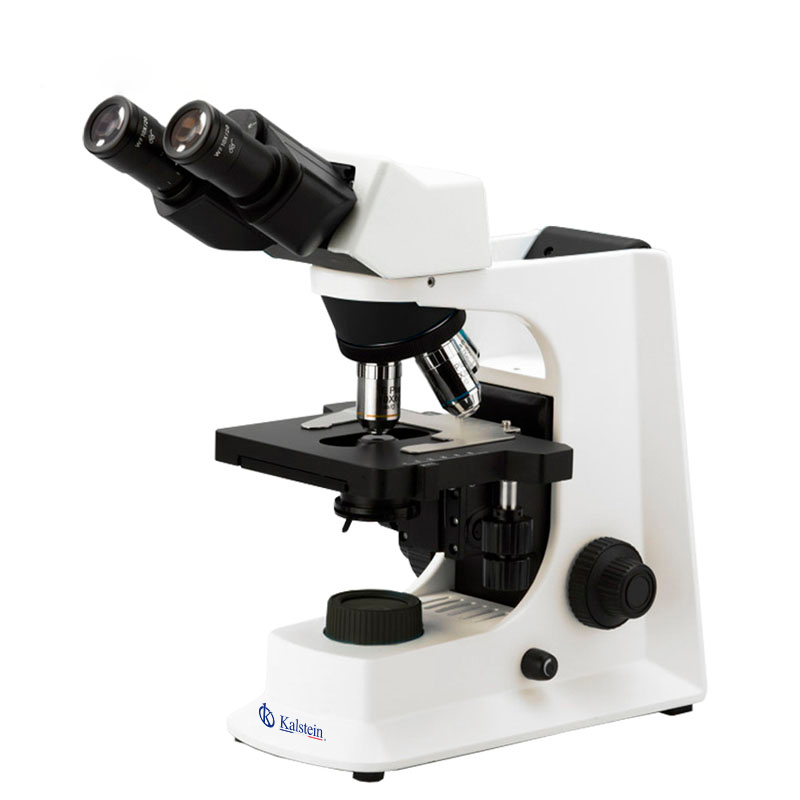

The Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788 stands out with its advanced optical system, providing high-quality imaging for professional laboratory environments. Featuring a Seidentopf binocular head that's inclined at 30° and rotatable 360°, it offers a customizable user experience regardless of your seating position. The microscope is equipped with four objective sets, including Achromatic, Plan, Infinity E-Plan, and Infinity Plan, ensuring versatile applications for various research needs. The mechanical stage, with dimensions of 145 mm x 140 mm and smooth travel, allows precision and accuracy in specimen examination.
Market Pricing
The pricing for advanced biological microscopes like the YR05787 and YR05788 models generally ranges between 900 USD to 1700 USD, depending on the brand, specifications, and additional accessories. Although these microscopes are high in price, they offer exceptional quality and reliability for laboratory applications.
Frequently Asked Questions
- What are the benefits of an Infinity Plan Objective? These objectives reduce optical aberrations, providing sharper and clearer images, essential for detailed biological studies.
- Is the microscope suitable for educational purposes? Yes, it is suitable for both professional laboratory work and academic purposes, providing students and researchers with reliable imaging.
- Does it include illumination features for low light conditions? Yes, it is equipped with a 3W-LED illumination system that ensures bright and clear viewing under various lighting conditions.
Advantages and Disadvantages
Advantages:
- Highly adaptable with various objective lenses for specialized applications.
- 360° rotatable head for user comfort and flexibility.
- Durable construction suitable for extensive laboratory use.
- The advanced features could present a steeper learning curve for beginners.
- Higher initial investment compared to basic models.
Field Usage
In practical scenarios, these microscopes are indispensable for tasks requiring precision, such as identifying microbiological samples, studying cell structures, and conducting meticulous biological research. Their robust optical systems ensure scientists can view the minutest details with confidence.
Recommendations
For optimal performance, ensure the microscope is regularly cleaned and serviced. When changing lenses, handle them carefully to avoid any damage to the optics. Utilize the available filters for enhanced contrast during specific studies, and store the microscope in a dust-free environment when not in use to maintain its longevity.
Features
- Head: Seidentopf Binocular Head, Inclined 30°, Rotatable 360°
- Nosepiece: Quadruple, Backward
- Objectives: Infinity Plan 2.5x, 4x, 10x, 40x, 100x
- Illumination: 3W-LED Illumination System
- Condenser: Abbe Condenser N.A.1.25, Iris Diaphragm
Technical Specifications
| Model | Cata. No. | YR05787 | YR05788 | |

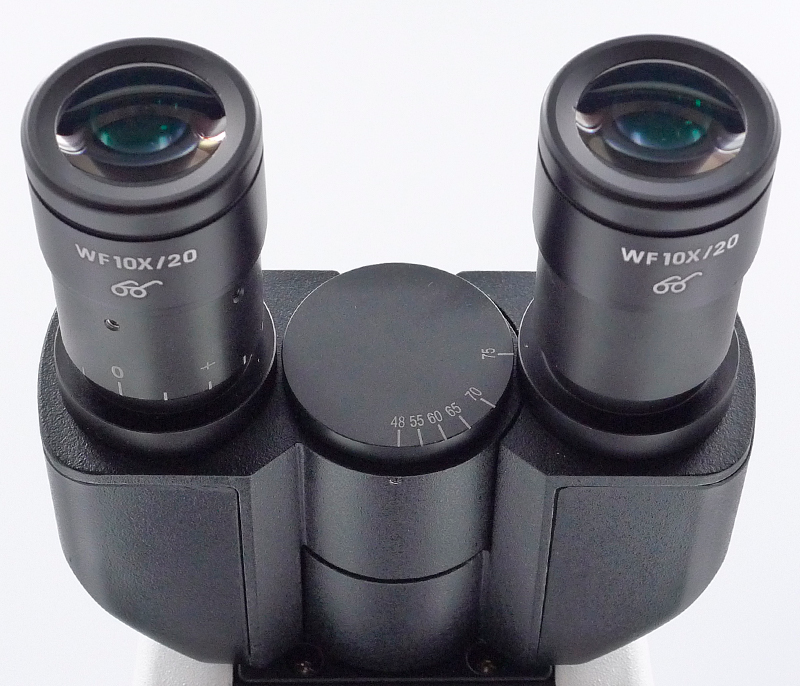

| Head | Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm | YR05788-op1 | ● | ○ |
| Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20:E80 | YR05788-op2 | ○ | ● | |
| WF10X/20mm (High Eyepoint) | YR05788-op3 | ●● | ●● | |
| Nosepiece | Quadruple, Backward | YR05788-op4 | ● | ● |
| Quintuple, Backward | YR05788-op5 | ○ | ○ | |

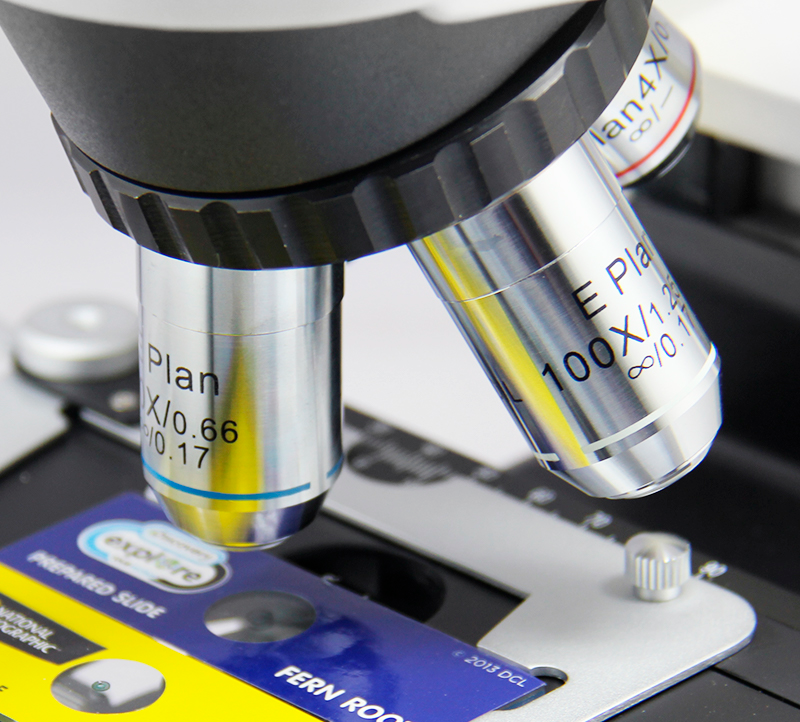

| Infinity Plan Objectives | PLAN 2.5x/0.07,W.D.=8.47mm | YR05788-op6 | ○ | ○ |
| PLAN 4X/0.10.W.D.=12.1mm | YR05788-op7 | ● | ● | |
| PLAN 10X/0.25.W.D.=4.64mm | YR05788-op8 | ● | ● | |
| PLAN 20X/0.40(S).W.D.=2.41mm | YR05788-op9 | ○ | ○ | |
| PLAN 40X/0.66(S).W.D.=0.65mm | YR05788-op10 | ● | ● | |
| PLAN 60X/0.80(S).W.D.=0.33mm | YR05788-op11 | ○ | ○ | |
| PLAN 100X/1.25(S,Oil).W.D.=0.12mm | YR05788-op12 | ● | ● | |
| PLAN 100X/1.15(S,Water).W.D.=0.19mm | YR05788-op13 | ○ | ○ | |

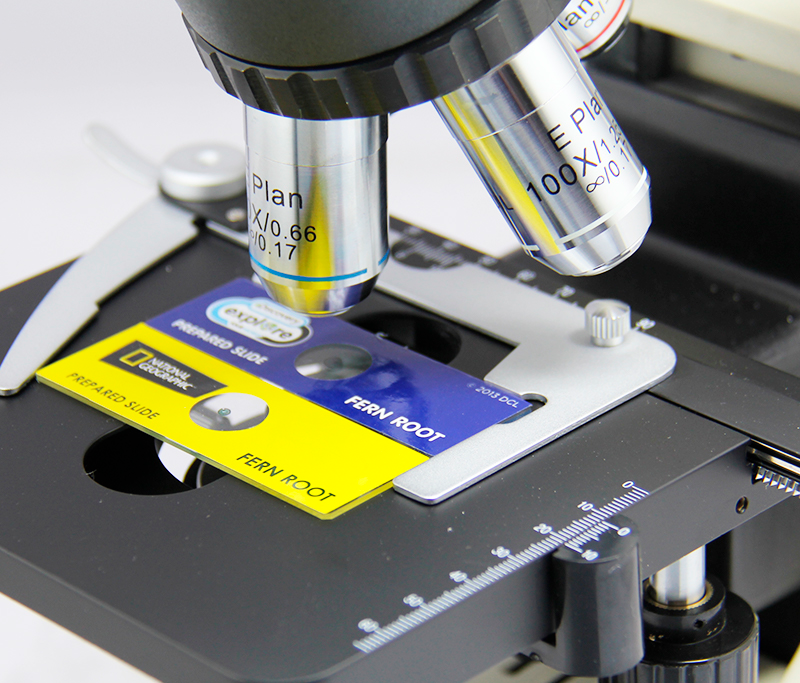

| Working Stage | Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder | YR05788-op14 | ● | ● |
| Rackless (Integrated) Stage, Size 140×135mm, | YR05788-op15 | ○ | ○ | |
| Travel Range 75×35mm, Double Slide Holder | - | |||

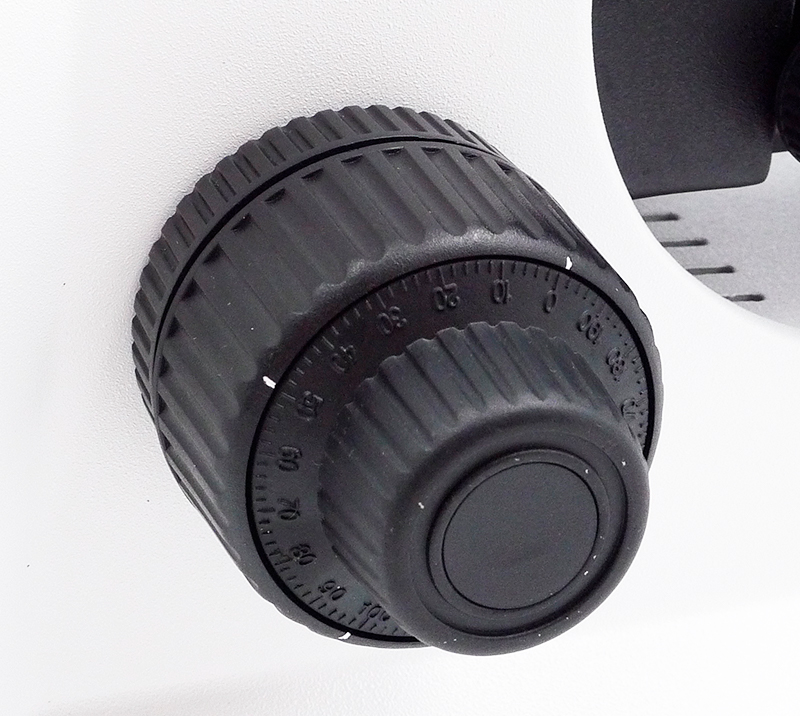

| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division | YR05788-op16 | ● | ● |

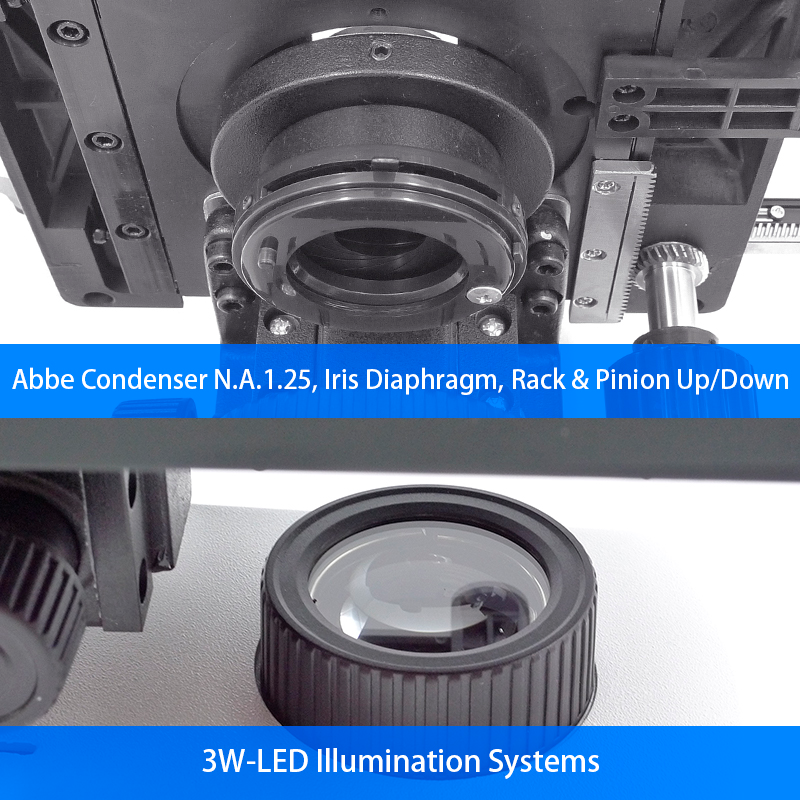

| Condenser | Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder | YR05788-op17 | ● | ● |
| Illumination | 3W-LED Illumination Systems | YR05788-op18 | ● | ● |

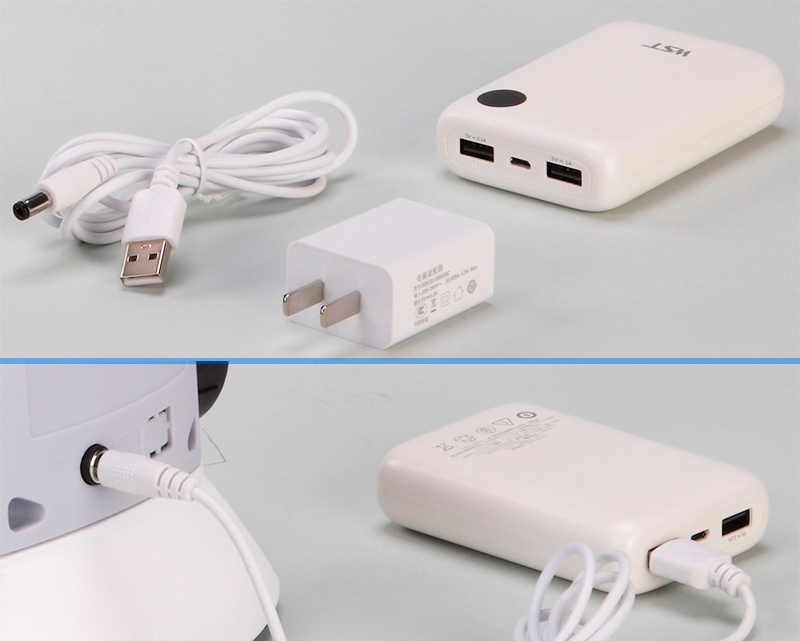

| Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | - | |||
| 12V/20W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YR05788-op20 | ○ | ○ | |
| 6V/30W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YR05788-op21 | ○ | ○ | |
| Field Diaphragm | Upgrade To Kohler Illumnation | YR05788-op22 | ○ | ○ |
| Filter | Dia.45mm, Blue | YR05788-op23 | ○ | ○ |
| Dia.45mm, Green | YR05788-op24 | ○ | ○ | |
| Dia.45mm, Yellow | YR05788-op25 | ○ | ○ | |
| Dark Field | Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective | YR05788-op26 | ○ | ○ |
| Polarizing | Analyzer + Polarizer Set | YR05788-op27 | ○ | ○ |
| Phase Contrast | Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op28 | ○ | ○ |
| Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op29 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op30 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op31 | ○ | ○ | |
| Turret Phase Contrast Attachment | YR05788-op32 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter | - | |||
| Adapter | C-Mount 0.5x, Focus Adjustable | YR05788-op33 | ○ | ○ |
| C-Mount 0.75x, Focus Adjustable | YR05788-op34 | ○ | ○ | |
| Mirror | Reflecting Mirror & Holder | YR05788-op35 | ○ | ○ |
| Attachment | Wire Winding Device | YR05788-op36 | ○ | ○ |
| Package | Carton Size 390×280×450mm, 1 Unit/Ctn | |||
| Weight | Gross Weight: 7.5 kgs, Net Weight: 6.5 kgs | |||
| Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories | ||||
Technical specifications
| Dimensions | L 39 × W 28 × H 45 cm |
|---|---|
| Weight | 8.5 kg |
| Manufacturer | Kalstein |
