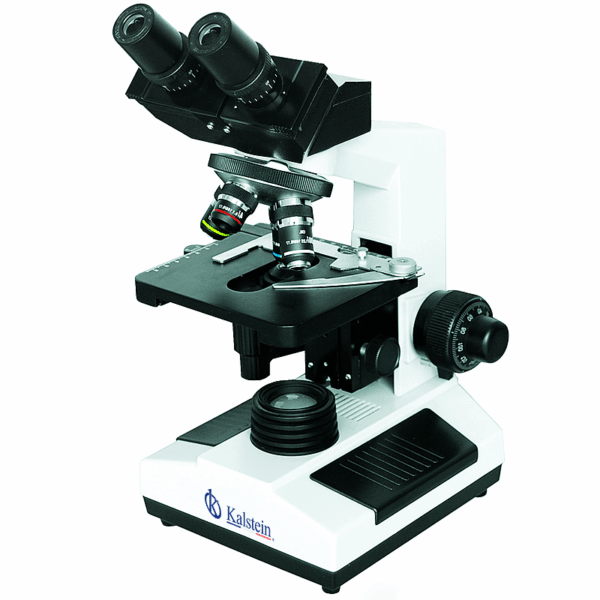

Binocular Student Biological Microscope YR0242 // YR0242-1

ManufacturerKalstein

Description

The Binocular Student Biological Microscope YR0242 is meticulously designed to offer an exceptional learning experience in biological studies. With flexible head options, including monocular, binocular, and trinocular, it caters to diverse observation needs. This microscope provides a magnification range of 40x to 1000x, facilitated by wide field eyepieces and achromatic objectives, ensuring clear and accurate image quality. Its advanced focusing system, double-layer mechanical stage, and built-in illumination further enhance its functionality, making it an ideal choice for students and professionals alike.

Market Price

The market price for high-quality biological microscopes like the Binocular Student Biological Microscope YR0242 varies, typically ranging between $400 and $1,200. This price range reflects the precision engineering and robust features this model offers, ensuring it is a worthy investment for educational institutions and curious learners.

Frequently Asked Questions

What types of observations is the YR0242 suitable for? The YR0242 is optimized for biological studies, including cellular, microbiological, and small organism observations.

Does the microscope come with built-in illumination? Yes, the YR0242 features a built-in halogen lamp providing consistent, reliable illumination for detailed examination.

Advantages and Disadvantages

One of the main advantages of the YR0242 is its versatile design and high-quality optics, making it a valuable tool for both entry-level and advanced studies. However, its sophisticated features can pose a slight learning curve for beginners without prior microscopy experience.

Use in the Field

The Binocular Student Biological Microscope YR0242 is predominantly used in educational settings, providing students with hands-on experience in biology labs. It supports a wide range of biological applications, from studying basic plant and animal cells to more complex experiments.

Recommendations

To maximize the utility and lifespan of your YR0242 microscope, regularly clean the lenses with lens paper, keep it covered when not in use, and store it in a cool, dry environment to prevent moisture damage. Consider joining the Kalstein Plus platform to access resources and support for optimal maintenance and use.

Key Features

  • Optional Anti-Mould System Head
  • 195mm Achromatic Objectives, Mechanical Tube Length 160mm
  • WF10x/18mm, WF16x/11mm Wide Field Eyepiece
  • Monocular, Binocular, Trinocular Head Options
  • Low Position Coaxial Coarse & Fine Focus System
  • Double Layer Mechanical Stage

Technical Specifications

Model YR0242 YR0242-1
Magnification 40x~1000x
Head Sliding Binocular Head, 45° Inclined o
Sliding Binocular Head, 45° Inclined, Anti-Mould System o
Eyepiece Wide Field WF10x/18mm
Nosepiece Quadruple Nosepiece
Objective Achromatic 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil)
Stage Double Layer Mechanical Stage, 140*140mm, Mvoing Range 50*75mm
Focusing Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm, Coarse Focusing Stroke 37.7mm/Rotation, With Tension Adjustment, With Up Limit
Rubber Cover On Focusing Knob o
Condenser N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder
Filter Blue, Yellow, Green
Light Source Plan-Concave Mirror
Built-in Illumination 6V20W Halogen Lamp, 100~240V
YR0242 Biological Microscope Optional Accessories
Head Sliding Trinocular Head, 45° Inclined, Anti-Mould System YR0242-1-op1
Seidentopf Binocular Head, 30° Inclined, Anti-Mould System YR0242-1-op2
Seidentopf Trinocular Head, 30° Inclined, Anti-Mould System YR0242-1-op3
Eyepiece Wide Field Eyepiece P16x/11mm YR0242-1-op4
Nosepiece Quintuple Nosepiece YR0242-1-op5

Additional information

Weight 6,5 kg
Dimensions 32,7 × 27,3 × 42,5 cm
Model

YR0242, YR0242-1
