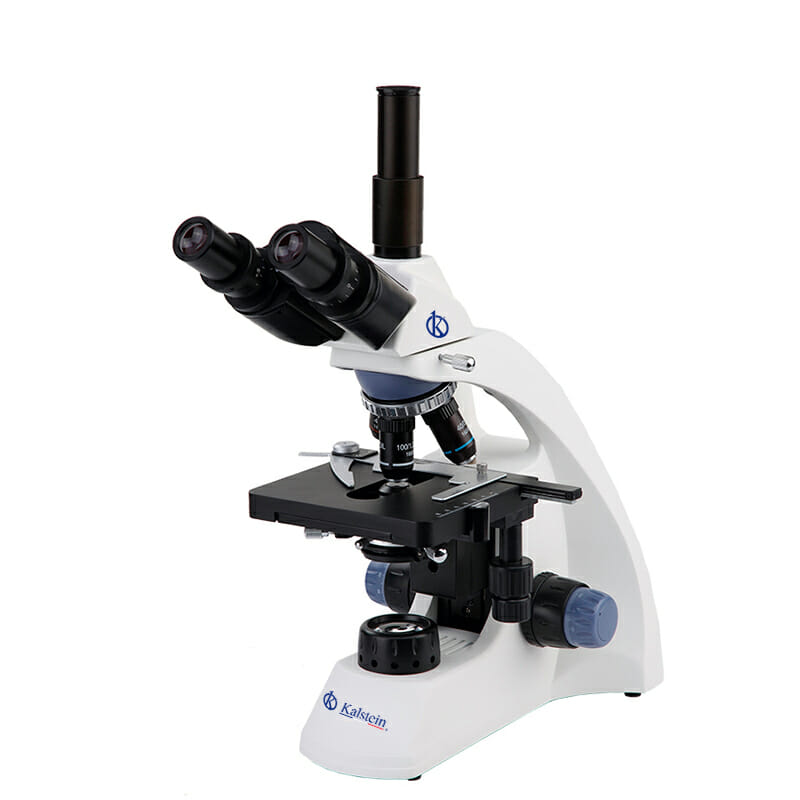

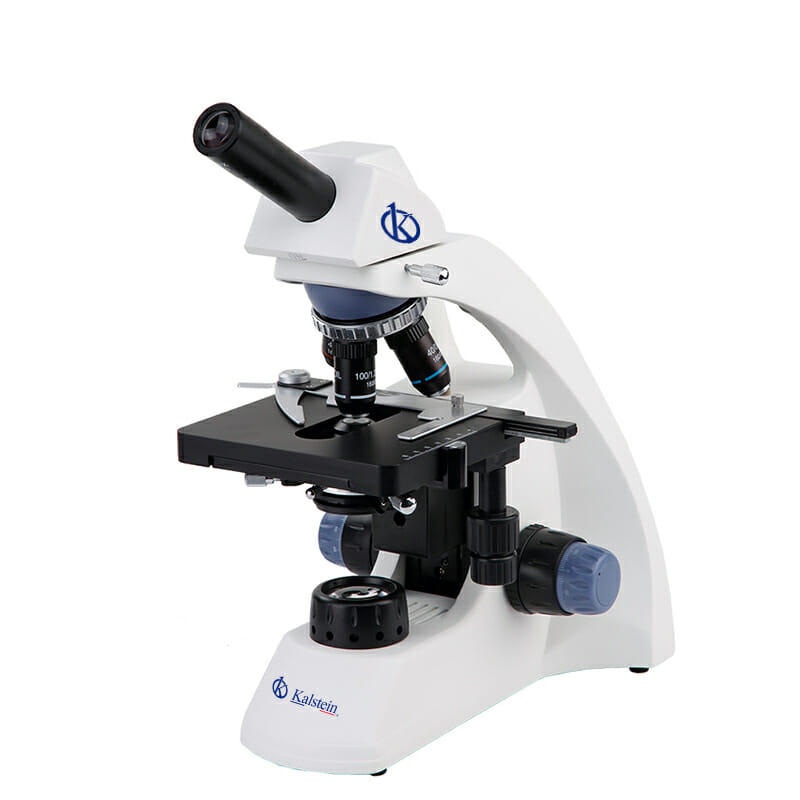

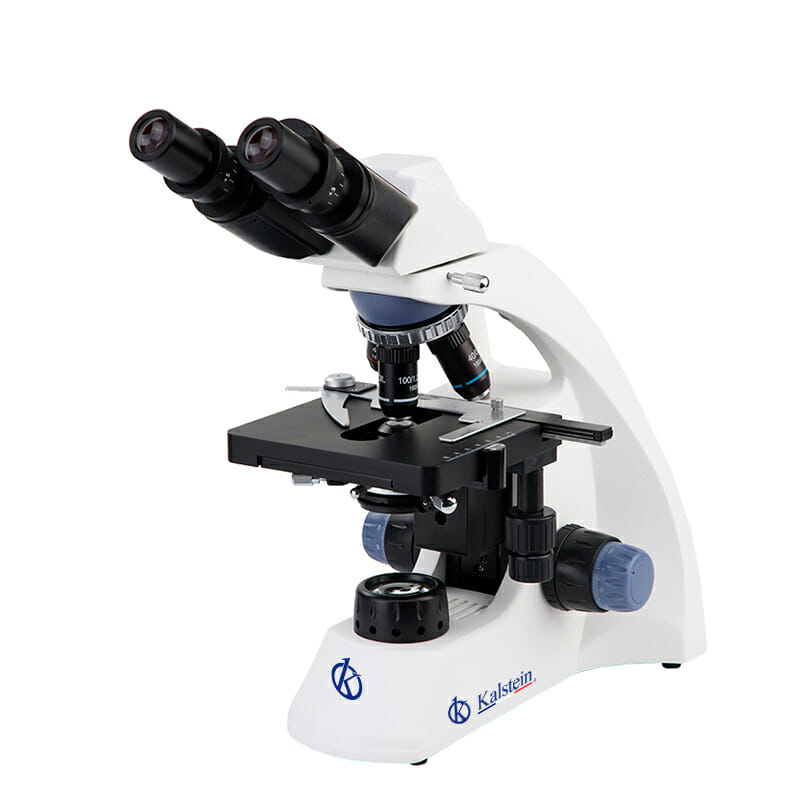

Biological Microscope YR0242-M // YR0242-T

ManufacturerKalstein

Description

The Biological Microscope YR0242-M // YR0242-T is a state-of-the-art optical device designed for precision and versatility in biological research. Featuring interchangeable monocular, binocular, trinocular, and teaching heads, this microscope offers flexibility to accommodate various observational needs. It includes a quadruple nosepiece with a precise click stop, and supports an integrated double-layer mechanical stage measuring 142×132 mm, with a movement range of 75×50 mm. Equipped with an Abbe condenser N.A.1.25, its high brightness 3W LED light source is adjustable, ensuring optimal illumination for clear imaging. The availability of infinity plan and achromatic optical systems further enhances its functionality, making it a suitable choice for both educational and professional settings.

Market Price

On the market, the average price range for biological microscopes similar to the YR0242 models typically spans from $400 to $1200, depending on the additional features and accessories included. This range provides flexibility for different budgets while ensuring quality and durability. We invite you to request a quote or generate an automatic quotation through the Kalstein Plus platform to find the best offer tailored to your needs.

Frequently Asked Questions

1. What is the maximum magnification capacity of the YR0242 microscope?
The standard magnification range is from 40x to 1000x, allowing for detailed and precise observations.

2. Are there different head attachments available?
Yes, the microscope supports monocular, binocular, trinocular, and teaching head attachments, all inclined at 30° and rotatable 360°.

Advantages and Disadvantages

Advantages: The microscope provides high precision and adaptability with its multiple head options and adjustable LED illumination. The easy-to-use focusing mechanism enhances its usability in diverse research environments.

Disadvantages: While the variety of configurations is an advantage, it may require some initial setup time to adjust the components to specific research needs.

Field Use of the Product

The Biological Microscope YR0242 models are widely used in clinical laboratories, educational institutions, and research facilities. Their robust design and versatile configurations make them ideal for both teaching and advanced research applications, such as cell biology, microbiology, and pathology.

Recommendations

For optimal maintenance, ensure regular cleaning of the lenses and mechanical parts. It is recommended to store the microscope in a dust-free environment when not in use. Regular calibration should be performed to maintain the precision and accuracy of the optical system.

Features

  • Interchangeable monocular, binocular, trinocular, and teaching heads
  • Quadruple nosepiece with precise click stop
  • Integrated double-layer mechanical stage (142×132 mm)
  • Adjustable high brightness 3W LED light source
  • Infinity plan and achromatic optical systems
  • Abbe condenser N.A.1.25 with center adjustment
  • Adjustable eyepiece tube diopter (+/-5°)

Technical Specifications

Model No. YR0242-M YR0242-B YR0242-T
Video Adapter —— C-Mount 0.3x ——
Power Supply Type AC 110V-240V ——
Transmit Light Halogen 6V20W or LED Optional
Light Source Type Halogen
Condenser N.A. 1.25
Condenser Type Abbe
Condenser Features Rack & Pinionↆ↑, Filter Holder, Center Adjustable
Focusing Scale 0.002mm
Focusing Range 36mm
Focusing Type Coaxial Coarse & Fine ——
Focusing Features Safety Stop Screw Tension Adjustable
Working Stage Moving 75*50mm
Working Stage Size 132*142mm
Working Stage Type 2 Layers Mechanical
Objective Achromatic 4x, 10x, 40x(S), 100x(O,S)
Objective Type Achromatic
Nosepiece Holes 4 Holes
Nosepiece Features Inward
Eyepiece WF10x/18mm
Eyepiece Diameter 23.2mm
Head Interpupillary 54~75mm
Head Rotation Head Rotate 360° ——
Head Inclination 30° ——
Head Type Monocular —— Seidentopf Trinocular
Standard Magnification 40x-1000x ——
Optical System Achromatic
Standard Function BF ——

Additional information

Weight 6 kg
Dimensions 34 × 25,5 × 49 cm
Model

YR0242-B, YR0242-M, YR0242-T
