Description

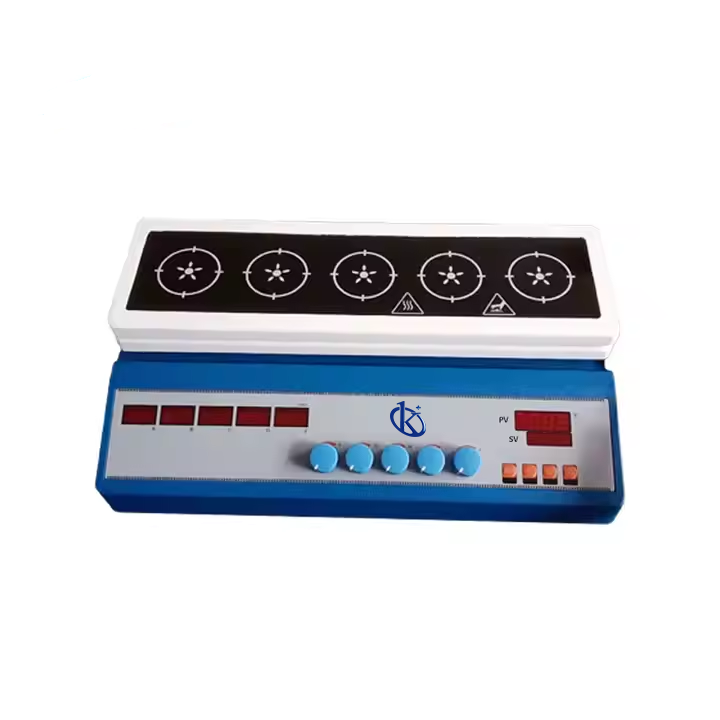

The Five – Point Magnetic Stirring Hot Plate for Laboratory YR02945 is engineered for precision in various laboratory settings, integrating both magnetic stirring and heating capabilities. This cutting-edge device is favored in both chemistry and biology labs, providing a quiet, efficient, and effective solution without the complexity of moving parts. It features a durable aluminum alloy housing and a ceramic-coated heating plate, ensuring even heat distribution and excellent corrosion resistance. With a digital display for precise control of both temperature and stirring speed, ranging from 100 to 1800 RPM and up to 380°C, this hot plate is designed to withstand intensive use, ensuring long-lasting performance even in demanding environments. Its compact design makes it easy to operate, clean, and maintain, making it an indispensable tool for any laboratory professional.
Market Price
On the market, laboratory-grade hot plates such as the Five – Point Magnetic Stirring Hot Plate for Laboratory YR02945 can be found within a typical price range of $1200 to $2000. This range reflects its advanced features and durable construction, making it a cost-effective choice for laboratories requiring reliable and precise heating and stirring equipment.
Frequently Asked Questions
What is the maximum temperature this hot plate can reach? The surface temperature can go up to 350°C.
What is the capacity of the stirrer? It is designed to handle up to 5×250 ml simultaneously.
Is the heating and stirring speed adjustable? Yes, both temperature and rotation speed are adjustable for maximum control.
Advantages and Disadvantages
Among the advantages are its compact size, ease of cleaning, and durability thanks to heat and corrosion-resistant materials. It also allows for precise control of temperature and speed, boosting its versatility. However, its advanced nature and robust capabilities are reflected in its price, which may be a consideration for laboratories with budget constraints.
Product Usage in the Field
This hot plate is ideal for conducting experiments that require consistent and precise temperature and stirring conditions. It’s particularly useful in scenarios where contamination-free conditions are necessary, as it avoids the use of lubricants and complex seals.
Recommendations
For optimal performance, it’s recommended to regularly clean the device, calibrate it as needed, and use the appropriate glassware to prevent potential spills. Always adhere to the recommended operational guidelines to extend its longevity and reliability.
Features
- Compact and simple operation
- Digital display for temperature and speed control
- Heating range up to 380°C and speed range of 100-1800 RPM
- Heat and corrosion-resistant aluminum alloy housing
- Ceramic-coated aluminum heating plate
- Protective housing design prevents liquid-induced damage
Technical Specifications
Model | YR02945 |
Temperature adjustable multipoint magnetic stirrer | |
Specification | 5 points |
Temperature | The surface temperature can be up to 350°C |
Heating area | 440 x 100 x 5mm |
Power of heating | 600W |
Temperature control type | Stepless voltage adjustable, 0~220V controlled silicon controlling |
Presion of temperature controlling | ± 5°C |
Heating wire | Cr20Ni80 |
Material | TU2 red copper |
Capacity | 5 × 250ml |
Power of the motor | 5 × 8W |
Range of speed adjustment | 0-2000 rpm |
Power supply | 220V 50HZ |
Working time | Continous |
Overal dimension | 430 × 270 × 150mm |
Packing dimension | 480 × 320 × 200mm |
Weight | 7000 ± 200g |
