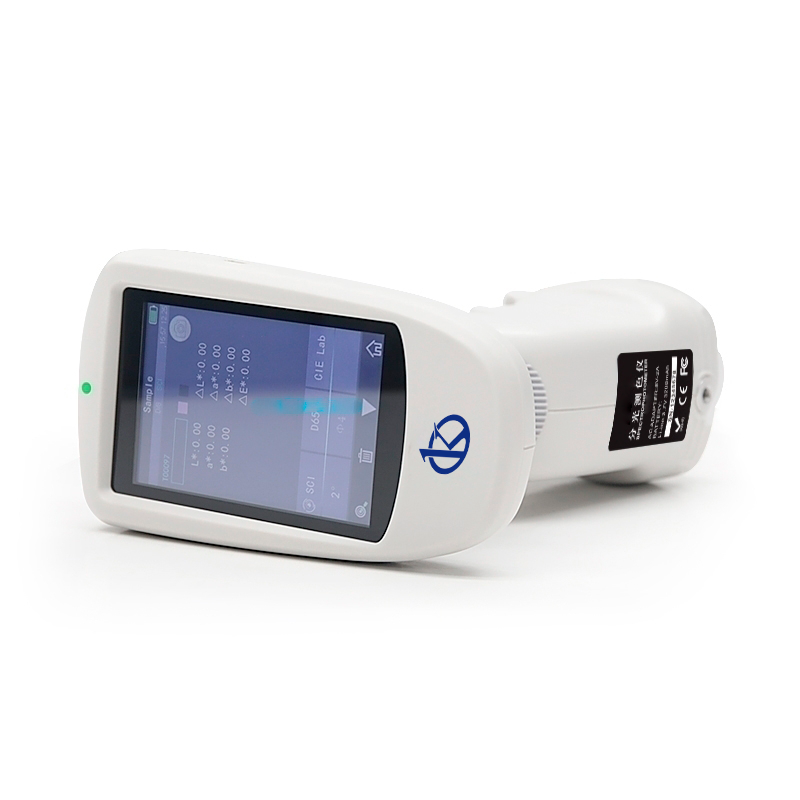

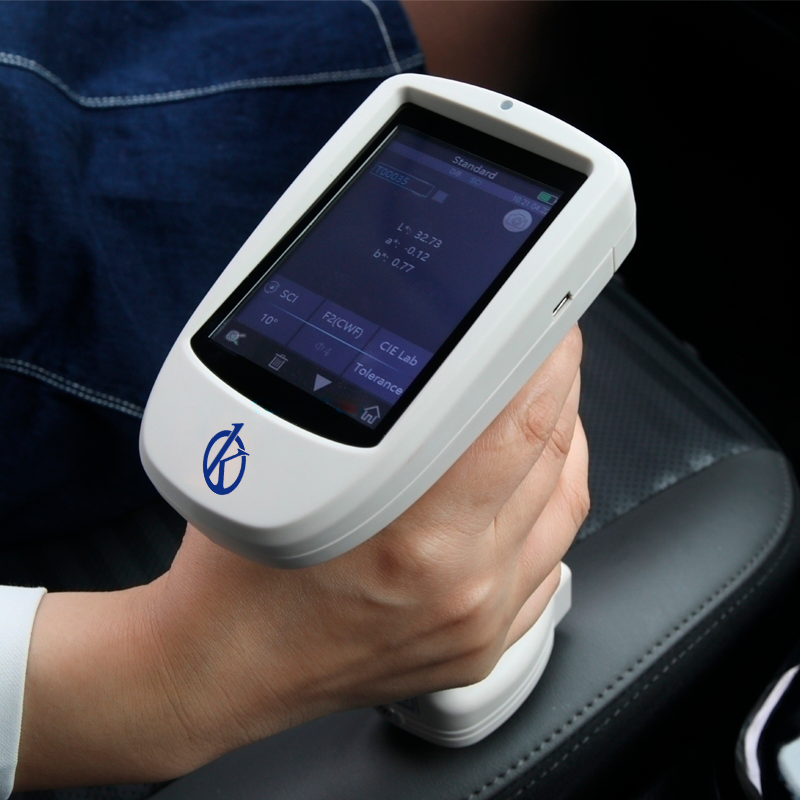

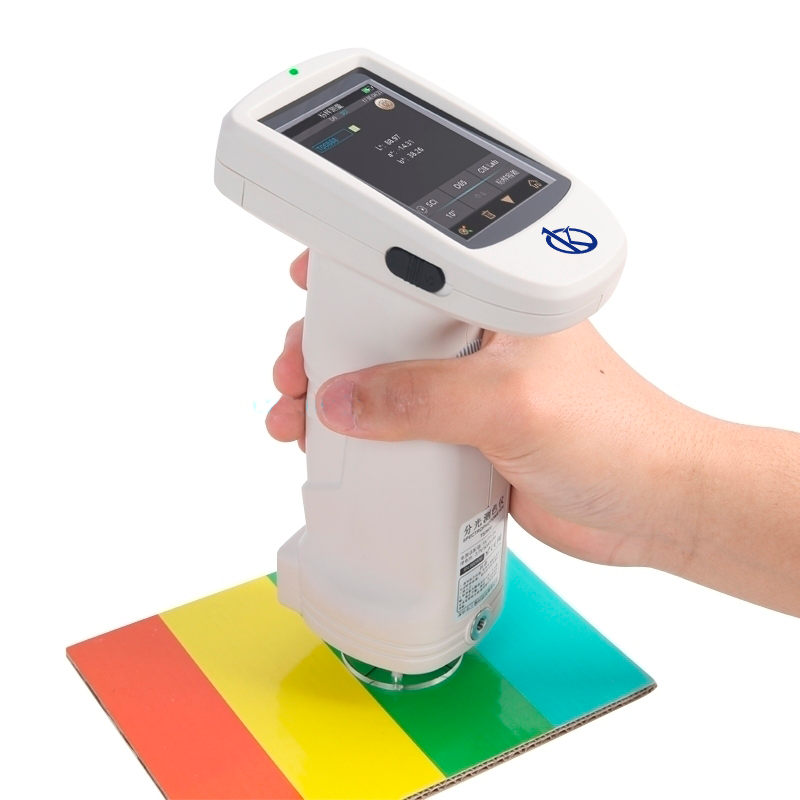

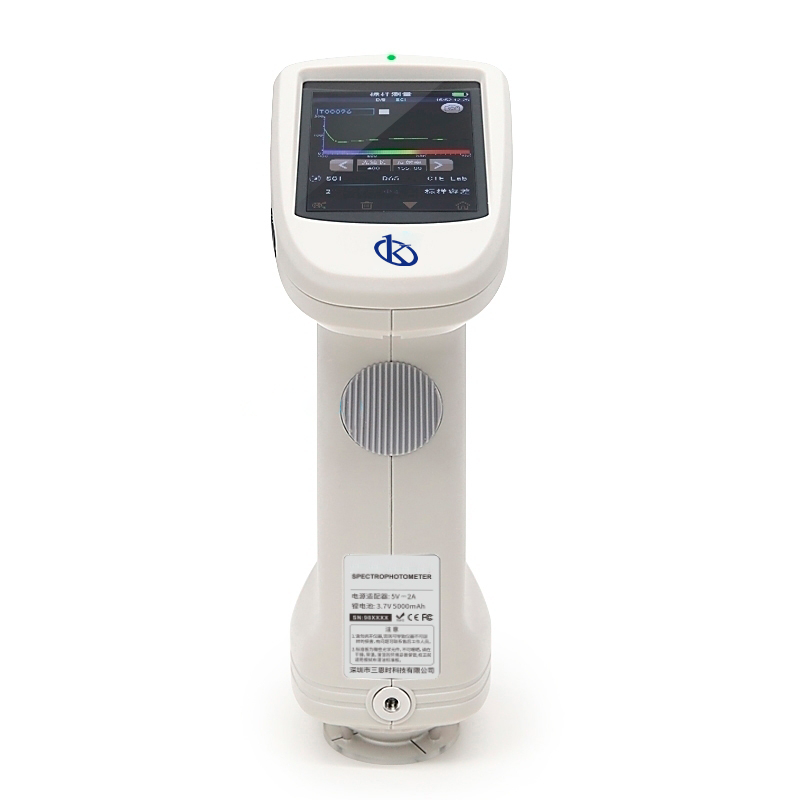

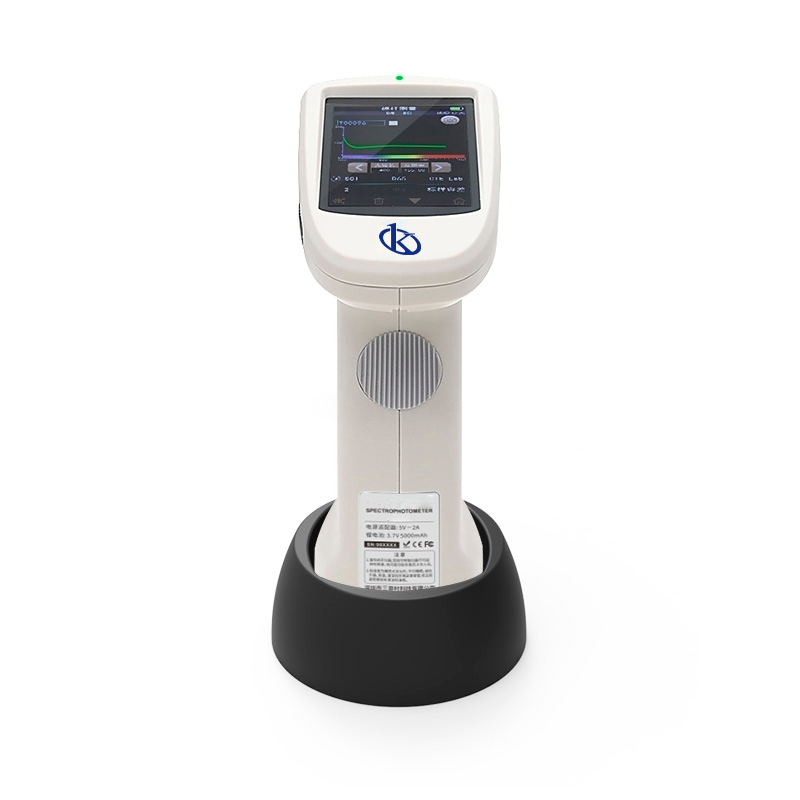

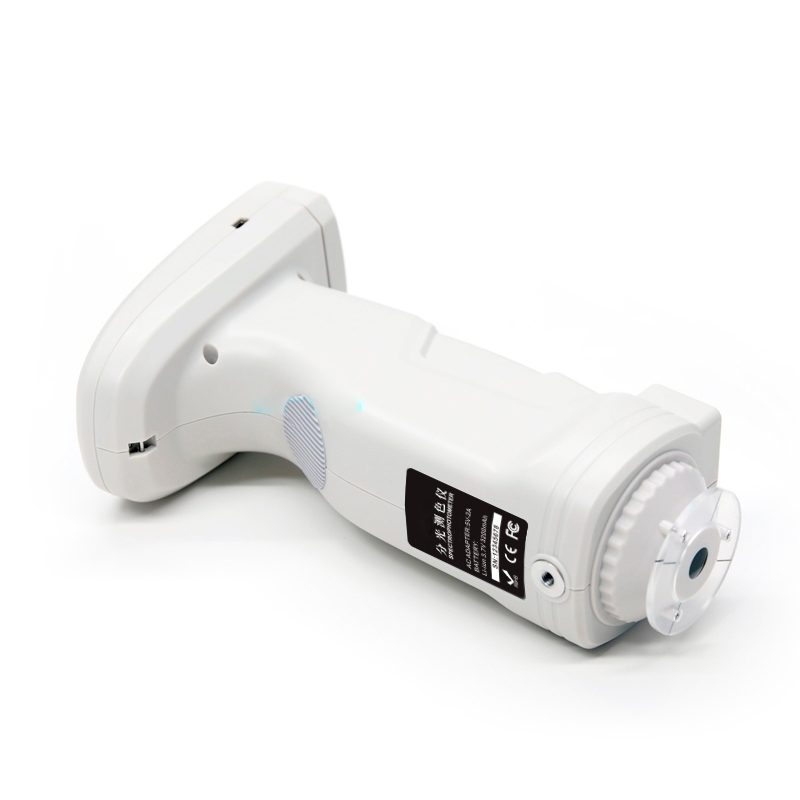

Grating Spectrophotometer YR05493

ManufacturerKalstein

Description

The YR05493 Grating Spectrophotometer is a state-of-the-art instrument designed to deliver exceptional color analysis and precision across a wide range of industries. Its versatility is unmatched, with three specific measurement apertures (φ8 mm, φ4 mm, 1×3 mm) catering to various sample sizes, making it ideal for sectors such as electronics, plastics, textiles, automotive, cosmetics, and food. Equipped with cutting-edge 1000-line grating technology and a dual silicon photodiode array sensor, it ensures stable and precise color assessment in the visible spectrum of 400 to 700 nm. Moreover, its ergonomic design coupled with a dual d/8 optical structure can execute both SCI and SCE measurements, adhering to international standards like CIE No.15 and ASTM E1164. An invaluable resource for quality control in laboratory and production settings, this spectrophotometer is essential for any company aiming to enhance precision and efficiency in color control procedures.

Market Price

The YR05493 spectrophotometer is competitively priced in the market, with a price range averaging between $9440 and $10,270 USD, depending on the chosen configurations and accessories. This device proves to be a beneficial investment, especially for businesses that seek to refine their color management processes. To receive a bespoke quotation or generate an automatic estimate, access the Kalstein Plus platform and enjoy a seamless purchasing experience.

Frequently Asked Questions

  • What industries benefit from the YR05493?
    It is recommended for use in plastics, textiles, ceramics, and printing industries and is particularly advantageous for analyzing fluorescent samples.
  • Does it integrate with PC software?

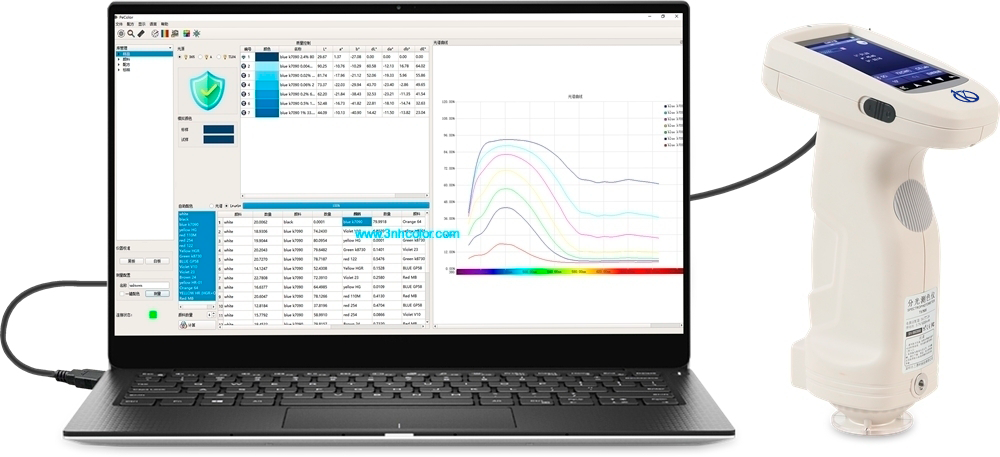

    Yes, the YR05493 comes with PC-compatible color management software that enables detailed analysis and comprehensive color quality management.
  • What storage capacity does it offer?
    It can store up to 1,000 standards and 30,000 samples, facilitating organized and detailed record-keeping.

Advantages and Disadvantages

One of the YR05493’s most notable advantages is its exceptional precision, with a standard deviation of ΔE*ab of just 0.03. Its ability to adapt through various apertures and compatibility with multiple color spaces and light sources offer significant flexibility. Moreover, its USB and Bluetooth 4.2 connectivity enable seamless data transfer. However, its limitation to the visible spectrum (400-700 nm) might not suffice for industries requiring a more extensive wavelength range.

Field Applications

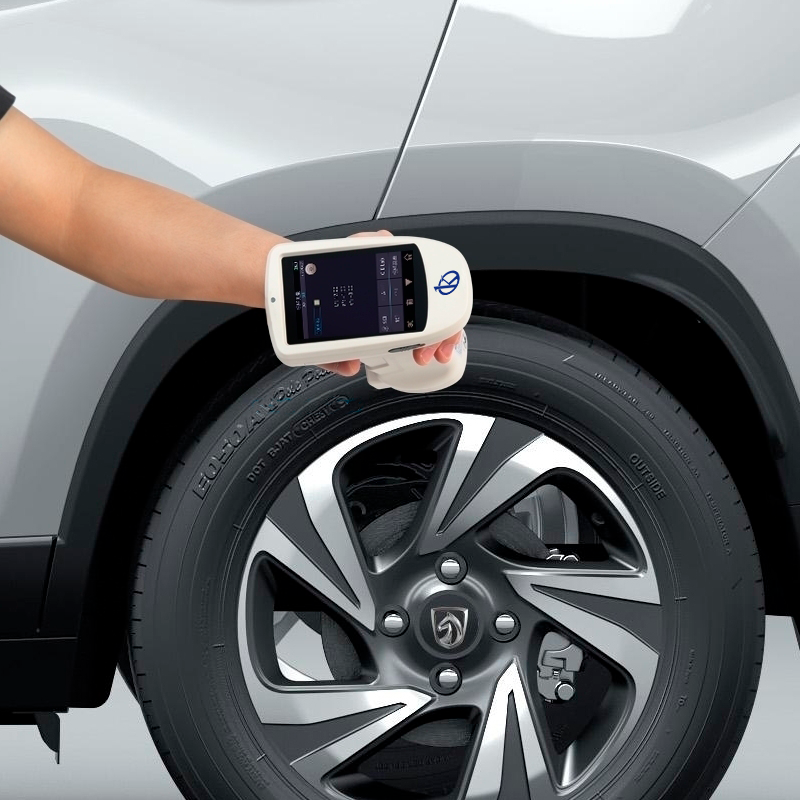

Widely utilized in fields demanding high color accuracy, including plastics, textiles, coatings, and ceramics manufacturing, the YR05493 is indispensable. Its SCI and SCE measurement modes, combined with varied aperture choices, allow it to meet any sample’s needs, guaranteeing reliable results. Additionally, it is employed for color verification in signage products and reflective films, becoming a vital tool in both laboratories and production lines.

Recommendations

For optimal performance of the YR05493, regular calibration and maintenance are advisable. Store the equipment in a clean, dust-free environment to ensure longevity. The lithium-ion battery provides up to 6,000 measurements over 8 hours, so regular recharging is suggested. Visit the Kalstein Plus platform to request a personalized quote or generate an automatic estimate and discover how the YR05493 Grating Spectrophotometer can elevate color control precision and efficiency across your industry, streamlining every production process stage.

Features

  • Three measuring apertures for adaptability to various sample sizes.
  • 1000-line grating technology and dual silicon photodiode array sensor.
  • Visible spectrum measurement (400 to 700 nm).
  • Dual d/8 optical structure for SCI and SCE measurements.
  • Conforms to international standards like CIE No.15 and ASTM E1164.
  • USB and Bluetooth 4.2 connectivity for data transfer.
  • Large storage capacity: 1,000 standards and 30,000 samples.

Technical Specifications

Model YR05493
Optical Geometry D/8 (diffused illumination, 8-degree viewing angle)
SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source
Conforms to CIE No.15, GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic 3 measuring apertures for accurate color analysis and transmission in laboratory
It is used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement.
Integrating Sphere Size Φ40mm
Light Source Combined full spectrum LED light source, UV light source
Spectrophotometric Mode Flat Grating
Sensor Silicon photodiode array (double row 40 groups)
Wavelength Range 400~700nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range 0-200%
Measuring Aperture 3 apertures: MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm;LAV:1x3mm
LAV1x3mm: Slightly poor accuracy, can be used for color test
Specular Component SCI&SCE
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2))
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
Metamerism Index MI,
Staining Fastness, Color Fastness, Color Strength, Opacity,
8° Glossiness,555 tone classification
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time About 1.5s (Measure SCI & SCE about 3.2s)
Repeatability Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%)
Chromaticity value: MAV/SCI, within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error MAV/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles)
Measurement Mode Single Measurement, Average Measurement(2-99times)
Locating Method Camera Locating,stabilizer cross position
Dimension L*W*H=129X76X217mm
Weight Approx 600g
Battery Li-ion battery, 6000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Displayed Data 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port USB, Bluetooth 4.2
Data Storage Standard 1000 Pcs, Sample 30000 Pcs
Language Simplified Chinese, English, traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, User Guide, PC Software(Download from office website), USB cable, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture,1x3mm tip aperture
Optional Accessory Micro Printer, Powder Test Box, Holding base
Notes The specifications are subject to change without notice.

Additional information

Weight 2 kg
Dimensions 28 × 13 × 30 cm
