Description

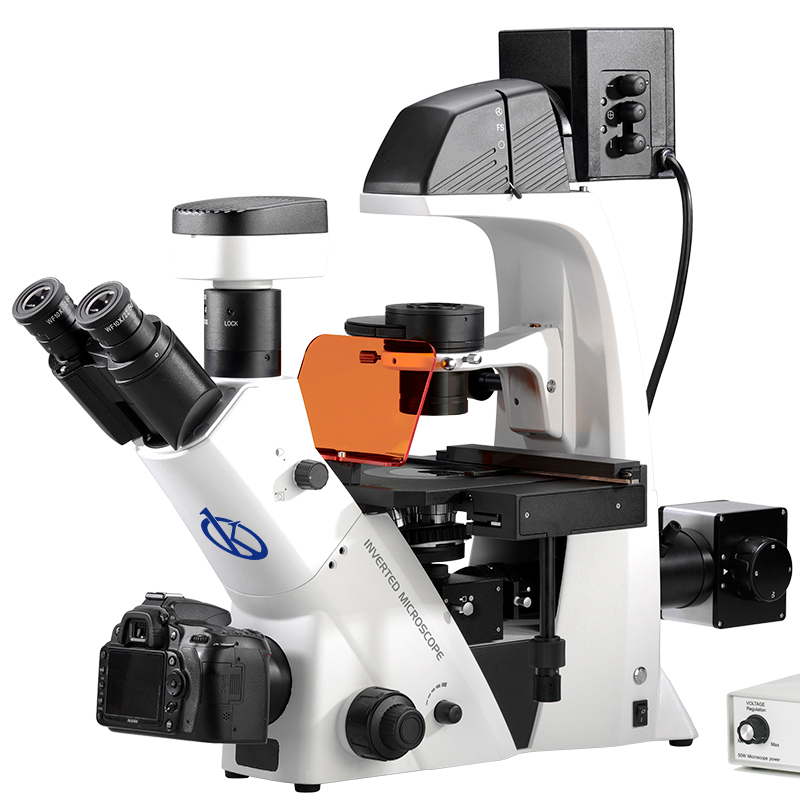

The Inverted LED Fluorescent Microscope YR05791 – YR05792 is an advanced optical instrument designed for precision and clarity in the field of microscopy. With features such as a Seidentopf Trinocular Head inclined at 45°, and a long working distance, this microscope ensures superior observational comfort and flexibility. The Koehler Illumination system, which includes a 5W LED light source and 12V/50W halogen options, provides exceptional lighting control, enhancing visibility of specimen details. It is equipped with LWD Infinity Plan Fluorescent objectives, ranging from 4x to 40x magnification, along with an eco-friendly auto power-off system, making it not only innovative but also energy-efficient.
Market Price
In the competitive market of microscopy equipment, the price for high-quality fluorescent microscopes can range approximately from $9,000 to $10,500, depending on additional features and vendor pricing. It’s key to invest wisely in a microscope that meets both your present and future research needs.
Frequently Asked Questions
- Can this microscope be used with any digital camera? Yes, it is compatible with Canon SLR digital cameras, providing versatility for capturing images.
- What is the maximum working distance? The maximum working distance is 195mm without the condenser.
- Is the power-off function mandatory? No, the auto power-off feature can be manually disabled if continuous operation is required.
Advantages and Disadvantages
The key advantage of the Inverted LED Fluorescent Microscope YR05791 – YR05792 lies in its adaptability and robust design. Its advanced features like phase contrast, long working distance, and eco-efficient functionality make it an excellent choice for laboratory settings. However, its complex assembly may require proficient knowledge for optimal use, which can be a barrier for novices.
Product Use in the Field
This microscope is ideal for applications in biological sciences, particularly in cell and tissue analysis. Its phase contrast capabilities enhance visibility of transparent specimens, making it indispensable in clinical and research laboratories. The user-friendly design and adjustable features allow for prolonged usage without discomfort.
Recommendations
To maximize the performance and lifespan of the microscope, it’s recommended to handle it with care during usage and transportation. Regular cleaning of lenses and light sources will ensure optimal clarity and brightness. Additionally, engage the automatic power-off feature to conserve energy.
Features

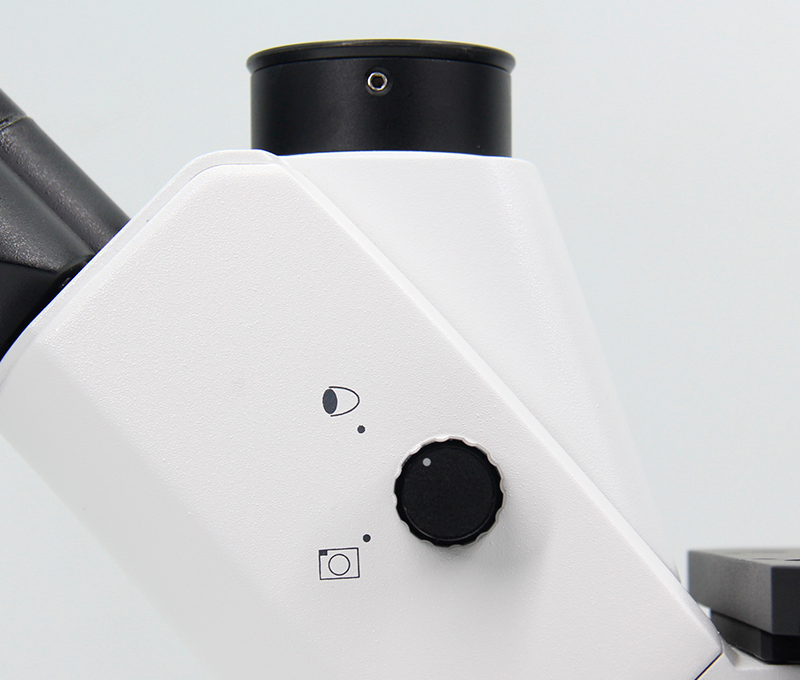

- Seidentopf Trinocular Head inclined at 45°

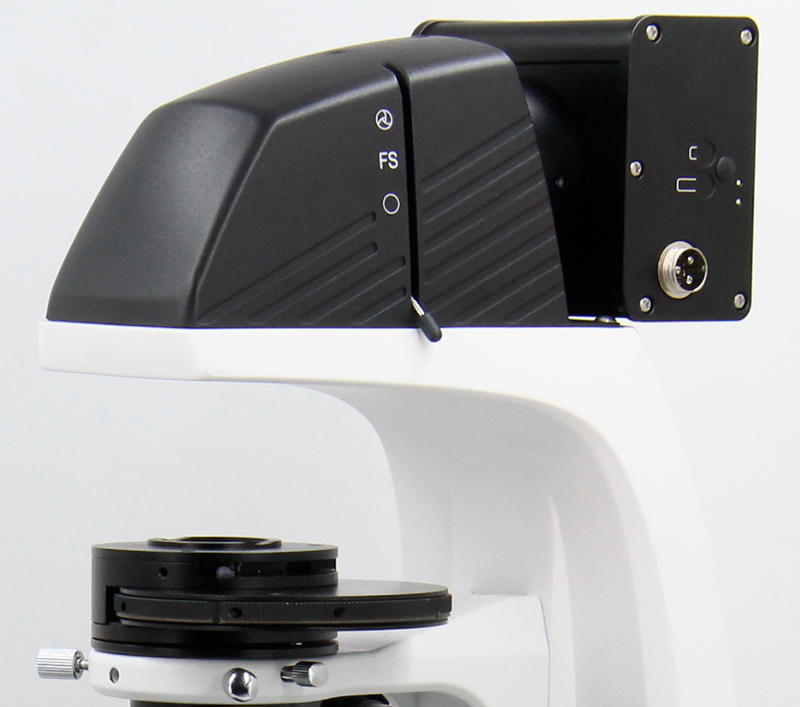

- Koehler Illumination with Halogen and LED options

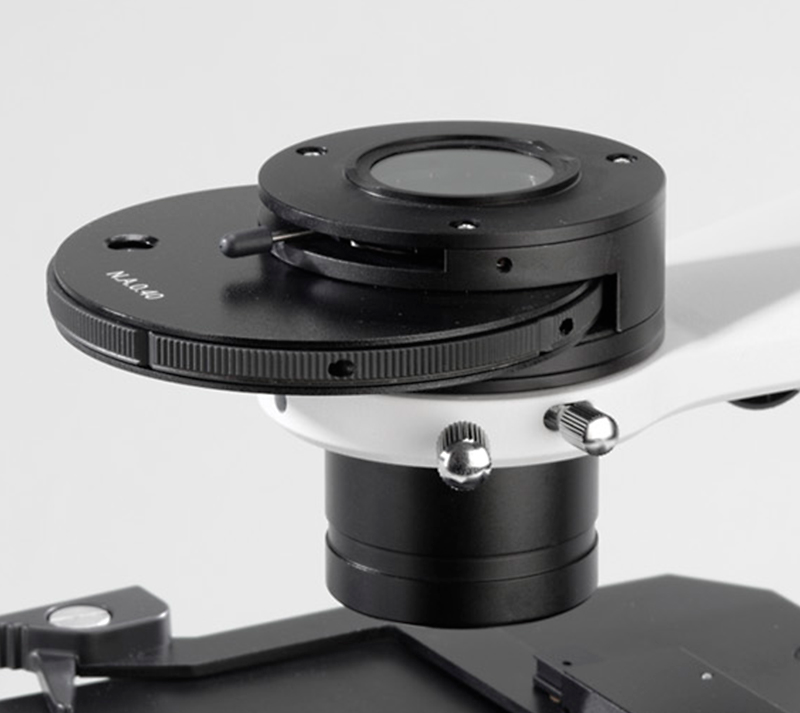

- Phase Contrast Condensers with rotating disc
- Infinity Plan Phase Contrast objectives
- Optional auto power-off system
- Compatible with Canon SLR cameras
Technical Specifications
Model | YR05791 | YR05792 |
Features | Infinity DualPhoto Port ECO (Auto Power Off) |
|
Optical System | Infinity Plan | |
Head Type | Seidentopf Trinocular | |
Head Interpupillary | 48~76mm | |
Head Light Path | E100:P0/E20:P80 | |

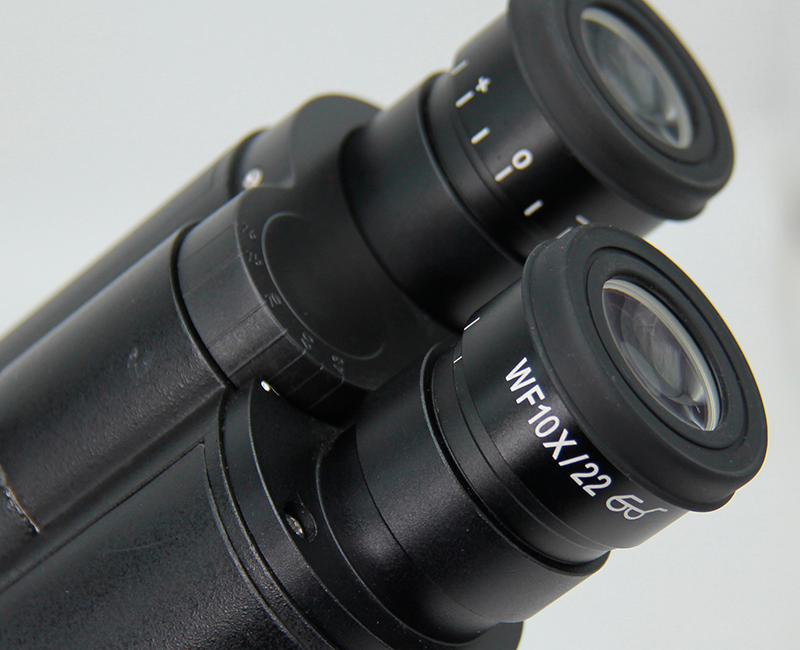

Eyepiece Features |
Diopter Adjustable | |
Eyepiece Diameter |
30.0mm | |
Nosepiece Holes |
5 holes | |
Objective Features |
LWD | |
Objective Type |
Infinity Plan Phase Contrast |
|
Working Stage Features |
Size ≥140x140mm | |
Working Stage Type |
Fixed + Attachable | |
Focusing Features |
Tension Adjustable | |
Condenser Features |
Slor for PH Slide | |
Condenser Type |
Phase Contrast | |
Condenser N.A | 0.4 | |
Light Source Features |
Kohler Illumination LED 5W Halogen 30W Transmit & Reflect |
|
Light Source Type |
Halogen Fluorescent | |
Video Adapter | C-Mount 0.3x | |
Fluorescent Band | 3 Bands | – |
