Description

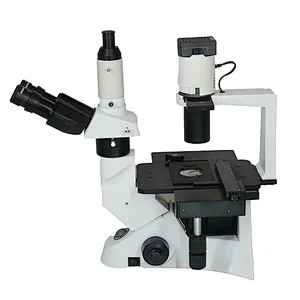

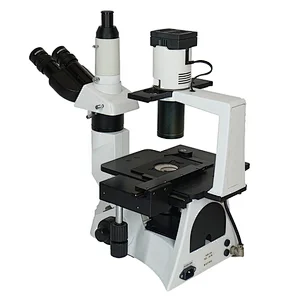

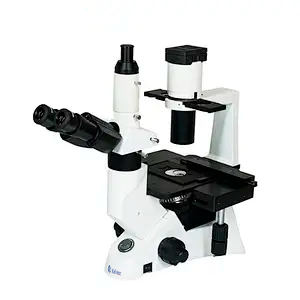

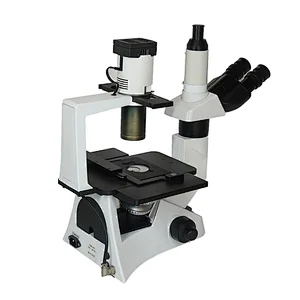

The Inverted Trinocular Microscope YR0230 is a sophisticated optical instrument designed for advanced biological research. Equipped with an extra wide field eyepiece EW10x/22mm and high eye point long working distance plan achromatic objectives, it allows the observation of transparent and live specimens in culture containers. This microscope is ideal for studying the structure of living specimens, analyzing liquid deposits, and much more. Its infinity optical system and Seidentopf trinocular head ensure unparalleled precision and comfort during extended observation sessions.
Market Price
The Inverted Trinocular Microscope YR0230 can be found in the market ranging approximately from $3,000 to $5,000, depending on the supplier and the optional accessories included. Access competitive pricing and generate a quote instantly through the Kalstein Plus platform.
Frequently Asked Questions
What is the working distance of the objectives? The working distance varies with each objective, ranging from 18mm for 4x to 2.6mm for 40x with cover glass.
Is the illumination adjustable? Yes, the Kohler illumination is equipped with an adjustable brightness halogen lamp of 6V30W.
Advantages and Disadvantages
Advantages: The microscope offers superior optical performance with its infinity optical system. The trinocular head allows for easy camera attachment for documentation purposes. The wide field eyepiece provides a comfortable viewing experience.
Disadvantages: The microscope is a significant investment and may not be necessary for basic laboratory applications. Its complexity requires trained personnel for optimal operation.
Product Use in the Field
In practical scenarios, the Inverted Trinocular Microscope YR0230 is used extensively in laboratory environments to facilitate the detailed examination of living cells. Researchers appreciate its ability to observe specimens in petri dishes without disturbing the specimens, making it essential in cell culture laboratories.
Recommendations
To maximize the life and performance of your microscope, regular calibration and maintenance are recommended. Always use the microscope in a controlled environment to prevent contamination of the optical components. For additional features, consider adding optional accessories available with the YR0230 model.
Features
- Infinity Optical System

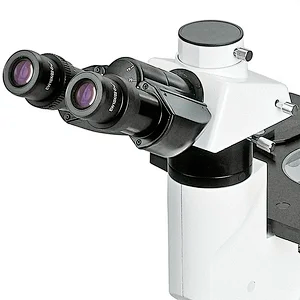

- Seidentopf Trinocular Head with adjustable interpupillary distance
- Extra Wide Field Eyepiece EW10x/22mm
- High Eye Point Plan Achromatic Objectives
- External Kohler Illumination
- ELWD Condenser with long working distance
Technical Specifications
| Model | YR0230 | ||
| Optical System | Infinity Optical System | ||
| Head | Seidentopf Trinocular Head, 30° Inclined, | ||
| Interpupillary 48~75mm, Diopter Adjustable | |||
| Eyepiece | Extra Wide Field Eyepiece EW10x/22mm, High Eye point | ||
| Nosepiece | Quintuple Nosepiece | ||
| Objective | Infinity Plan LWD Achromatic Objective | 4x/0.1, W.D.18mm | |
| 40x/0.6, W.D.2.6mm,Cover Glass 1.2mm | |||
| Infinity Plan Phase Contrast Achromatic Objective | PH10x/0.25, W.D.10mm | ||
| PH20x/0.40, W.D.5.1mm | |||
| Focusing | Coaxial Coarse & Fine Adjustment, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.2mm Per | ||
| Rotation | |||
| Working Stage | Plain Stage 160*250mm | ||
| –Glass Insert Plate | |||
| –Auxiliary Stage 70*180mm | |||

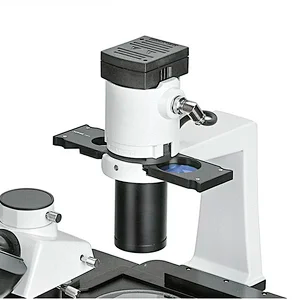

| Condenser | ELWD Condenser N.A.0.3, Long Working Distance 72mm, Up to 150mm Without Condenser | ||
| Phase Contrast | –Centering Telescope, Tube Dia.30mm | ||
| –Phase Contrast Slide, 2 Holes For 10x-20x Objective | |||
| Filter | Green, Blue, Ground Glass, Dia.45mm | ||
| Illumination | External Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable | ||
| Adapter | Eyepiece Adapter Dia.23.2mm | ||
| Inverted Laboratory Biological Microscope Optional Accessories | |||
| Objective | Infinity Plan LWD Achromatic Objective | 10x/0.25,W.D.10mm | YR0230-op1 |
| 20x/0.4,W.D.5.1mm | YR0230-op2 | ||
| Phase Contrast | Infinity Plan Phase Contrast Achromatic Objective | PH40x/0.6,W.D.0.35mm | YR0230-op3 |
| Phase Contrast Slide, 3 Holes For 10x-20x-40x Objective | YR0230-op4 | ||
| Working Stage | Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range 120*78mm | YR0230-op5 | |
| Ergonomic Stage Knob’s Height & Position Along Y-Axis Movable To Where It | |||
| Is Most Comfortable, Tightness Adjustable | |||
| Terasaki Holder, Inner Holding Size 56x88mm | YR0230-op6 | ||
| Petri Dish Holder Dia.38mm | YR0230-op7 | ||
| Slide Glass Holder Dia.54mm | YR0230-op8 | ||
| Slide Glass Holder Dia.90mm | YR0230-op9 | ||
| Adapter | Photo Adapter | YR0230-op10 | |
| C-Mount 1.0x | YR0230-op11 | ||
| C-Mount 0.45x | YR0230-op12 | ||
| Fluorescent | Fluorescent Attachment | YR0230-op13 | |
