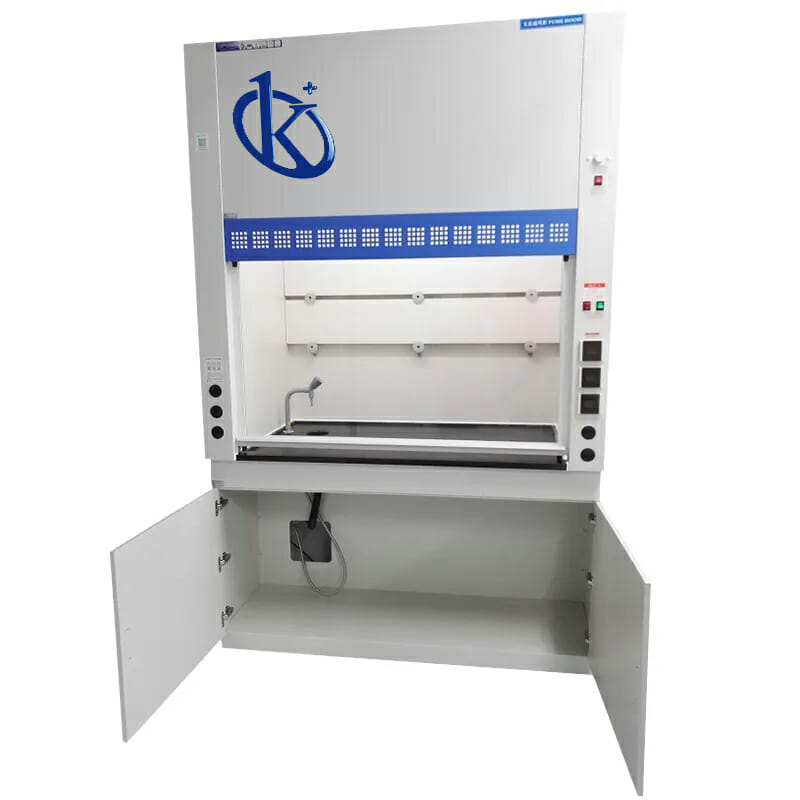

Laboratory Fume Hood,acid and alkali resistance Fume Cupboard Hospital Laboratory equipment YR05817 // YR05819

ManufacturerKalstein

Description

The YR05817 // YR05819 laboratory fume hood is designed to ensure the safety of users handling aggressive chemicals in both laboratory and hospital settings. With a 1.2 mm cold-rolled steel body coated in epoxy resin, it offers remarkable resistance against acids and alkalis. Furthermore, the 12.7 mm thick phenolic resin work surface is highly resistant to chemicals, ensuring durability even in corrosive environments. Equipped with a 5 mm tempered glass window and a manually adjustable axial flow blower, this fume hood efficiently extracts toxic gases while maintaining noise levels below 60 dB, making it an ideal choice for a peaceful working environment.

Market Price

The YR05817 // YR05819 fume hood price range typically falls between $1800 and $2600. This reflects the quality materials used, such as cold-rolled steel and phenolic resin, as well as the sophisticated safety features this equipment provides. Investing in this fume hood is a strategic choice for laboratories and hospitals that prioritize long-lasting and dependable safety equipment.

Frequently Asked Questions

  • Is the YR05817 // YR05819 fume hood user-friendly?
    The fume hood is crafted for ease of use with a control panel facilitating manual adjustments to both blower speed and window height, ensuring optimal comfort and efficiency during use.
  • What protection does it offer?
    It is designed to shield operators from hazardous fumes and gases with its adjustable ventilation system and robust, corrosion-resistant build.
  • What is the operating noise level?
    Operating under 60 dB, the hood maintains a quiet environment, ideal for bustling laboratories.

Advantages and Disadvantages

The YR05817 // YR05819 boasts robust construction, chemical-resistant surfaces, and an adjustable airflow system that enhances operator safety. Its low operational noise further adds to its appeal for laboratories with high activity levels. The only potential downside may be the initial cost, which could be less appealing to labs with limited budgets.

Field Use

This fume hood is particularly well-suited for use in laboratories and hospitals where hazardous chemicals are handled regularly. Its excellent resistance to acids and alkalis guarantees long-term durability even under demanding conditions. The efficient ventilation system quickly clears fumes, ensuring user safety and maintaining a secure working environment.

Recommendations

To maintain the optimal performance of the YR05817 // YR05819 fume hood, regular cleaning of the ventilation ducts is recommended, as well as periodic checks of the blower and window controls. Adhering to the recommended airflow settings will help maximize both durability and efficiency. Enhance your laboratory’s safety and efficiency today: request a quote from Kalstein Plus to see how the YR05817 // YR05819 fume hood can meet your specific needs, ensuring a safe and controlled work environment at all times.

Technical Specifications

Model YR05817 YR05818 YR05819
External Size (W*D*H) (mm) 1200*800*2350 1500*800*2350 1800*800*2350
Internal Size (W*D*H) (mm) 950*700*1150 1250*700*1150 1550*700*1150
Work Surface Height 800mm
Max Opening of window 750mm
Air Velocity/Exhaust air volume 0.4-0.6m/s,800-1000m³/h
Noise ≤60dB
LED Lamp 10W*1
Blower Built-in axial flow blower;Speed adjustable.
Front Window Manual,5mm toughened glass,height adjustable.
Power Supply AC220V±10%,50/60Hz;
Consumption 100W
Material Main Body 1.2mm thickness cold-rolled steel with epoxy resin powder coating.
Inner Side 5mm thickness compact,resistant to strong acid and alkali.
Work Table Chemical resistant phenolic resin, thickness 12.7mm.
Standard Accessory LED lamp,Built-in axial flow blower with speed adjustable.
Waterproof socket*3
3 meter PP duct,Diameter:250mm
Optional Accessory epoxy resin board or ceramic board.,Water tap,Gas tap,Water Sink
Outer centrifugal blower(300W),resistant to strong acid,alkali.
Gross Weight 235

265

300

Additional information

Weight N/A
Model

YR05817, YR05818, YR05819
