Description

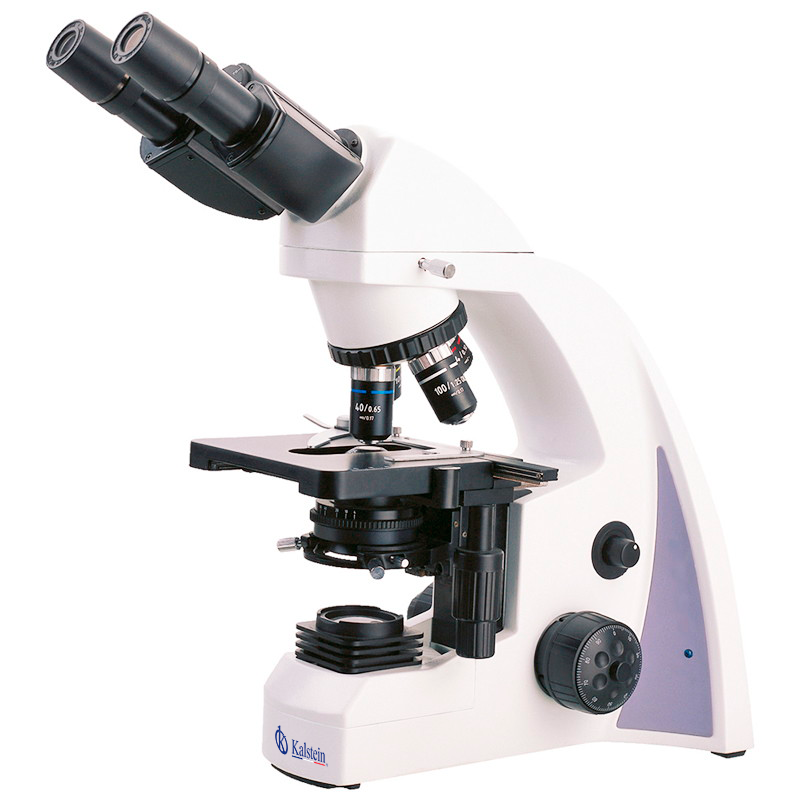

The Laboratory Microscope YR0237 is a sophisticated instrument designed to meet the high standards of modern laboratories. Featuring a robust Seidentopf Binocular Head inclined at 30° with an interpupillary distance range of 52-75mm, this microscope offers excellent versatility and user comfort. The Infinity Semi-Plan Achromatic Objectives provide sharp and clear imaging, essential for accurate laboratory analysis. In addition, it comes with a sliding-in center adjustable condenser N.A 1.25, ensuring precise light control for detailed viewing. Enhancements like the comfortable coarse and fine focusing knobs and adjustable brightness control make this microscope an essential tool for scientific research and education.
Price in the Market
While the Laboratory Microscope YR0237 is a premium product, its pricing reflects its advanced capabilities and quality. The typical price range for microscopes of this caliber is between 1100 USD and 1900 USD. This ensures that you are investing in a microscope that delivers both reliability and performance.
Frequently Asked Questions
What type of objectives does the YR0237 include?
The YR0237 includes Infinite Semi-Plan Achromatic Objectives with magnification options of 4x, 10x, 40x, and 100x.
Can this microscope adapt to different illumination needs?
Yes, the YR0237 features adjustable S-LED illumination for versatile lighting conditions and precise brightness control.
Advantages and Disadvantages
The Laboratory Microscope YR0237 offers several advantages, including high-quality imaging with infinity-corrected optics and a customizable lighting system. Its ergonomic design also enhances user experience during prolonged use. However, its advanced features might not be necessary for beginners, and professionals should ensure proper maintenance to preserve its functionality.
Field Use
This microscope is ideal for environments requiring detailed analysis and observation, such as research laboratories, clinical settings, and educational institutions. Its robust features make it suitable for microbiology, pathology, and other scientific fields where accuracy and detail are paramount.
Recommendations
To maximize the usability of the YR0237, ensure regular maintenance and clean the optical components frequently. Also, consider attending to the proper storage of the unit when not in use to avoid dust accumulation. Leverage its full potential by utilizing optional accessories available for specialized observations.
Features

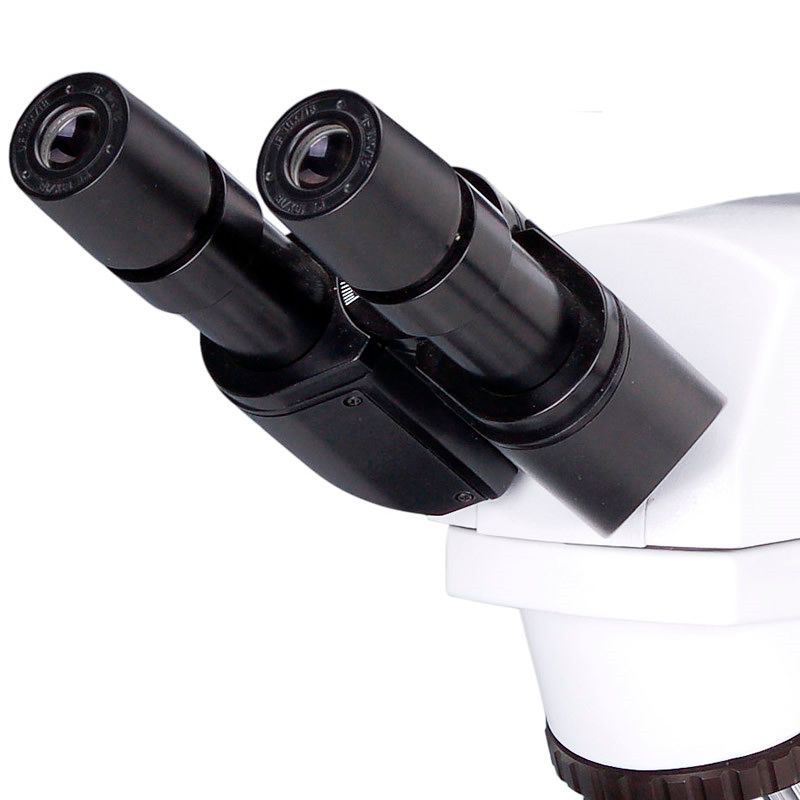

- Binocular Head, WF 10x/18mm Eyepieces
- Infinity Semi-Plan Achromatic Objectives
- Sliding-in Center Adjustable Condenser N.A1.25

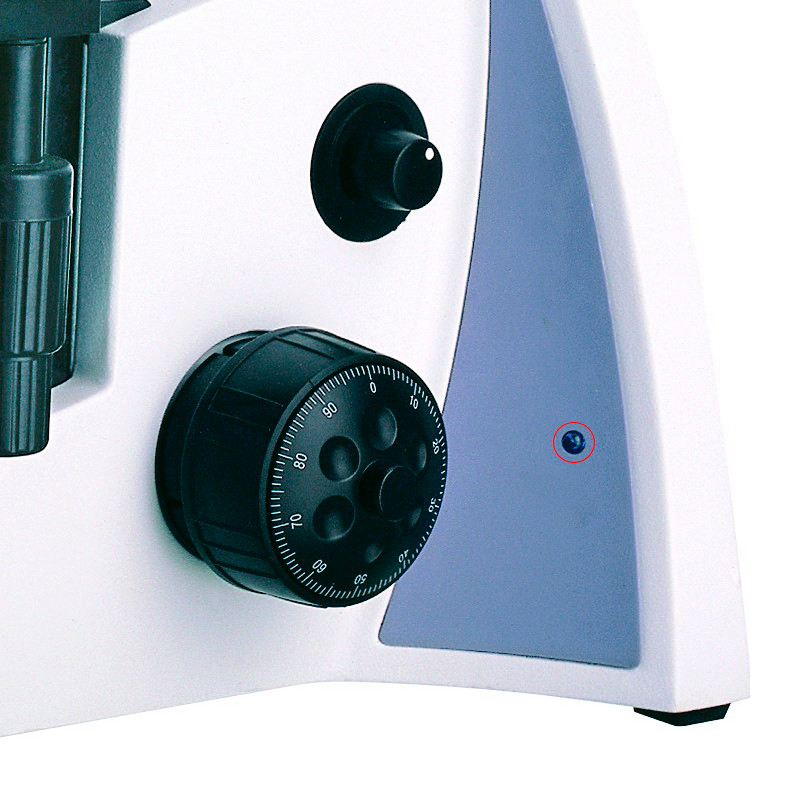

- Comfortable coarse & fine focusing Knob
- Brightness control Knob
- Power Indicator Light
Technical Specifications
| Model | YR0237 | YR0237-1 | |
| Head | Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 52-75mm,Eyepiece Tubes Rotated 180° Up & Down | o | |
| Seidentopf Trinocular Head, Inclined at 30°, Interpupillary Distance 52-75mm,Eyepiece Tubes Rotated 180° Up & Down | o | ||
| Eyepiece | Wide Field Eyepiece WF10x/18mm | ||

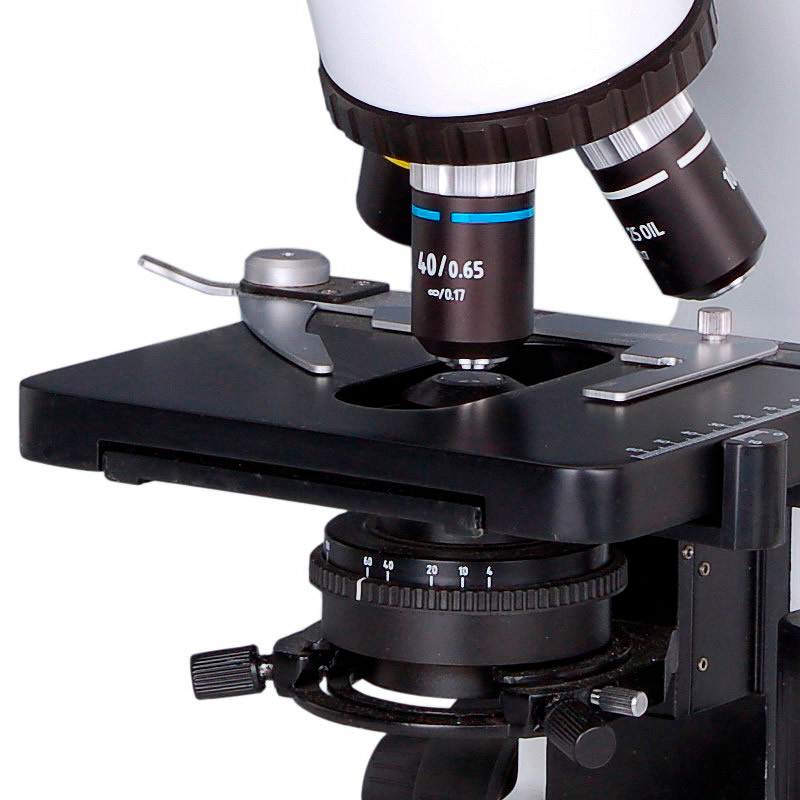

| Objective | Infinite Semi-Plan Achromatic Objective 4x,10x,40x,100x | ||
| Nosepiece | Backward Quadruple Nosepiece | ||
| Stage | Double Layer Mechanical Stage, Size 140×140mm, Moving Range 75×50mm | ||
| Condenser | Sliding-in Center Adjustable Condenser N.A.1.25 | ||
| Focusing | Coaxial Coarse & Fine Adjustment, Moving Range 20mm | ||
| Illumination | S-LED Illumination, Adjustable Brightness | ||
| Laboratory Biological Microscope Optional Accessories | |||
| Eyepiece | WF10x/20mm, Diopter Adjustable | YR0237-1-op1 | |
| Objective | Infinity Plan Achromatic Objective 4x | YR0237-1-op2 | |
| Infinity Plan Achromatic Objective 10x | YR0237-1-op3 | ||
| Infinity Plan Achromatic Objective 40x | YR0237-1-op4 | ||
| Infinity Plan Achromatic Objective 100x | YR0237-1-op5 | ||
| Illumination | 6V20W Halogen Lamp, Brightness Adjustable | YR0237-1-op6 | |
| Dark Field | Dark Field Condenser, Dry, N.A.0.7~0.9 | YR0237-1-op7 | |
| Dark Field Condenser,Immersion, N.A.1.25~1.36 | YR0237-1-op8 | ||
| Dark Field Objective, Infinity Plan 100X, | YR0237-1-op9 | ||
| ForImmersion Dark Field Observation | |||
| Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm | YR0237-1-op10 | ||
| ForImmersion Dark Field Observation | |||
| Phase Contrast | Infinity Plan Turret Phase Contrast Set | YR0237-1-op11 | |
| –Infinity Plan Turret Phase Contrast Condenser | |||
| –Ininity Plan Phase Contrast Objective 4x,10x,40x,100x | |||
| –Centering Telescope 10x | |||
| Infinity Achromatic Turret Phase Contrast Set | YR0237-1-op12 | ||
| –Infinity Achromatic Turret Phase Contrast Condenser | |||
| –IninityAchromatic Phase Contrast Objective 4x,10x,40x,100x | |||
| –Centering Telescope 10x | |||
| LED EPI-Fluorescent Kit | EPI Light 3W LED 465~475nm, B Excite Filter BP460~490 | YR0237-1-op13 | |
| EPI Light 3W LED 525~530nm, G Excite Filter BP510~550 | YR0237-1-op14 | ||
