Description

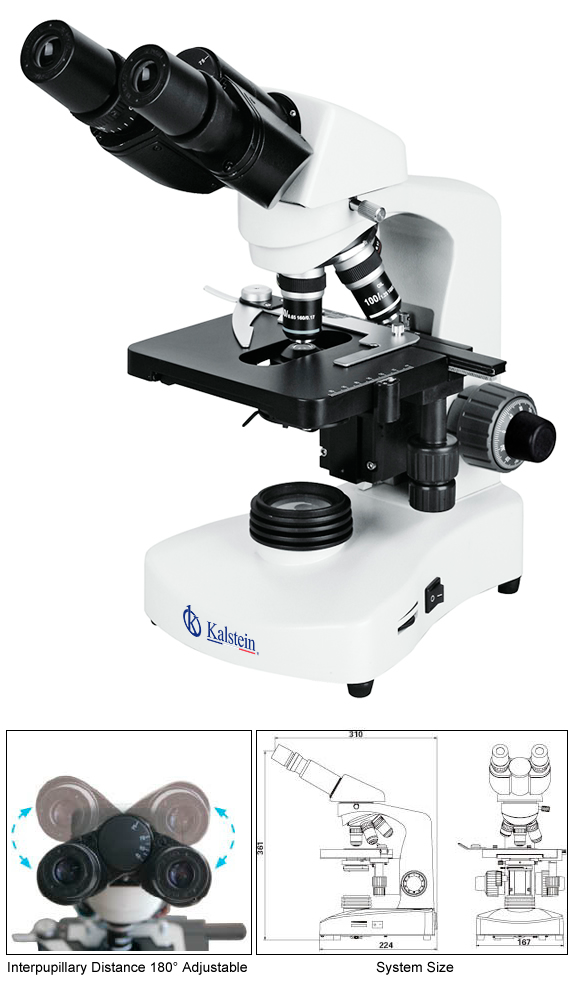

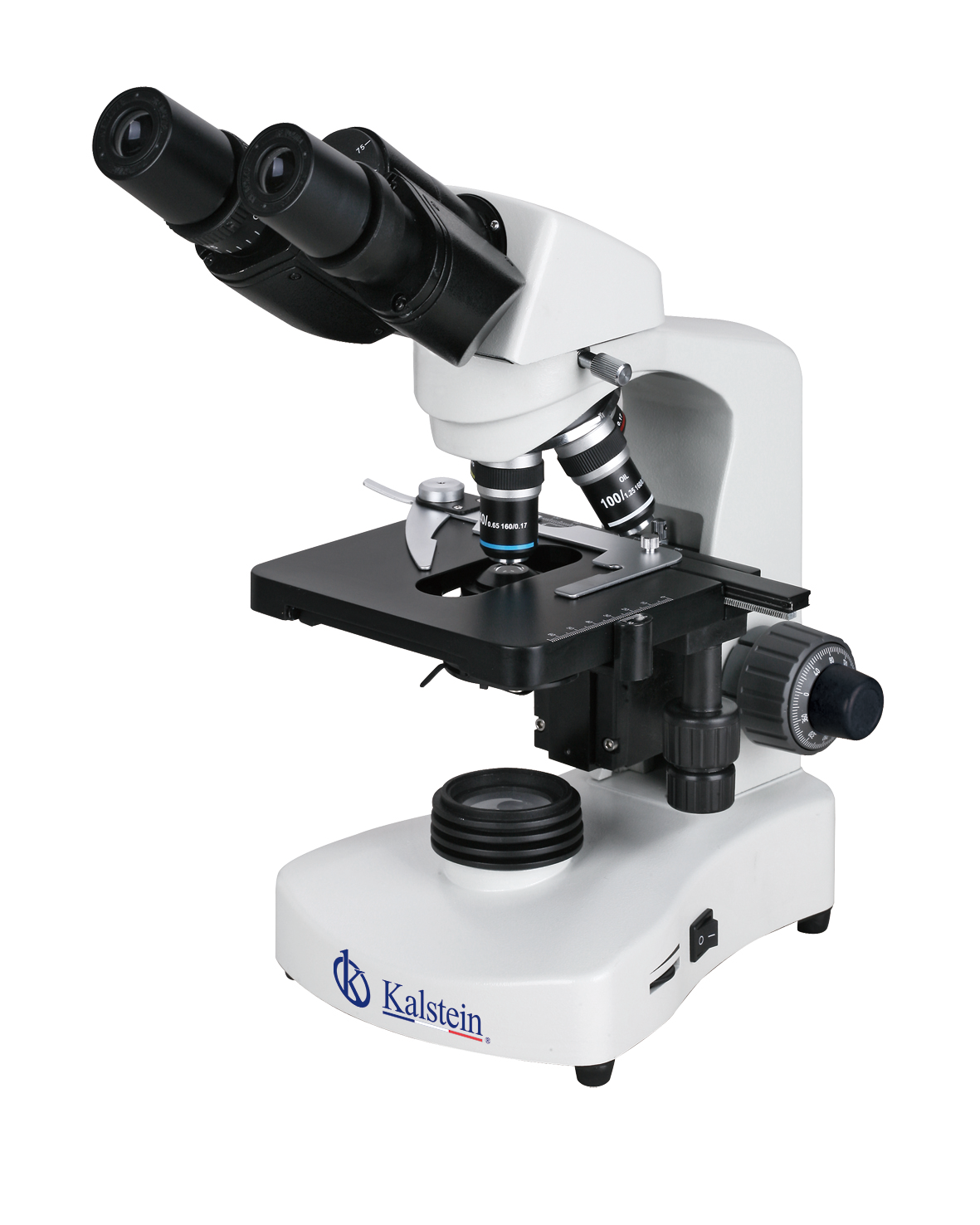

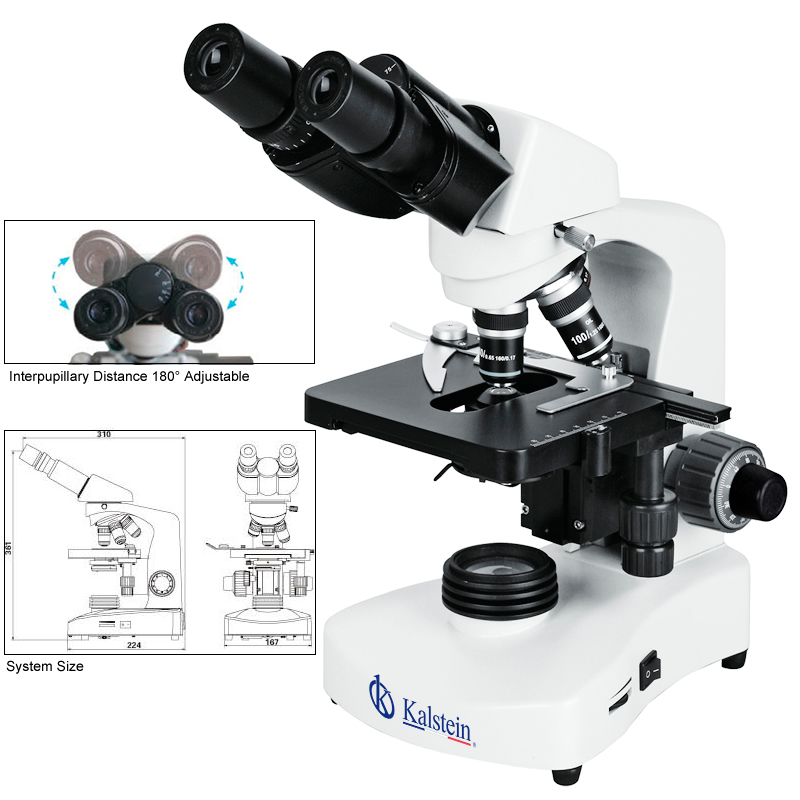

The Laboratory Microscope YR0241 is an advanced tool designed for professional laboratory use, combining precision optics with user-friendly features to offer exceptional performance. It has a Siedentopf trinocular head inclined at 30°, which allows for comfortable viewing. With its wide field eyepiece WF10x/18 and a revolving quadruple objective-carrier revolver, this microscope promises clarity and versatility in observations. The achromatic objectives (4x, 10x, 40x, and 100x) ensure high-quality imaging, making it suitable for a variety of scientific applications. Whether you are a researcher, a clinician, or running a lab, this device meets rigorous professional standards.
Market Price
The Laboratory Microscope YR0241 holds a competitive position in the market, with prices ranging from approximately $400 to $1,200 USD depending on the supplier and included accessories. This price range offers great value considering the high-quality design and performance it delivers. For specific pricing tailored to your needs, we invite you to generate a quote using our Kalstein Plus platform or directly request one from our sales team.
Frequently Asked Questions
1. What is the difference between binocular and trinocular heads?
Binocular heads offer two eyepieces for viewing, while trinocular heads include an additional port for attaching a camera for recording or displaying images.
2. Can I adjust the light intensity?
Yes, the LED illumination of the microscope is brightness adjustable for optimal image clarity.
3. What are the optional accessories available?
Optional accessories include a P16x/11 eyepiece, phase contrast kit, polarization attachment, halogen lamp, and dark field condenser.
Advantages and Disadvantages
Advantages: High precision focusing with 0.004mm fine division. Comfortable ergonomic design with an interpupillary distance adjustable between 55-75mm.
Disadvantages: The need for additional optional accessories may incur extra costs.
Use of the Product in the Field
In the field, the Laboratory Microscope YR0241 is ideal for in-depth biological studies, including cellular examinations and pathological assessments. The trinocular head is particularly useful in educational settings, where instructors can demonstrate findings to larger audiences via imaging devices.
Recommendations
To maximize the lifespan and performance of your microscope, regular maintenance is recommended. Clean the lenses with proper optical cleaning materials and periodically calibrate the focus settings. Ensure that the microscope is stored in a dry, dust-free environment.
Features
- Coaxial coarse and fine knob with 24mm range of motion and 0.004mm fine division
- Siedentopf trinocular head inclined at 30° with adjustable interpupillary distance
- Revolving quadruple objective-carrier revolver
- LED illumination with adjustable brightness
- Available optional accessories for expanded functionalities
Technical Specifications
Model | YR0241 | |
Head | Siedentopf binocular head, inclined at 30°, interpupilary distance 48-75mm | ● |
Siedentopf trinocular head, inclined at 30°, interpupilary Distance 55-75mm |
||
Eyepiece | Wide field eyepiece WF10x/ 18 | ● |
Objective | Achromatic objective 4x | ● |
Achromatic objective 10x | ● | |
Achromatic objective 40x | ● | |
Achromatic objective 100x | ● | |
Nosepiece | Backward quadruple nosepiece | ● |
Stage | Double layers mechanical stage132x142mm/ 75x40mm | ● |
Focusing | Coaxial coarse & fine knob, moving range 24mm, fine division 0.004mm | ● |
Condenser | Abbe condenser N.A.1.25 with Iris diaphram & filter | ● |
Illumination | LED 3W, brightness adjustable | ● |
Optional Accessories | Item No. | |
Eyepiece | P16x/11 | YR0241-op1 |
Phase Contrast Kit | YR0241-op2 | |
Polarization Attachment | YR0241-op3 | |
Illumination | Halogen lamp 6V/ 20W, brightness adjustable | YR0241-op4 |
Dark Field Condensor | YR0241-op5 |
