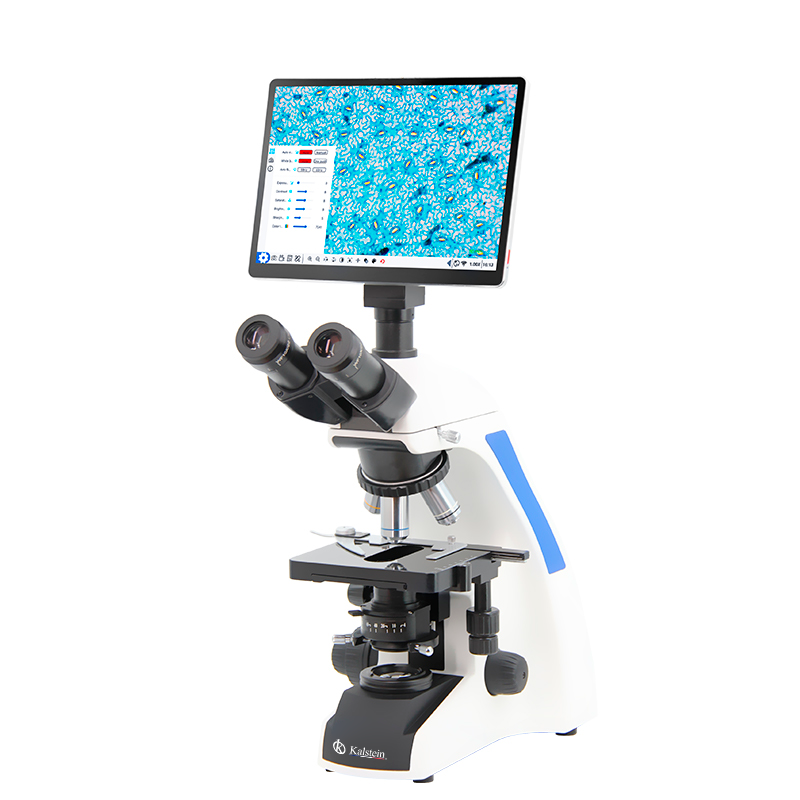

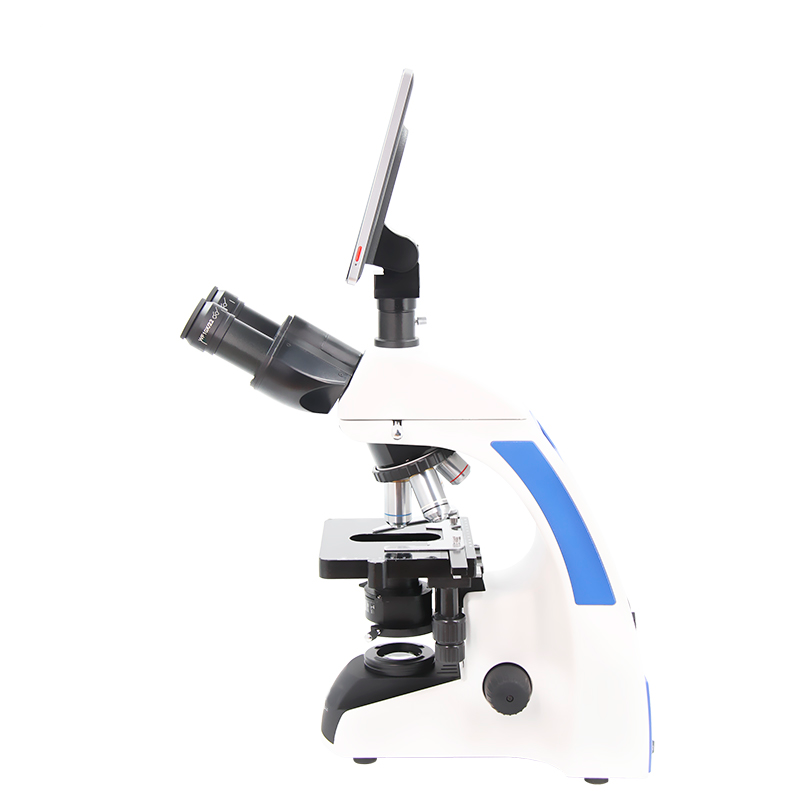

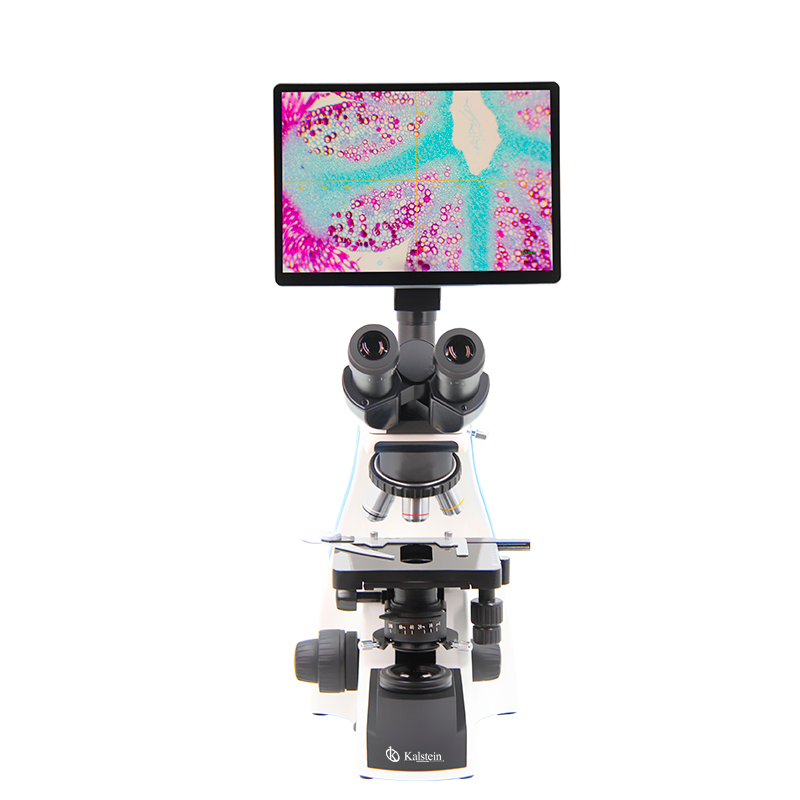

LCD Touch Screen Digital Microscope YR05782
LCD Touch Screen Digital Microscope YR05782 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.

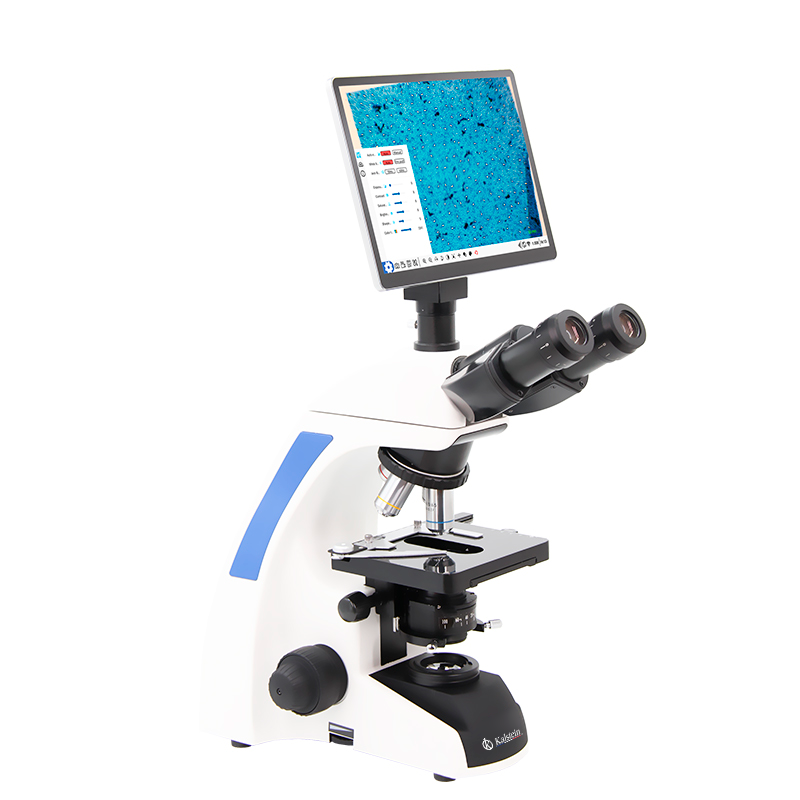

Explore the world of microscopy with the sophisticated LCD Touch Screen Digital Microscope YR05782. This advanced device features a 10.5-inch LCD touch screen with an intuitive Android system, providing enhanced image analysis and precise measurements. With its high eyepoint wide field eyepiece and achromatic objectives that range from 4x to a stunning 100x, this microscope is designed for both professionals and enthusiasts in biological research and education. The double layer mechanical stage and adjustable LED illumination ensure ease of use and high-quality viewing. This comprehensive setup empowers users to achieve detailed observations effortlessly.
Market Price
The competitive landscape for digital microscopes like the YR05782 varies significantly. Commonly, prices for similar models range from $1300 USD to $2100 USD, placing the YR05782 within a reasonable and attractive range considering its advanced features and performance capabilities. Investing in this tool promises enhanced precision and user-friendly functionality, making it a valuable addition to any laboratory.
Frequently Asked Questions
What type of objects can be viewed with the LCD Touch Screen Digital Microscope YR05782? This microscope is ideal for a wide array of biological specimens, including cells, tissues, and microorganisms.
Is the software compatible with multiple devices? Yes, the Android-based system allows for compatibility and integration with multiple devices, enhancing accessibility and data management.
Advantages and Disadvantages
The primary advantages of the YR05782 include its high-definition touch screen, precision optics, and robust measurement software. The intuitive Android interface simplifies navigation and enhances user experience. However, the complexity of its features may require an adjustment period for those new to digital microscopy. Additionally, the investment is significant, though justified by the scope of features and high-quality construction.
Product Usage in the Field

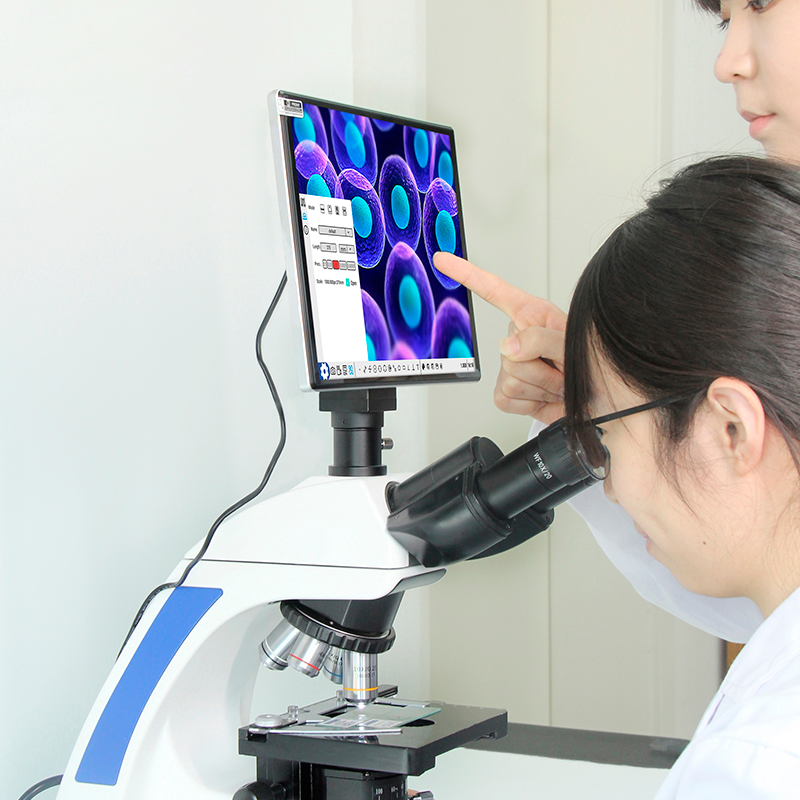

In practical settings, the YR05782 serves as a powerful tool for biologists, educators, and laboratory technicians. Its versatility and ease of use facilitate detailed research, teaching, and presentations. The microscope’s connectivity options allow for seamless integration and data sharing, enhancing collaborative efforts in research environments.
Recommendations
To optimize the performance of your YR05782 microscope, ensure proper maintenance by regularly cleaning the optics and updating the software. Utilize the measuring software to record and analyze your observations. Consider exploring Kalstein Plus for an instant quote and personalized service options to suit your specific needs.
Features
- 10.5" LCD Touch Screen with Android System
- WF10x/20mm High Eyepoint Wide Field Eyepiece
- Achromatic Objectives: 4x, 10x, 40x, 100x Oil
- Double Layer Mechanical Stage with Kohler Illumination
- Upgradeable Components for Advanced Research
Technical Specifications
| Model | YR05782 | |
| Head | Trinocular Head, 30° Inclined, Interpupillary Distance 48-75mm, Both Eyepiece Tube Diopter Adjustable | |

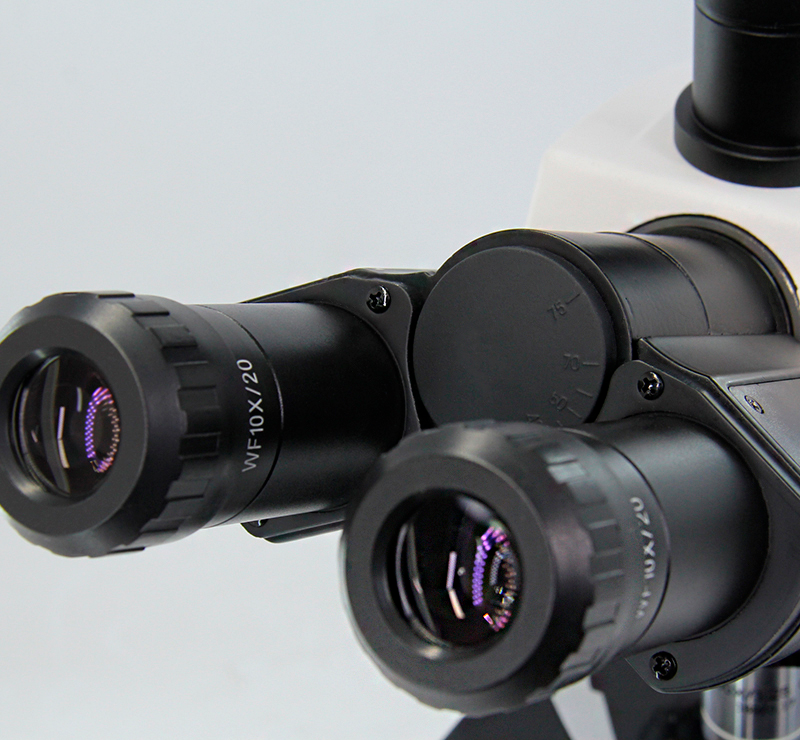

| Eyepiece | WF10x/20mm, Diopter Adjustable, Dia. 30mm | |
| Objective | High Contrast Chromatic Free 4x, 10x, 40x(S), 100x(Oil, S) | |
| Focus Knob | Coaxial Coarse & Fine Focusing, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Focusing Range 24mm | |
| Nosepiece | Quadruple, Backward With Click Stops | |

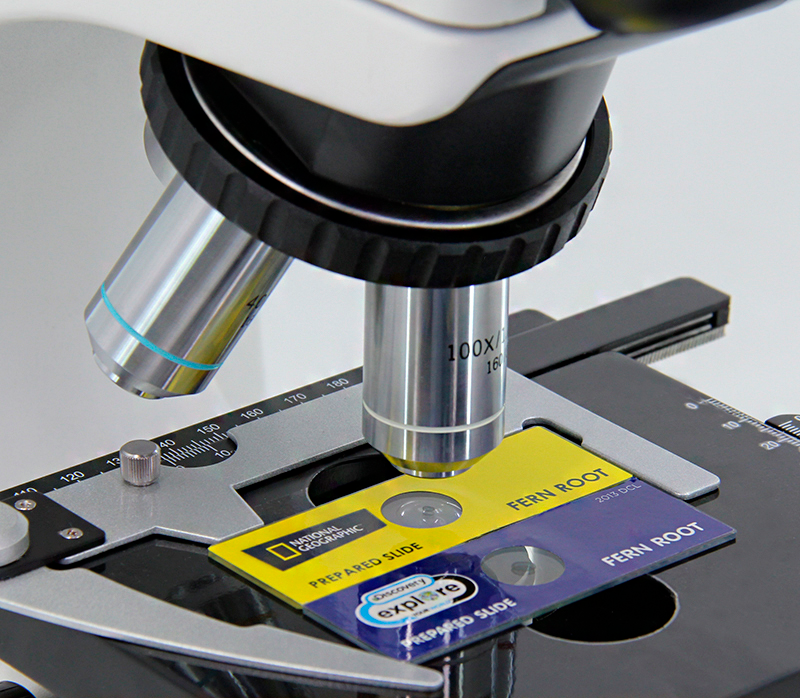

| Stage | Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75x50mm | |

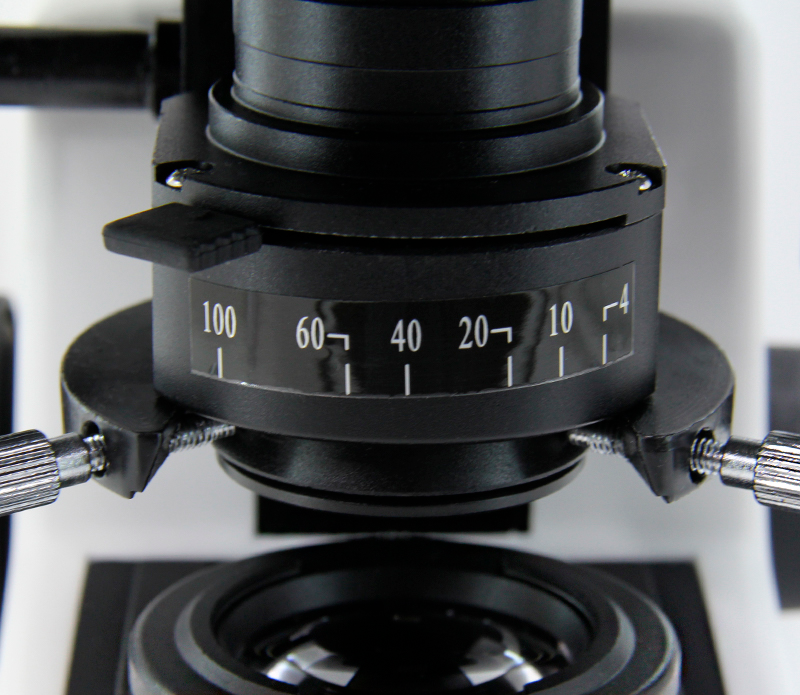

| Condenser | Abbe Condenser N.A.1.25, Center Adjustable | |
| Light Source | 3W LED Brightness Adjustable | |
| Adapter | C-Mount 0.5x | |
| Package | 53*32.5*53.5cm/11.5Kg, 1 Set/Carton | |
| 10.5“ Touch Screen Android Pad Digital Camera, 8.0M1 Newly Update 2022! | ||
| Spec. | Model | YR05782-op0 |
| Category | HD All-in-One Android 11 System Tablet Digital Camera | |
| Sensor | 1/1.8” CMOS Sensor | |
| Effective Pixel | 8M, 4K | |
| Screen | 10.5” High-Definition Touch Screen | |
| Operation System | Android 11 | |
| WIFI | 2.4GHz/5GHz Dual-band WIFI, Support WIFI6 | |
| Bluetooth | Bluetooth 5.0 | |
| Output | USB3.0*2, USB2.0*1, HDMI, Gigabit LAN Port | |
| Pixel size | 2.0um*2.0um | |
| Power | DC-12V/2A | |
| Function | Basic Function | Android Interaction, Installed S-Eye2.0 Measure Software |
| Image Adjustment | Brightness, Contrast, Saturation, Color Temperature | |
| Camera Function | Mirror, Flip, Freeze, Black and White | |
| UI Interface | Support User-friendly Mouse & Keyboard, And Touch Screen Operation | |
| Photo | 8.0M Image Capture | |
| Video | 1080P Video | |
| Storage | Still Photo And Video Recording, Picture Preview | |
| Marking | Point Coordinates, Crosshairs, Coordinate System, Text Annotations | |
| Length Measurement | Straight Line, Folded Line, Curve Length, Parallel Line Distance, Point Line Distance | |
| Geometric Measurement | Line Segment Length, Radius Fixed Circle, 2 Point Fixed Circle, 3 Point Fixed Circle, Concentric Circle, Radius Fixed Circle | |
| Geometric Area Measurement | Polygon, Rectangle | |
| Measurement System | Built-in S-Eye Software | |
| Package | Box Size | 237*169*10.5mm |
| Weight | 0.6kg | |
| Accessory | DC-12V/2A Power Adapter | |
| Laboratory Biological Microscope Optional Accessories | ||
| Eyepiece | WF16X/F.N.15mm | YR05782-op1 |
| WF20X/F.N.12mm | YR05782-op2 | |
| Nosepiece | Backward Quintuple Nosepiece | YR05782-op3 |
| Dark Field | Dark Field Condenser, Dry, N.A.1.25 | YR05782-op4 |
| Dark Field Condenser, Immersion, N.A.1.25~1.36 | YR05782-op5 | |
| Polarizing | Polarizer & Analyzer | YR05782-op6 |
| Phase Contrast | Turret Disc Phase Contrast Condenser, For 10x,20x,40x,100x | YR05782-op7 |
| Infinity Plan Phase Contrast Objective 10x,20x,40x,100x | ||
| Centering Telescope 10x | ||
| Optional For B, T Only | ||
| Adapter | Eyepiece Tube Adapter | YR05782-op8 |
| C-Mount 1.0x | YR05782-op9 | |
Technical specifications
| Dimensions | L 53 × W 32.5 × H 53.5 cm |
|---|---|
| Weight | 11.5 kg |
| Manufacturer | Kalstein |
