Description

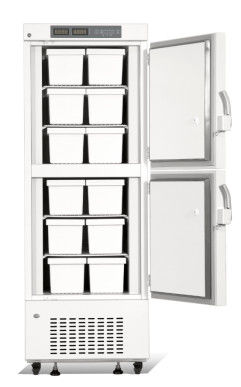

The Medical Supplies Vertical Deep Freezer 358L -40 Degree Cold Storage YR05309 is a high-performance laboratory freezer designed for the safe and efficient storage of sensitive medical supplies. With a large capacity of 358 liters, it is perfect for hospitals, laboratories, and research facilities that require precise temperature control and reliability. The advanced microprocessor control system allows adjustable temperature settings ranging from -20ºC to -40ºC, ensuring uniform cooling with minimal fluctuations. Its build features a corrosion-resistant inner cabinet and includes safety features such as multiple malfunction alarms for high/low temperature, sensor errors, and door ajar notifications, providing peace of mind during operation.
Market Pricing
The pricing for vertical deep freezers in this category typically ranges from $3,600 to $4,400, depending on additional features and capabilities. This price range reflects the high-tech components and reliable performance necessary for long-term storage of critical medical materials. For more precise pricing or to obtain a detailed quote, we recommend using the Kalstein Plus platform.
Frequently Asked Questions
What temperature range does this freezer support?
The freezer supports a temperature range from -20ºC to -40ºC, providing versatile options for various storage needs.
Does it have an alarm system?
Yes, it features an audible and visual alarm system to alert for high/low temperature, power failures, and door ajar situations.
Pros and Cons
Advantages: The freezer offers a wide voltage tolerance and energy-efficient operation, making it suitable for different power conditions. Its robust construction ensures durability and longevity.
Disadvantages: The unit requires manual defrosting and has relatively high energy consumption, which may not be ideal for all users.
Field Usage
This freezer is ideal for use in hospitals, research laboratories, and pharmaceutical facilities where large volumes of samples or medicines need to be stored at consistent sub-zero temperatures. The efficient use of space and inclusion of 12 drawers allows easy organization and retrieval of stored items.
Recommendations
For optimal performance, ensure the freezer is installed in a room with a stable ambient temperature and maintain regular maintenance checks on the compressor and condenser. Utilizing the USB data logging option offers convenient monitoring and recording of temperature to ensure compliance with storage regulations.
Key Features
- Microprocessor control with LED digital display
- Wide voltage tolerance (187-242V/AC)
- Energy consumption: 5.5 kWh/24h
- Advanced alarm system for enhanced safety
- Manual defrosting and R290 refrigerant
Technical Specifications
Model | YR05309 | |
Details | Shelf/drawer | Shelves/12 drawers |
Cooling method | Direct cooling | |
Defrost | Manual | |
Refrigerant | R290 | |
Energy consumption(kWh/24h) | 5.5 | |
Noise(db) | 49 | |
Ambient temperature(℃) | 10~32℃ | |
Temperature range(℃) | -20~-40℃ | |
Cooling system | Compressor brand/QTY | CUBIGEL/2 |
Condenser | Wire tube | |
Sensor | NTC | |
Temperature controller | Microprocessor | |
Display | Digital display | |
Power System | Voltage/frequency(V/Hz) | 220/50Hz |
Power(W) | 310W | |
Current(A) | 3 | |
Material | Inside material | Color sprayed steel |
Outside material | Color sprayed steel | |
Insulation | PURF | |
Dimension | Capacity(L/cu.ft) | 358/12.6 |
NT./GT.(kg) | 138/178 | |
Exterior size(W*D*H)(mm) | 720×830×1870 | |
Interior size(W*D*H)(mm) | 466×636×625 | |
Package size(W*D*H)(mm) | 780×920×1990 | |
CBM | 1.43 | |
20GP/40GP/40HQ | 18/39/39 | |
Alarm System | High/low temperature | Y |
Power failure | Y | |
Sensor error | Y | |
Filter check | / | |
Temperature controller failure | Y | |
Low battery | / | |
Condenser clean | / | |
High ambient temperature | Y | |
Door ajar | Y | |
Power failure backup system (alarm) | 8H | |
Accessories | Foot | Y |
Castor | Y | |
Inside door | 12 DRAWERS | |
Test hole QTY/diameter | Y | |
USB port | Y | |
Remote alarm port | Optional |
