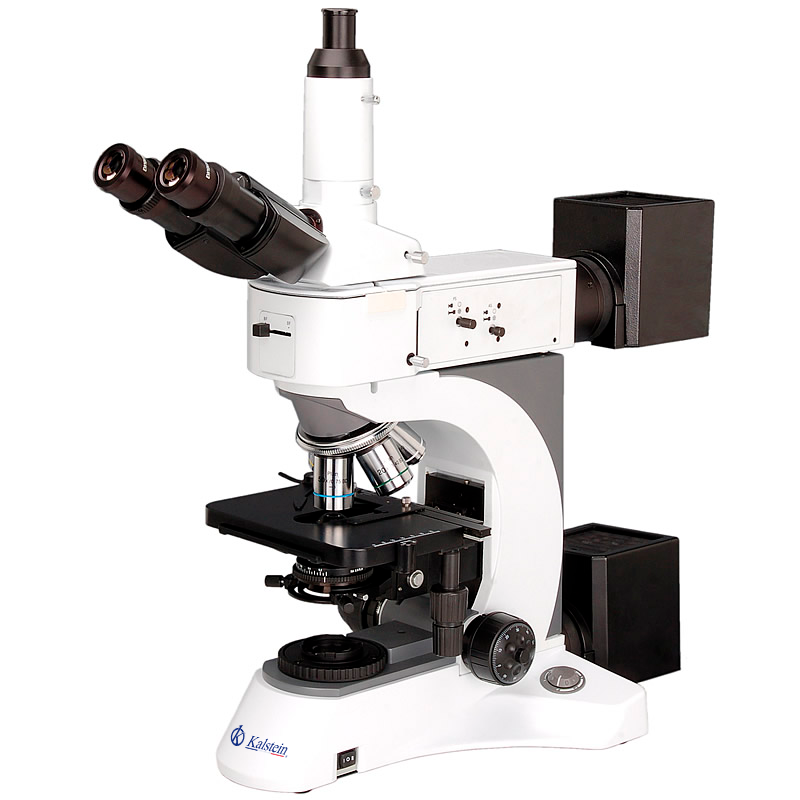

Metallurgical Microscope YR0251 – YR0252

ManufacturerKalstein

Description

Metallurgical Microscope YR0251 – YR0252 is an advanced optical instrument designed to meet the high demands of metallurgical analysis and research. This microscope features a Seidentopf trinocular head inclined at 30°, allowing comfortable viewing with interpupillary adjustment ranging from 48 to 75mm. Equipped with extra wide field eyepieces (EW10x/22mm), and an infinity optical system, it supports bright field, dark field, and polarizing techniques, crucial for detailed metallographic studies. Moreover, its robust build includes a quintuple nosepiece and a comprehensive range of infinity plan achromatic objectives to ensure precision and reliability in observations.

Market Price

In the market, the Metallurgical Microscope YR0251 – YR0252 typically has a price range between $5,700 and $6,500. This pricing reflects its advanced features and professional application in metallurgical and materials science fields. For those interested in high-quality microscopy solutions, this product offers excellent value for its price point.

Frequently Asked Questions

Q: What kind of illumination does the microscope use?
A: It features both reflect illumination with a 24V 100W halogen lamp and transmit illumination with an aspherical condenser.

Q: Can this microscope be used for educational purposes?
A: Absolutely, while it’s designed for professional use, its user-friendly design makes it suitable for advanced educational training.

Advantages and Disadvantages

Advantages:

  • High-quality infinity optical system for clear, precise images.
  • Versatile with bright field, dark field, and polarizing capabilities.
  • Durable construction ideal for rigorous use.

Disadvantages:

  • Higher price point may be a barrier for small labs or individual use.
  • Requires careful handling and maintenance due to sophisticated components.

Field Application

The Metallurgical Microscope YR0251 – YR0252 is a vital tool in metallography, enabling engineers and researchers to conduct detailed examinations of metal surfaces and structures. Its application extends across various industries, including materials science, metallurgy, and quality control labs, where accurate material analysis is crucial.

Recommendations

To maximize the lifespan and performance of your Metallurgical Microscope YR0251 – YR0252, it is important to regularly clean all lenses and optical components. Adjust the lighting appropriately for different specimens to ensure the best image quality. For best practices, consider integrating use with a Kalstein Plus account for efficient service and support.

Features

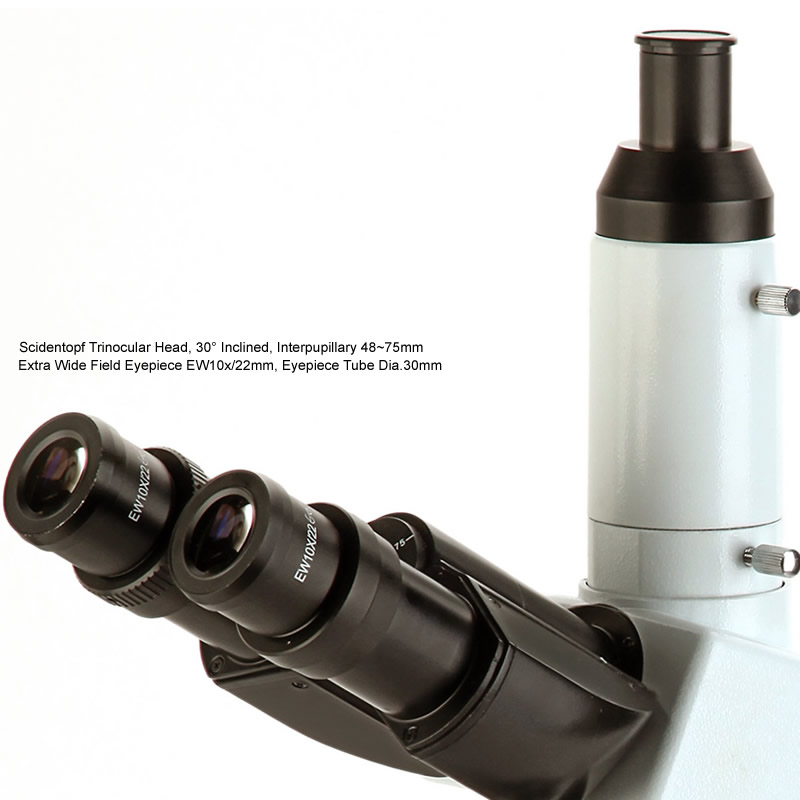

  • Seidentopf Trinocular Head, 30° inclined with interpupillary 48~75mm adjustment
  • Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm

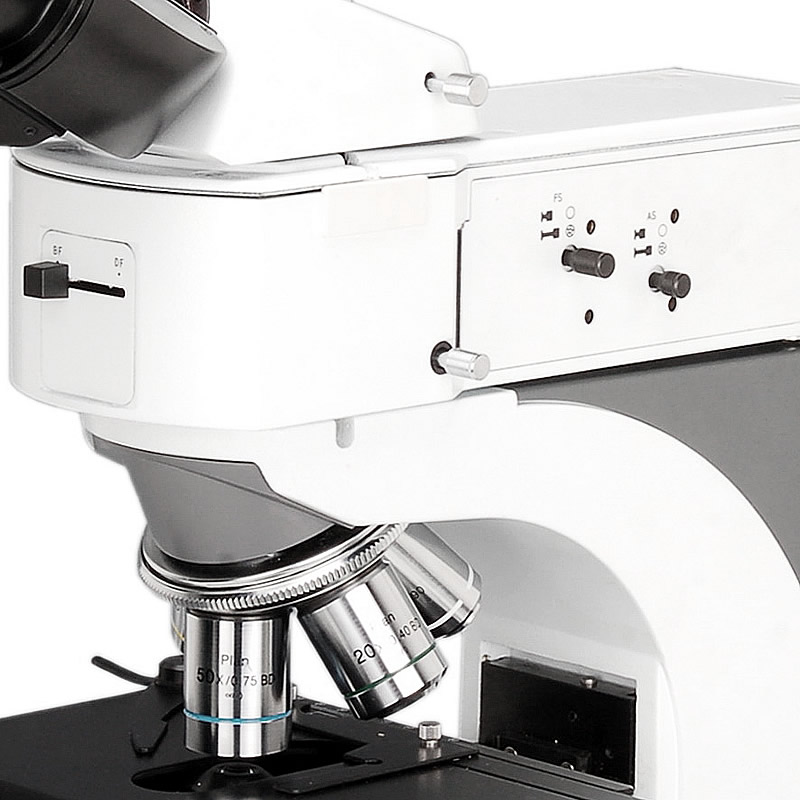

  • Bright Field / Dark Field switch knob for adaptable viewing

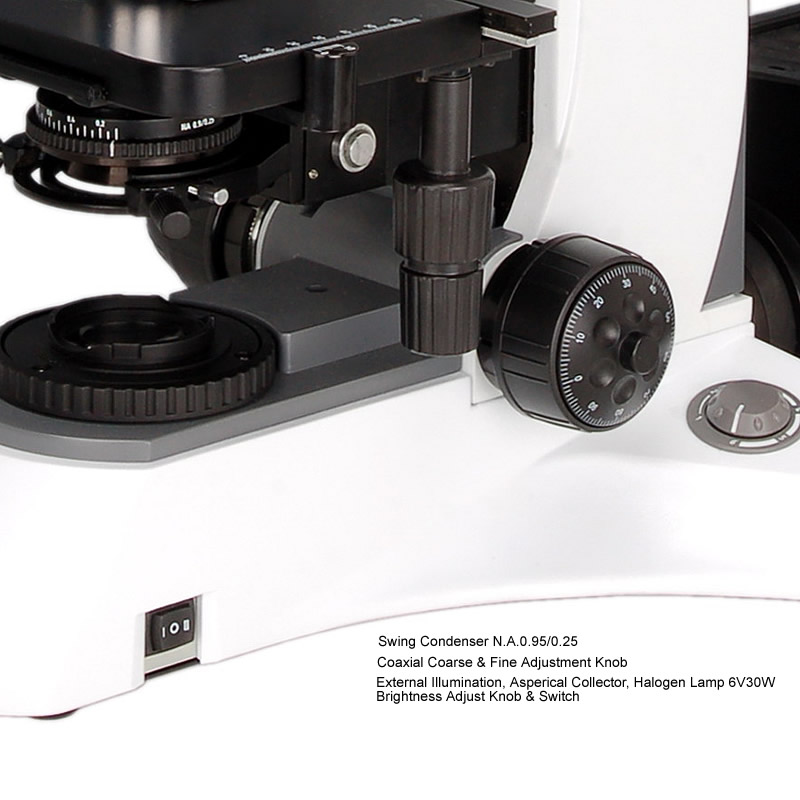

  • Swing Condenser N.A.0.95/0.25 for optimal lighting
  • Coaxial Coarse & Fine Adjustment Knob for precision focusing
  • External Illumination with Aspherical Collector
  • Equipped with Halogen Lamp 6V30W
  • Features Brightness Adjust Knob & Switch

Technical Specifications

Model YR0251 YR0252
Optical System Infinity Optical System, Bright Field/Dark Field, Polarizing
Head Seidentopf Trinocular Head Inclined at 30°, Interpupillary 48-75mm
Eyepiece Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm
Nosepiece Backward Quintuple Nosepiece
Objective Infinity Plan Achromatic Objectives 5x/0.12/∞/ – (BF)
Infinity Plan Achromatic Objectives 10x/0.25/∞/ – (BF/DF)
Infinity Plan Achromatic Objectives 20x/0.4/∞/0 (BF/DF)
Infinity Plan Achromatic Objectives 50x/0.75/∞/0 (BF)
Infinity Plan Achromatic Objectives 100x/0.90/∞/0 (BF)
Infinity Plan Achromatic Objectives 40x/0.65/∞/0.17 o
Infinity Plan Achromatic Objectives 100x/1.25/∞/0.17 o
Focusing Coaxial Coarse & Fine Adjustment, Fine Focusing Precision <1um, With Safty Stop, With Tension Adjustment
Working Stage Maximum Sample Height 30mm
Double Layer Mechanical Stage 186*138mm, Moving Range 74*50mm, Including:
–Specimen Preparation Plate
–Slide Glass o
Reflect Illumination 24V 100W Halogen Light, Brightness Adjustable
Kohler Illumination With Aspherical Condenser
Polarizer & Analyzer, Intergrate Board For Polarizer & Analyzer
Blue, Green, Yellow Filter, Gound Glass
Transmit Illumination Swing-Out Condenser N.A.0.9/0.25 o
24V 100W Halogen Light With Aspherical Condenser
Blue Filter
Accesories YR0251 YR0252
Objective Infinity Plan Achromatic Objectives 40x/0.6/∞/0 (BF/DF) YR0252-op1
Infinity Plan Achromatic Objectives 50x/0.75/∞/0 (BF/DF) YR0252-op2
Polarizing Polarizer & Analyzer, Intergrate Board For Polarizer & Analyzer | YR0252-op3
For Reflect Illumination
Filter Netural Filter ND25 YR0252-op4
Netural Filter ND6 YR0252-op5
Adaptor Photo Adapter, For Nikon or Canon SLR Camera YR0252-op6
C-Mount 1.0x YR0252-op7
C-Mount 0.5x YR0252-op8
Other Specimen Presser

Additional information

Weight N/A
Dimensions 46,3 × 38,4 × 83 cm
Model

YR0251, YR0252

Characteristic Feature

No Features, sliding glass
