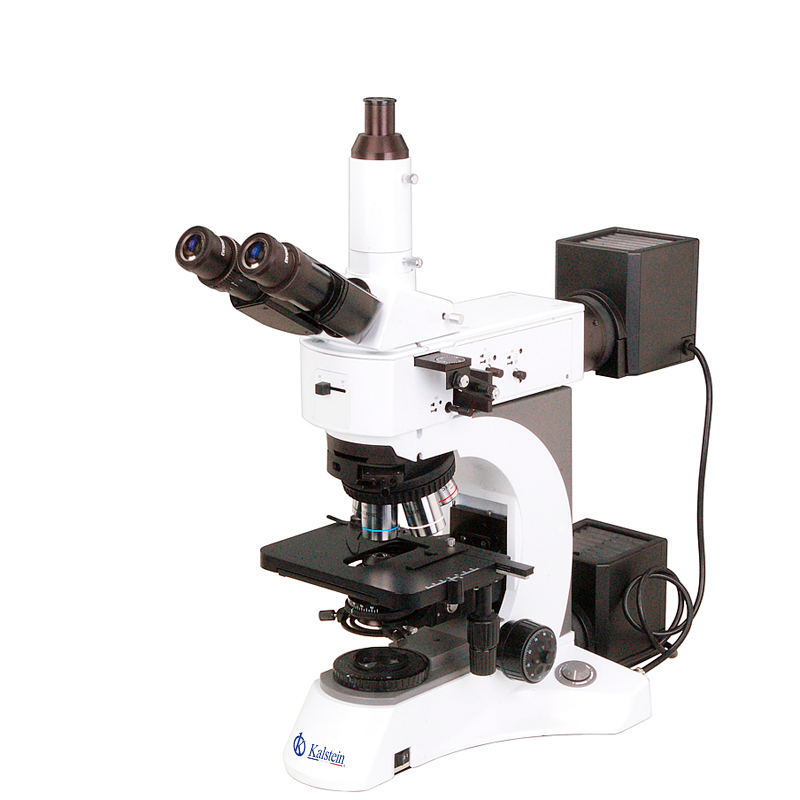

Metallurgical Microscope YR0256

ManufacturerKalstein

Description

The Metallurgical Microscope YR0256 is designed for high-precision laboratory and industrial environments, offering a robust Infinity Optical System that supports Bright Field, Dark Field, DIC, and Polarizing microscopy. With a total magnification range from 50x to 1000x and high-quality Infinity Plan BF/DF objectives, this microscope provides outstanding visual clarity and detail. Its double-layer mechanical stage and safety features like the coaxial coarse and fine tension adjustable focusing make it suitable for handling a variety of sample types and sizes with precision.

Market Price

The Metallurgical Microscope YR0256 is competitively priced, with the market ranging approximately between $6500 USD to $7350 USD. This pricing reflects the advanced technology and high-quality construction that professionals in metallurgical and materials science fields demand for reliable and precise analyses.

Frequently Asked Questions

Can this microscope be used for educational purposes? Yes, while it’s primarily designed for professional use, it’s an excellent tool for advanced studies in educational settings due to its comprehensive optical system.

What is the maximum sample height it can accommodate? The YR0256 can accommodate sample heights up to 30mm or 50mm with its specimen preparation plate.

Advantages and Disadvantages

Advantages:

  • Superior optical clarity and magnification range
  • Versatile functionality with multiple observation methods
  • Robust build quality and ergonomic design

Disadvantages:

  • Requires professional knowledge to operate at full capacity
  • Relatively higher cost compared to basic laboratory microscopes

Product Use in the Field

The Metallurgical Microscope YR0256 is widely used in metallurgy, materials science, and quality control laboratories. It’s indispensable for surface inspections, identifying faults or inclusions in metals, and performing analytical reviews of a material’s characteristics. Its trinocular head facilitates easy integration with digital imaging systems for documenting findings.

Recommendations

For optimal use, ensure the microscope is placed on a stable surface and handle objectives with care to avoid any misalignment. Regular cleaning of the optical components with recommended solutions will maintain lens clarity. Joining Kalstein Plus can offer further benefits and enable users to request quotes or generate them automatically for quick purchasing decisions.

Key Features

  • Infinity Optical System with multiple observation capabilities
  • Trinocular head for digital camera integration
  • Double-layer mechanical stage for precision handling
  • Kohler illumination for bright, consistent lighting
  • Comprehensive focusing and condenser adjustments

Technical Specifications

Model YR0256
Standard Function BF-DF
Upgrade Function BF-DF-PL-DIC
Features Infinity BF+DF DIC
Optical System Infinity Plan
Head Type Seidentopf Trinocular
Head Inclination 30°
Head Rotation Head Rotate 360°
Head Interpupillary 40~75mm
Head Diopter Left Tube Adjustable
Head Light Path E50 : P50
Eyepiece Diameter 30.0mm
Nosepiece Features Inward with DIC Slot
Nosepiece Holes 5 holes
Objective Features LWD Covreless BF+DF DIC
Objective Type Infinity Plan Dark Field Metallurgical
Working Stage Features Size ≥ 140 x 180mm
Working Stage Type 2 Layers Mechanical
Focusing Features Safety Stop Lock Ring Tension Adjustable
Focusing Type Coaxial Coarse & Fine
Condenser
Features
Rack & Pinion center adjustable Iris Diaphragm
Condenser Type Swing – Out
Condenser N.A 0.9/0.25
Light Soruce Features Kohler Illumination Aspheric Collector Halogen 100W
Light Source Type Halogen
Power Supply Type AC 110V-240V

Additional information

Weight 12,5 kg
Dimensions 46,3 × 38,4 × 83 cm
