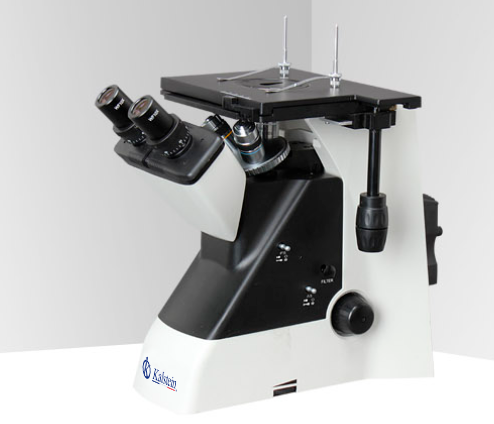

Metallurgical Microscope YR0259 – YR0260

ManufacturerKalstein

Description

The Metallurgical Microscope YR0259 – YR0260 is an essential tool for professionals in the field of metallurgy, offering advanced capabilities for precise examination. With a mechanical platform measuring 180x155mm and a moving range of 40x30mm, this microscope allows detailed sample analysis. It features a coaxial coarse and fine focusing mechanism with a fine adjustment value of 0.002mm, ensuring exceptional accuracy. These models come with multiple eyepiece options (WF10X, WF12.5X, WF16X) and achromatic objectives ranging from 10X to 100X, designed to meet high standards in microscopic observation. The lighting system includes a 12V/20W halogen lamp with adjustable brightness, supported by filters in green, yellow, and color film to enhance visualization.

Market Price

In the competitive market of metallurgical microscopes, prices typically range from $1,700 to $2,500, reflecting the advanced features and precision engineering these instruments offer. Such investments in quality ensure accurate and reliable results, critical for professional applications.

Frequently Asked Questions

What is the difference between the YR0259 and YR0260 models? The primary distinction is in the head configuration: the YR0259 features a binocular head, while the YR0260 comes with a trinocular head, allowing for camera integration.

Are additional accessories available for these models? Yes, various accessories can be purchased separately to enhance functionality, including camera adapters and additional objective lenses.

Advantages and Disadvantages

Advantages of the Metallurgical Microscope YR0259 – YR0260 include its precise focusing mechanism, versatile eyepiece selection, and superior optical clarity provided by the achromatic objectives. However, the need for oil with 100X magnification can be a minor inconvenience for some users who require rapid scanning.

Product Use in the Field

This microscope is invaluable in metallurgy labs, material sciences research, and quality control environments, where detailed material analysis is crucial. Users can identify material structures, detect flaws, and perform routine inspections efficiently.

Recommendations

For optimal use, it is recommended to conduct regular maintenance, including cleaning the lens and adjusting the lighting system. Utilizing the varied eyepiece options depending on the analysis needs can significantly enhance the microscope’s versatility and the user’s experience.

Features

  • Mechanical Platform: 180x155mm, Moving Range: 40x30mm
  • Coaxial Coarse and Fine Focusing Mechanism
  • Multiple Eyepiece Options: WF10X, WF12.5X, WF16X
  • Achromatic Objectives from 10X to 100X
  • Adjustable Halogen Lamp with Filters

Technical Specifications

Model YR0259 YR0260
Head Binocular Head Trinocular Head
Eyepiece WF10X/18
WF12.5X/14
WF16X/11
Nosepiece Achromatic Objective 10X/0.25 WD=6.3mm
Flat field Achromatic Objective 40X/0.65 WD=0.7mm
Flat field Achromatic Objective 50X/0.75 WD=2mm
Achromatic Objective100X/1.25(Oil) WD=0.1mm
Light Source 12V/20W Halogen Lamp, Center And Brightness Are Continuously Adjustable
Filter Green, Yellow, Color film

Additional information

Weight N/A
Dimensions N/A
Model

YR0259, YR0260
