Description

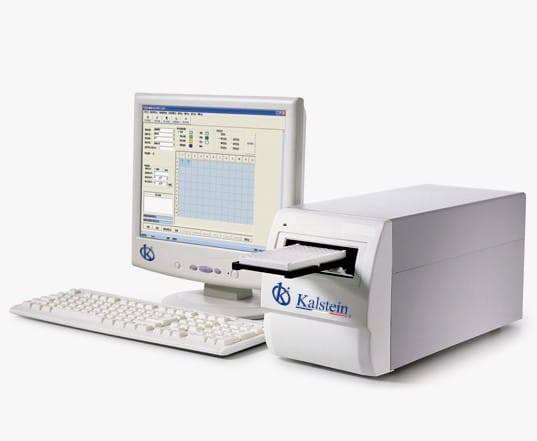

The Microplate Elisa Reader YR05127 is an advanced laboratory instrument designed to facilitate precise and efficient reading of ELISA assays. It features a UV wavelength availability, including 340 nm, and offers three test methods: End Point, Fixed Time, and Kinetic. This reader is equipped with adjustable temperature control, incubation time, and a compact, PC-controlled system compatible with Windows XP. The intuitive, user-friendly software simplifies operation, making it ideal for laboratory environments seeking accuracy and consistency in ELISA measurements.
Market Price
The Microplate Elisa Reader YR05127 is competitively priced within the market, with similar devices typically ranging between 5500 USD to 6300 USD. This ensures that labs receive high-quality performance without excessive cost. For a precise quote, users can generate an automatic quote using the Kalstein Plus platform, providing a seamless purchasing experience.
Frequently Asked Questions
What types of plates can this reader accommodate? The YR05127 is designed for use with 96-well plates, making it versatile for most laboratory applications.
How fast is the reading speed? This reader can process a full plate in just 5 seconds using a single wavelength, ensuring efficiency in high-throughput environments.
Advantages and Disadvantages
The main advantage of the YR05127 is its versatility, offering multiple test methods and UV wavelength options, which accommodate a wide range of assay requirements. Its compact design and adjustable settings for temperature control enhance usability. However, a potential downside is its reliance on Windows XP, which may be limiting for users with newer operating systems.
Product Use in the Field
In practical settings, the YR05127 is employed extensively in clinical and research laboratories for analyzing enzyme-linked immunosorbent assays (ELISAs). Its rapid processing capabilities are particularly beneficial for high-volume workflows, such as in pharmaceutical testing and medical diagnostics.
Recommendations
To maintain optimal performance, it is recommended to routinely calibrate the reader and ensure software updates are installed when available. Proper maintenance and regular cleaning of the 8-channel optical system will prolong the device’s lifespan and ensure continued accuracy.
Features
- UV wavelength capability, including 340 nm
- Three test methods: End Point, Fixed Time, Kinetic
- Adjustable temperature control and incubation time
- Compact design with PC-controlled system
- User-friendly software for simple operation
Technical Specifications
| Model | YR05127 |
| Readout range | 0.000~4.000Abs |
| Plate type | 96-well plate |
| Measure system | 8-channel optical system |
| Wavelength | 405, 450, 492, 630 nm, two more optional filters |
| Bandwidth and accuracy | 8 nm ± 2 nm |
| Light source | Monochromatic LED |
| Reading speed | 5s with single wavelength for whole plate |
| Repeatability | <1% |
| Weight | 6 kg |
| Stability | <0.005Abs/10 min |
| Shaking | 3 shaking modes with variable time |
| Input | Mouse, Membrane keyboard, Touch screen |
| Display | 7″ TFT LCD, 800×480 pixels |
| Printer | Built-in printer, external printer |
| Working conditions | Power supply AC 100~240V, 50/60Hz |
| Temperature 10 °C~35 °C | |
| Humidity 15%~85% | |
| Dimension (mm) | 400(L) x 310(W) x 169(H) |
