Description

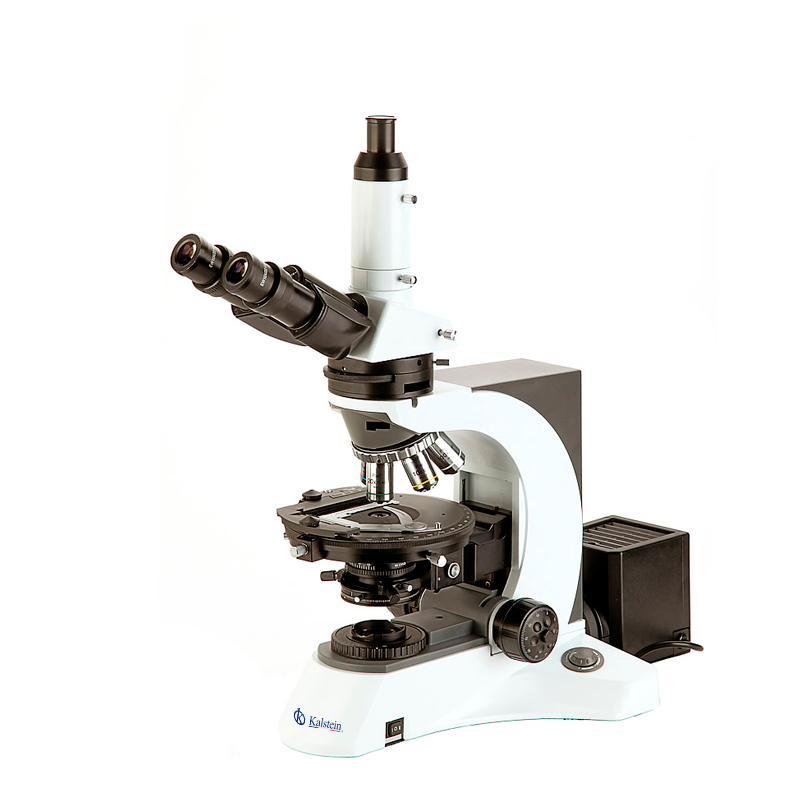

The Polarizing Microscope YR0261 is an advanced optical instrument designed to meet the rigorous demands of professionals across various scientific fields. Equipped with a quintuple nosepiece that is center adjustable, and strain-free infinity plan objectives ranging from 4x to 100x, this microscope offers exceptional precision and clarity. Its round stage, analysers with Bertrand lens, and adaptable halogen illumination system ensure optimal performance for detailed and accurate observations.
Market Price
In the competitive world of microscopy, the market price for high-quality polarizing microscopes like the YR0261 ranges from approximately $4,000 to $4,800 USD. This price reflects the advanced features and durable construction that users expect from professional-grade instruments.
Frequently Asked Questions
What is the purpose of a polarizing microscope? A polarizing microscope is used mainly in geology, biology, and material science to observe samples that exhibit birefringence, such as crystals and minerals.
Can the YR0261 be used with a camera? Yes, the YR0261 comes with a photo adapter and C-mount, allowing attachment of a camera for documentation purposes.
Advantages and Disadvantages
The YR0261 offers several advantages, including high precision optics, versatile observation modes, and robust construction. It is designed for ease of use with smooth focusing and adjustable settings. However, it may be considered bulky for smaller lab spaces and requires a power source for the halogen illumination.
Product Use in the Field
This microscope is well-suited for laboratories and fieldwork that require detailed analysis of birefringent materials. Its capability to switch between orthoscopic and conoscopic observation makes it ideal for characterizing crystal structures and identifying mineral compositions.
Recommendations
For optimal use and longevity, it is recommended to regularly clean the optical components and store the microscope in a stable, dust-free environment. Calibration should be performed periodically to maintain accuracy.
Features

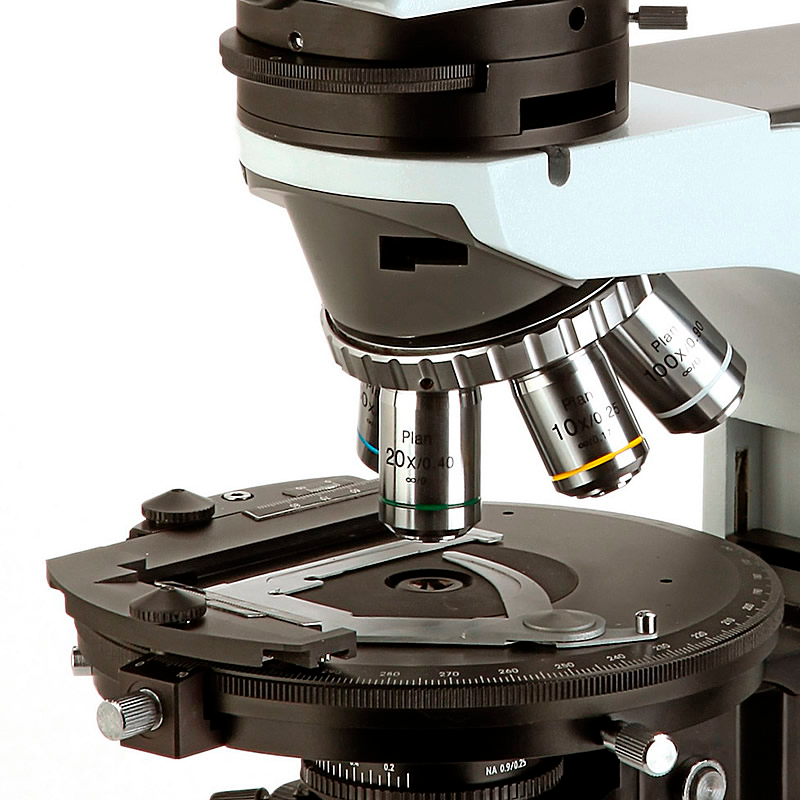

- Quintuple Nosepiece Center Adjustable
- Strain-free Infinity Plan Objectives 4x10x40x100x
- Round Stage Dia.170mm Center Adjustable
- Analyizer Unit With Bertrand Lens, λ Slip, 1/4λ Slip, Quartz Wedge
- Transmit Halogen 24V100W Brightness Adjustable
Technical Specifications
Model | YR0261 | |
Objective | Strainfree Infinity Plan Achromatic Objective 20x/0.4/∞/- W.D. 5.1mm | YR0261-op1 |
Stage | Attachable Stage, Moving Range 30*40mm | YR0261-op1 |
Filter | Netural Filter ND25 | YR0261-op1 |
Netural Filter ND26 | YR0261-op1 | |
Adapter | Photo Adapter | YR0261-op1 |
C-Mount 1.0x | YR0261-op1 | |
Items | YR0261 | |
Optical System | Infinity Optical System | |

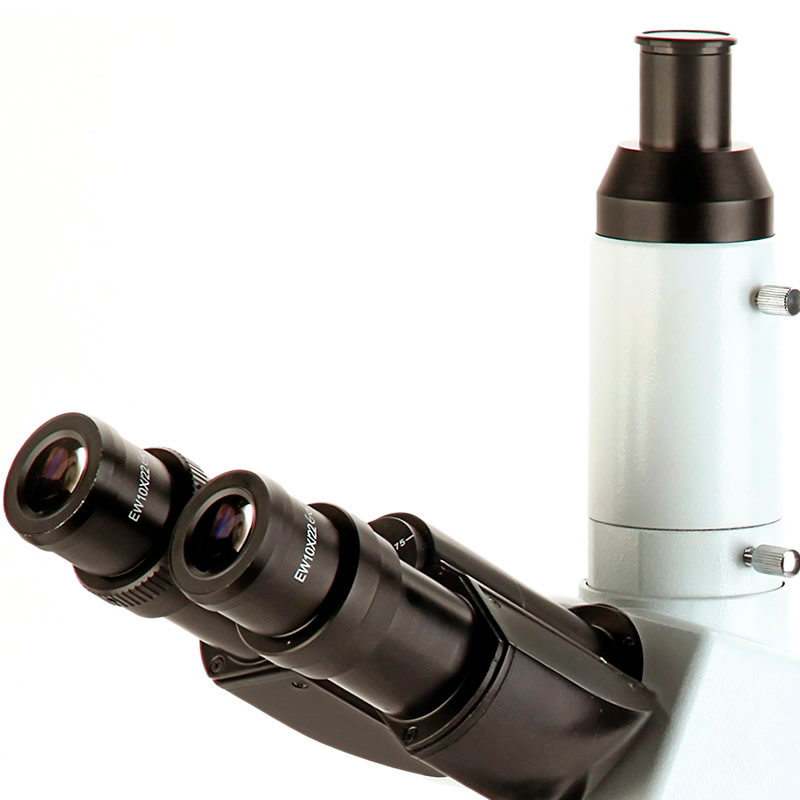

Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable | |
Eyepiece | Plan Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm | |
Plan Eyepiece With Scale of Crosshair | ||
Plan Eyepiece With Cross | ||
Plan Eyepiece With Gridding | ||
Objective | Strainfree Infinity Plan Achromatic Objective | |
4x/0.10/∞/- W.D.17.3mm | ||
10x/0.25/∞/0.17 W.D.10mm | ||
40x/0.65/∞/0.17 W.D.0.54mm | ||
100x/1.25/∞/0.17 W.D.0.13mm | ||
Nosepiece | Backward Quintuple Nosepiece, Center Adjustable | |
Analyzer | 360° Dial Rotation Analyzer, Minimum Scale Reading 0.1° (Vernial Scale) | |
Switch Between Orthoscopic And Conoscopic Observation | ||
Bertrand Lens Postion Adjustable | ||
Optical Compensator: λ Slip (First Class Red), 1/4λ Slip, Quartz Wedge | ||
Working Stage | Polarizing Rotatable Stage, Dia.170mm, Center Adjustable | |
360° Scale, Minimum Division 1° | ||
Minimum Reading 6′ By Means of Vernial Scale | ||
45° Click Stop Knob | ||
Condenser | Strainfree Swing Condenser N.A.0.95/0.25 | |

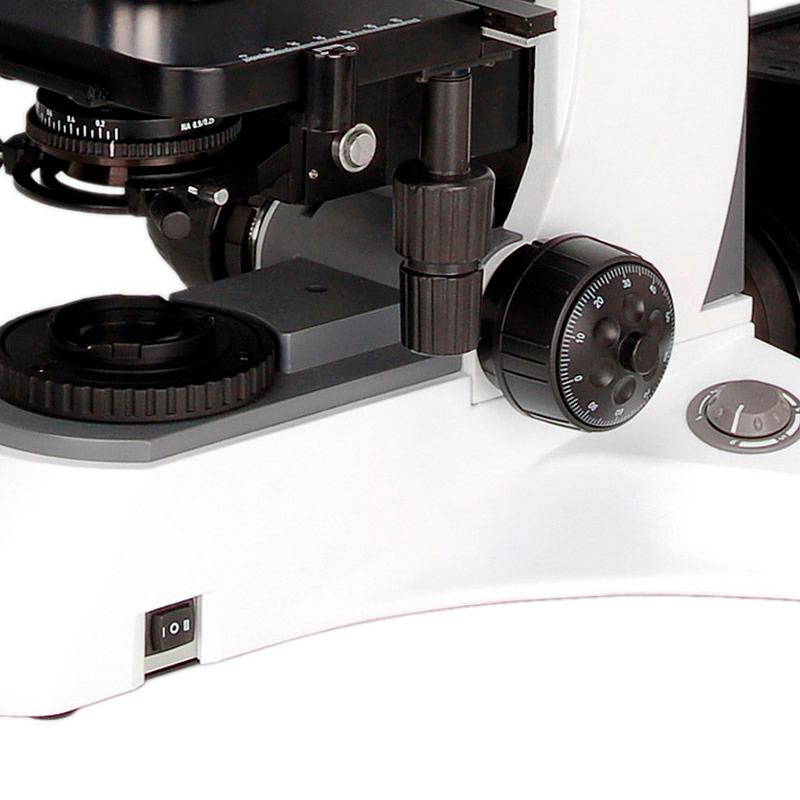

Focusing | Coaxial Coarse & Fine Adjustment, Focusing Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation | |
Polarizer | 360° Rotatable, 0° Position Adjustable | |
Filter | Blue Filter, Dia.45mm | |
Illumination | Transmit Illumination Halogen Lamp 24V100W, Brightness Adjustable |
