Polarizing Microscope YR0262 - YR0263
Polarizing Microscope YR0262 - YR0263 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

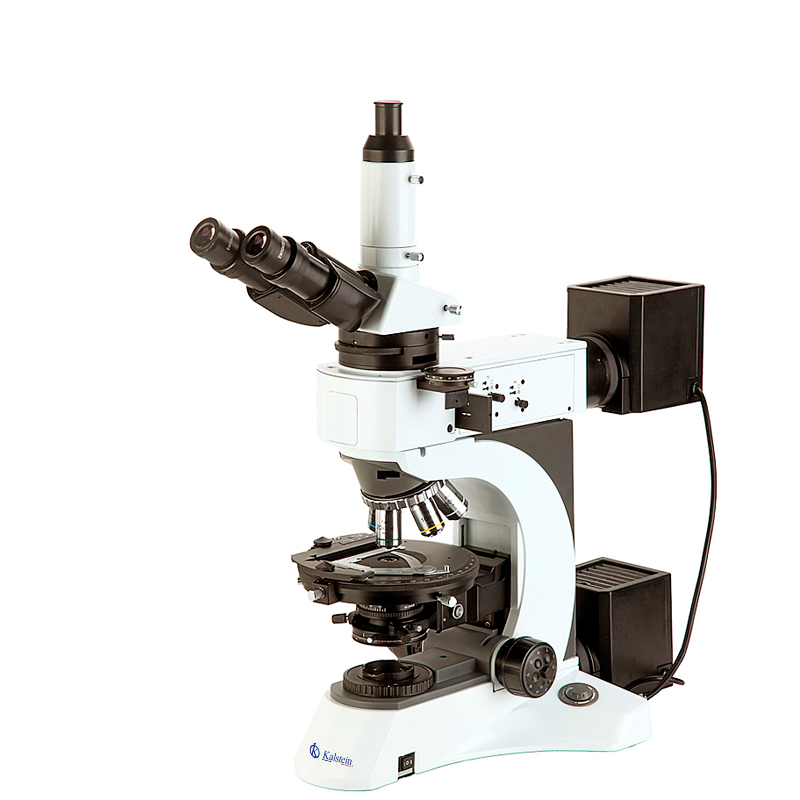

Polarizing Microscope YR0262 - YR0263 is an advanced optical device designed for precise microscopic analysis, ideal for professional laboratories and educational institutions. Equipped with a quintuple nosepiece center adjustable feature and LWD strain-free infinity plan objectives ranging from 5x to 100x, this microscope offers accurate and versatile magnification capabilities. It features a round stage with a diameter of 170mm, center adjustable, and an analyzer unit complete with a Bertrand lens, λ slip, 1/4λ slip, and quartz wedge for comprehensive analysis. Whether you're observing translucent, transparent, or opaque specimens, the transmitted and reflected halogen lights (24V 100W) ensure variable brightness for optimal visualization.
Price in the Market
The Polarizing Microscope YR0262 - YR0263 offers high-end features typically found in professional research settings. Given its advanced specifications, the market price for such a product generally falls between $7500 and $8200 USD. To obtain the most accurate pricing details and potentially exclusive offers, you are encouraged to contact suppliers or utilize platforms like Kalstein Plus for an automatic quote.
Frequently Asked Questions
- What types of samples can be observed with this microscope? The microscope is versatile, suitable for analyzing biological samples, geological minerals, and other materials requiring polarized light.
- Does it come with a warranty? Yes, most suppliers offer a warranty period and technical support.
Advantages and Disadvantages
Advantages: Exceptional optical clarity, versatile adjustment features, robust construction suitable for professional use.
Disadvantages: Higher price point, may require user knowledge or training to maximize usage.
Field Usage
The Polarizing Microscope YR0262 - YR0263 is frequently utilized in geological surveys, material science, and even university-level biological research. Its ability to switch between orthoscopic and conoscopic observation modes makes it a preferred choice in educational institutions for teaching complex microscopy techniques.
Recommendations
To maintain the high performance of the Polarizing Microscope YR0262 - YR0263, users should engage in regular cleaning and calibration. Ensure that the lenses are stored in a dust-free environment and all mechanical components are lubricated periodically for smooth operation. For purchasing, consider generating a quote through Kalstein Plus to better understand the pricing and availability of this advanced microscope.
Features
- Quintuple Nosepiece Center Adjustable
- LWD Strain-free Infinity Plan Objectives 5x10x40x100x
- Analyizer Unit With Bertrand Lens and various compensators
- Adjustable brightness with transmitted and reflect halogen lights
Technical Specifications
| Model | YR0262 | YR0263 | ||||
| Optical System | Infinity Optical System | |||||

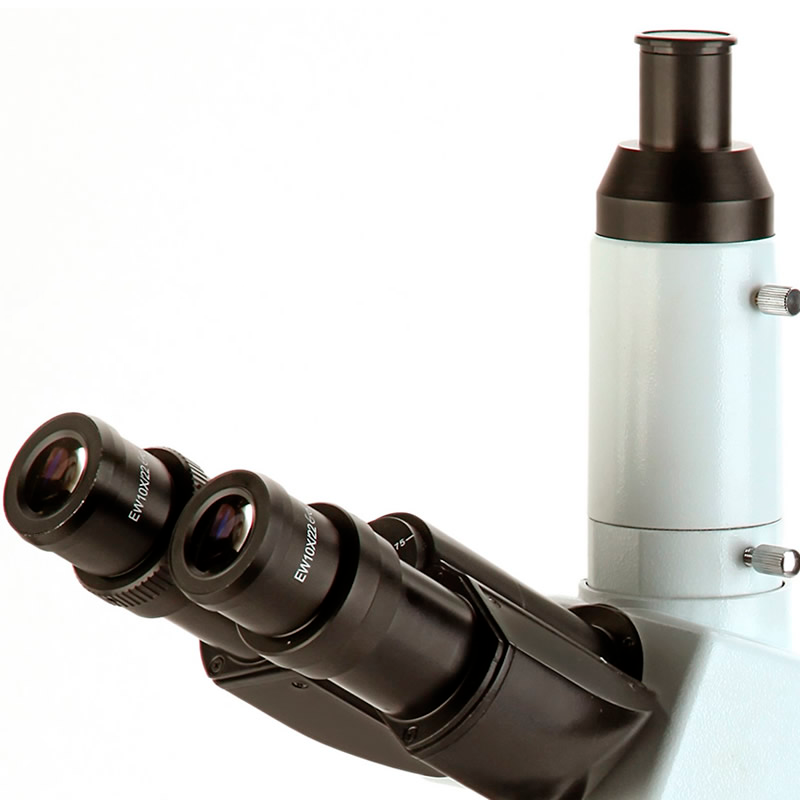

| Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable | |||||
| Eyepiece | Plan Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm | |||||
| Plan Eyepiece With Scale of Crosshair | ||||||
| Plan Eyepiece With Cross | ||||||
| Plan Eyepiece With Gridding | ||||||
| Nosepiece | Backward Quintuple Nosepiece | |||||
| Objective | Strainfree LWD Infinity Plan Achromatic Objective | 5x/0.12/∞/- W.D.15.5mm | ||||
| 10x/0.25/∞/- W.D.10mm | ||||||
| 20x/0.4/∞/0 W.D.4.3mm | ||||||
| 50x/0.75/∞/0 W.D.0.32mm | ||||||
| 100x/0.8/∞/0 W.D.2mm | ||||||
| Strainfree Infinity Plan Achromatic Objective | 40x/0.65/∞/0.17 W.D.0.54mm | - | o | |||
| 100x/1.25/∞/0.17 W.D.0.13mm | - | o | ||||

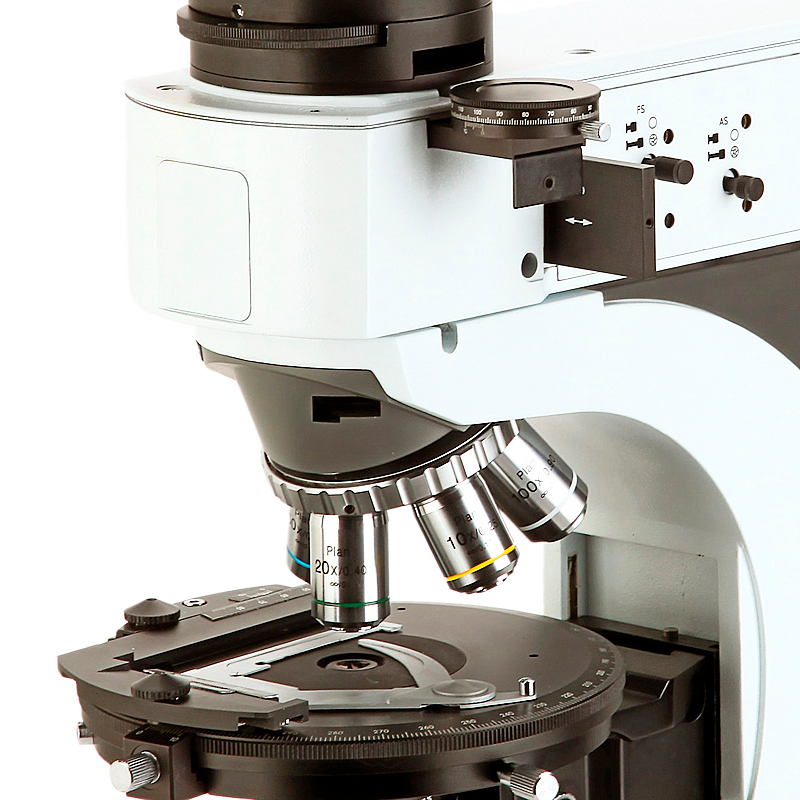

| Nosepiece | Backward Quintuple Nosepiece, Center Adjustable | |||||
| Analyzer | 360° Dial Rotation Analyzer, Minimum Scale Reading 0.1° (Vernial Scale) | |||||
| --Switch Between Orthoscopic And Conoscopic Observation | ||||||
| --Bertrand Lens Postion Adjustable | ||||||
| --Optical Compensator: λ Slip (First Class Red), 1/4λ Slip, Quartz Wedge | ||||||
| Working Stage | Polarizing Rotatable Stage, Dia.170mm, Center Adjustable | |||||
| 360° Scale, Minimum Division 1° | ||||||
| Minimum Reading 6' By Means of Vernial Scale | ||||||
| 45° Click Stop Knob | ||||||
| Condenser | Strainfree Swing Condenser N.A.0.95/0.25 | |||||

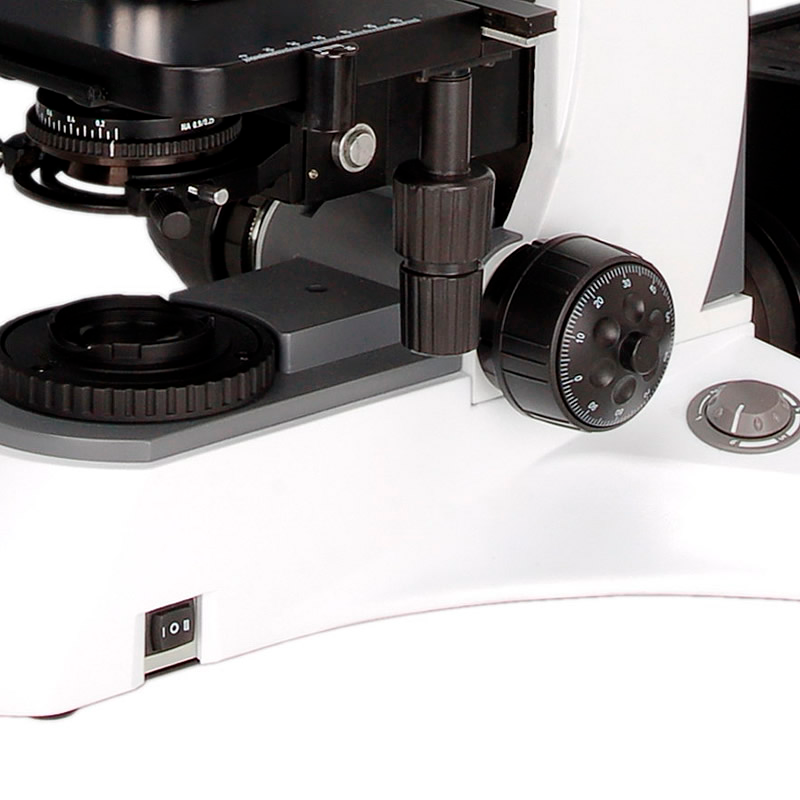

| Focusing | Coaxial Coarse & Fine Adjustment, Focusing Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation | |||||
| Polarizer | For Reflect: Fixed Polarizer | |||||
| For Transmit: 360° Rotatable Polarizer, 0° Position Adjustable | - | o | ||||
| Illumination | Reflect Light Halogen Lamp 24V100W, Brightness Adjustable | |||||
| Transmit Light Halogen Lamp 24V100W,Brightness Adjustable | - | o | ||||
| Blue Filter, Dia.45mm | ||||||
| Reflect, Reflect & Transmit Polarizing Microscope Optional Accessories | ||||||
| Stage | Attachable Stage, Moving Range 30*40mm | YR0263-op1 | ||||
| Filter | For | Netural Filter ND25, Dia.45mm | YR0263-op2 | |||
| Transmit Light: | Netural Filter ND6, Dia.45mm | YR0263-op3 | ||||
| For | Blue Filter, Dia.25mm | YR0263-op4 | ||||
| Reflect Light: | Netural Filter ND25, Dia.25mm | YR0263-op5 | ||||
| Netural Filter ND6, Dia.25mm | YR0263-op6 | |||||
| Adapter | Photo Adapter | YR0263-op7 | ||||
| C-Mount 1.0x | YR0263-op8 | |||||
| C-Mount 0.5x | YR0263-op9 | |||||
Technical specifications

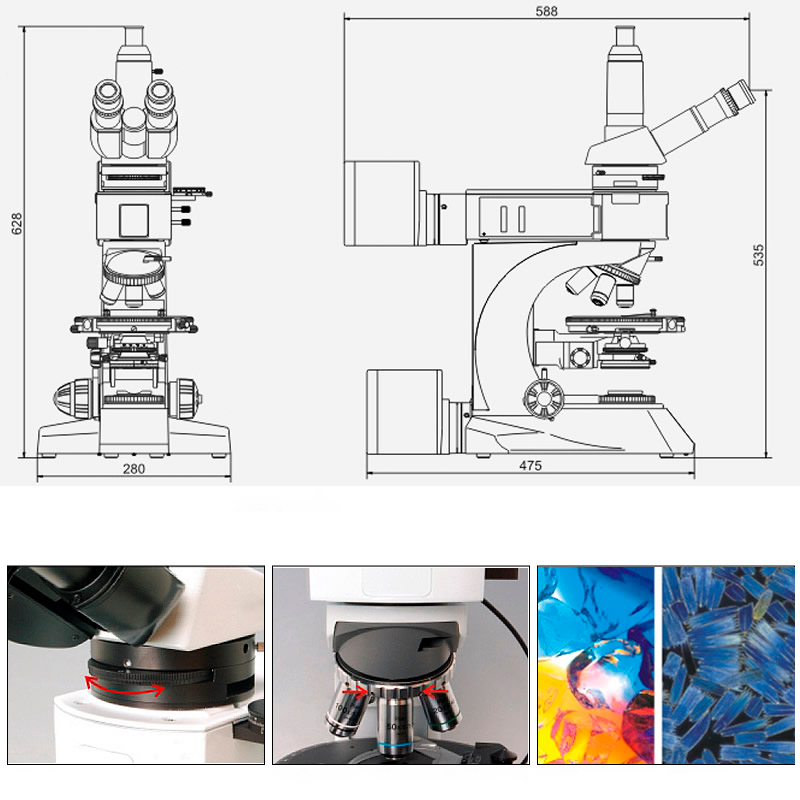

| Dimensions | L 46.3 × W 38.4 × H 83 cm |
|---|---|
| Weight | 16.5 kg |
| Manufacturer | Kalstein |
