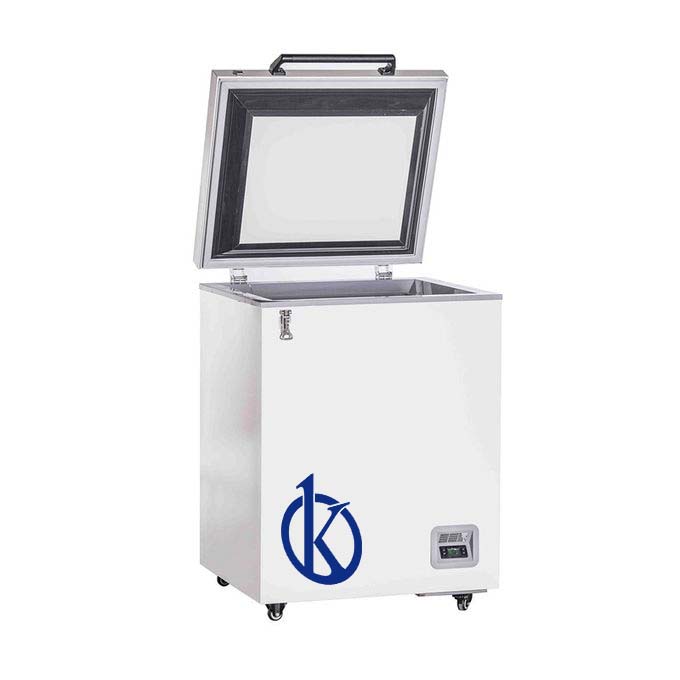

Stainless Steel Small Ultra Low Temperature Freezer YR05313

The YR05313 Ultra-Low Temperature Freezer is an efficient and reliable solution for the safe storage of biological samples in hospitals, laboratories, and research centers. With a capacity of 105 liters, this model is ideal for storing products that require extremely low temperatures. Its adjustable temperature range of -40°C to -86°C, with an accuracy of 0.1°C, ensures that samples such as vaccines, blood plasma, and other biological products are preserved under optimal conditions. Equipped with a high-quality CUBIGEL compressor and an optimized cascade refrigeration system, it provides fast cooling speed with low energy consumption. Additionally, the high-luminosity digital display allows real-time monitoring of the internal temperature, ensuring precise control at all times.

Market Price

The YR05313 Freezer is priced in the mid-high range, with prices typically between $3850 and $3860 USD. This price is competitive considering its advanced features such as precise temperature control, security alarms, and low energy consumption. Its robust construction, high-quality materials, and reliability make it an excellent investment for laboratories and hospitals that require high-precision storage equipment.

Frequently Asked Questions

• Does this freezer maintain the temperature during a power outage? Yes, the YR05313 is equipped with a backup power system that ensures the alarm and temperature display continue functioning for up to 12 hours without external power.
• Is the temperature control system easy to use? Yes, the freezer features a high-luminosity digital display and an easy-to-use temperature control system that allows for precise adjustments between -40°C and -86°C.
• Can I use this freezer to transport biological products? Yes, while it is primarily designed for fixed storage, the YR05313 can be used for transporting biological products as long as it is connected to an appropriate power source, such as an AC/DC port.

Advantages and Disadvantages

Advantages:

• Precise temperature control: Adjustable range from -40°C to -86°C with 0.1°C accuracy.
• Backup battery: The alarm system and temperature display operate for up to 12 hours without electricity.
• Security alarms: Visual and audible alarms for temperature variations, system failures, and open doors.
• High-quality materials: Stainless steel for both interior and exterior, corrosion-resistant and easy to clean.
• Energy efficiency: Eco-friendly, non-flammable refrigerant ensures low energy consumption.

Disadvantages:

• Price: It may be costly for some organizations with limited budgets, although the advanced features justify the investment.
• Maintenance required: The freezer requires preventive maintenance to ensure efficient operation and prolong its lifespan.

Product Use in the Field

The YR05313 is primarily used in research laboratories, hospitals, and blood banks, where the storage of biological products requiring ultra-low temperatures is essential for preservation. Its robust and efficient design makes it ideal for high-demand environments, such as medical research centers, where the integrity of samples must be maintained with utmost care.

Recommendations

To maximize the performance of the YR05313 Freezer, regular preventive maintenance is recommended. Frequently check the internal temperature and ensure that the refrigeration system and temperature alarms are functioning correctly. Additionally, ensure that the doors are tightly closed to prevent unnecessary temperature fluctuations. If the freezer is to be used for transporting biological products, ensure it is properly connected to an appropriate power source and securely fastened during transit.

Technical Specifications

Model		YR05313
Specificaitons	Shelf/drawer QTY	/
	Cooling	Direct cooling
	Defrost	Manual
	Refrigerant	Mixed-gas
	Power Consumption(kWh/24h)	3.8
	Noise(db)	50
	Ambient temperature(℃)	10~32℃
	Temperature range(℃)	-40~-86℃
Cooling system	Compressor brand/QTY	CUBIGEL/1
	Sensor	PTC
	Temperature controller	Microprocessor
	Display	Digital display
Power	Voltage/frequency(V/Hz)	220/50Hz
	Power(W)	500W
	Current(A)	2.9
Material	Inside material	Stainless steel
	Outside material	Color sprayed steel
	Insulation	PURF
Size	Capacity(L/cu.ft)	105/3.70
	NT./GT.(kg)	63.7/68.5
	Exterior size(W*D*H)(mm)	680*580*935
	Interior size(W*D*H)(mm)	480*380*665
	Package size(W*D*H)(mm)	770*705*1090
	CBM	0.59
	20GP/40GP/40HQ	24/51/51
Frozen Racks	Racks	4(11X1,6X1)
	Boxes (2 Inches)	34
	Samples(2ml)	3400
Alarm	High/low temperature	Y
	Power failure	/
	Abnormal voltage	/
	Sensor error	Y
	Filter screen check	/
	Thermostat failure	Y
	Low battery	/
	Condenser clean	/
	High ambient temperature	/
	Door ajar	/
	Power failure backup system(alarm)	12h
Accessories	Castor	Y
	Inside door	/
	Test hole QTY/diameter	1/25MM
	USB port	/
	Chart recorder	/
	Data logger	Optional
	Remote alarm port	/
Optional	CO2 back up system	Optional
	LN2 back up system	Optional
Other	Certification	ISO.CE
