Description

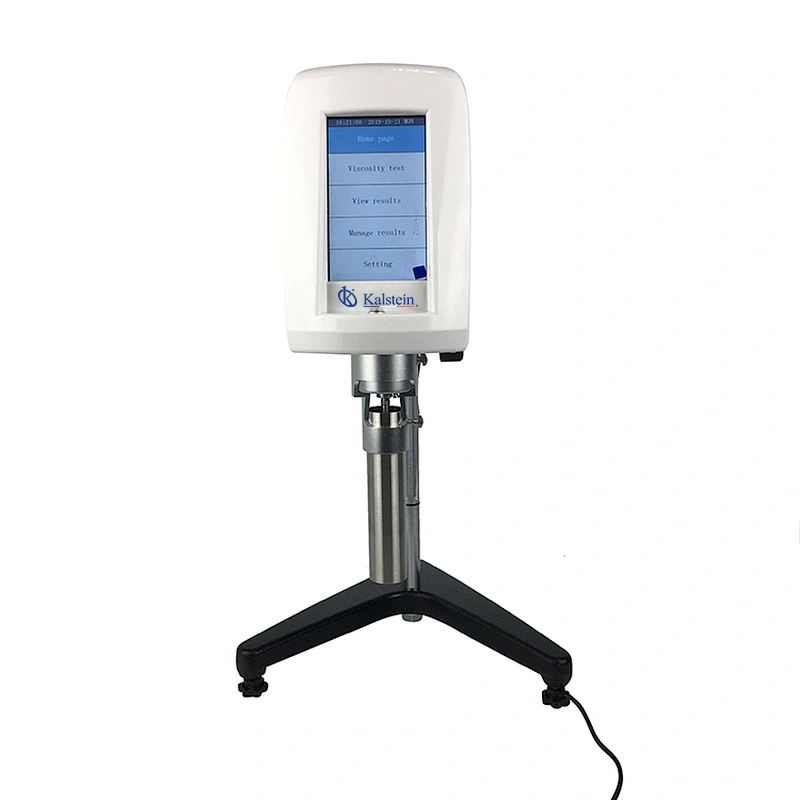

The Touch Screen Brookfield Viscometer YR05858 – YR05859 stands out for its seamless integration of advanced touch-screen capabilities, offering precision and simplicity in viscosity measurement. With its 5-inch color touch display, users can visualize a range of parameters effortlessly. Its design ensures high accuracy and minimal error, making it suitable for various high-viscosity industries like paints, cosmetics, and biochemical products. The device is powered by ARM technology with a built-in Linux system, simplifying the operation through intuitive test programming and data analysis. This viscometer is capable of measuring even the most challenging viscosities with speed variability, providing users with comprehensive data on viscosity, temperature, shear rate, and more.
Market Price
The pricing for viscometers like the Touch Screen Brookfield Viscometer ranges significantly depending on features and specifications. Generally, in the market, you can expect prices to vary from approximately $4,400 to $5,200, offering a competitive rate for such advanced technology. It’s advisable to request a quote to get the most accurate and current price for your needs.
Frequently Asked Questions
Q: What industries is the viscometer suited for?
A: It is optimal for industries dealing with high viscosity materials, including paints, cosmetics, inks, and more.
Q: What is the measurement accuracy of the device?
A: The viscometer has an impressive measurement error margin of ±1% for Newtonian liquids.
Advantages and Disadvantages
The main advantages of the Touch Screen Brookfield Viscometer include its high measurement precision, user-friendly interface, and robust performance against interference. However, a potential disadvantage could be its cost, which may be higher than some users anticipate for their budget. Nonetheless, the value it brings in performance often outweighs the initial investment.
Product Use in the Field
In practical applications, laboratories and production facilities utilize this viscometer for testing the viscosity of samples ranging from food products to industrial coatings. Its responsive touch screen and wide measurement range facilitate detailed analysis, crucial for quality control and research development.
Recommendations
To maximize the utility of the viscometer, regular calibration is recommended. Using compatible accessories like the optional Pt100 temperature probe will also enhance its measurement capabilities. Ensuring the device is used within its specified ranges will prolong its lifespan and maintain its precision.
Features
- 5-inch color touch screen displaying various parameters visually.
- Use of ARM technology with a built-in Linux system for easy operation.
- Automatic calibration ensures high precision with minimal error.
- Comprehensive testing functions with graphical data display.
- Optional accessories for extended functionality.
Technical Specifications
| Model | YR05858 | YR05859 |
| Speed(r/min) | 0.3–100 infinitely variable speed, a total of 998 speed options | |
| Measuring Range | Rotor 1- 4: 10-2000000 mPa.s ULR: 1-1000 Rotor 18: 3 – 10000 Rotor 25: 480 – 1.60000000 Rotor 31: 30 – 100000 Rotor 34: 20 – 200000 |
Rotor 1-4: 10–6,000,000 mPa.s ULR: 1-6000 Rotor 18: 1.5 – 300,000 Rotor 25: 240 – 4.8,000,000 Rotor 31: 15 – 300,000 Rotor 34: 30 – 600,000 |
| Rotor | L1 – L4 (Standard) Enhanced ultra-low viscosity adapter ULR (optional) Small sample adapters (rotors 18,25,31,34)(optional) |
|
| Sample Dosage | Rotor 1- 4: 300 – 400ml ULR: 21ml Rotor 18：7ml Rotor 25: 9ml Rotor 31: 10.5ml Rotor 34:11ml( K = 1000; M = 1000000 ) |
|
| Measurement Error | ±1% (Newtonian liquid) | |
| Repetitive Error | ±0.5% (Newtonian liquid) | |
| Data output Interface | RS232*2pcs, temperature probe interface*1pc | |
| Power | 110V ~240V , 50Hz / 60Hz | |
| Dimension | 350 *350 *450mm | |
| Standard Accessory | Main machine, bracket and the base, rotor L1,L2,L3,L4, rotor protection frame, power adapter. | |
| Optional Accessory | Supper Ultra-low viscosity adapter ULR rotor, temperature sensor, thermostat bath, thermostat cup, printer, standard calibrate silicone oil (5.7mpa.s/336.1mpa,s/5220mpa.s), etc. | |
