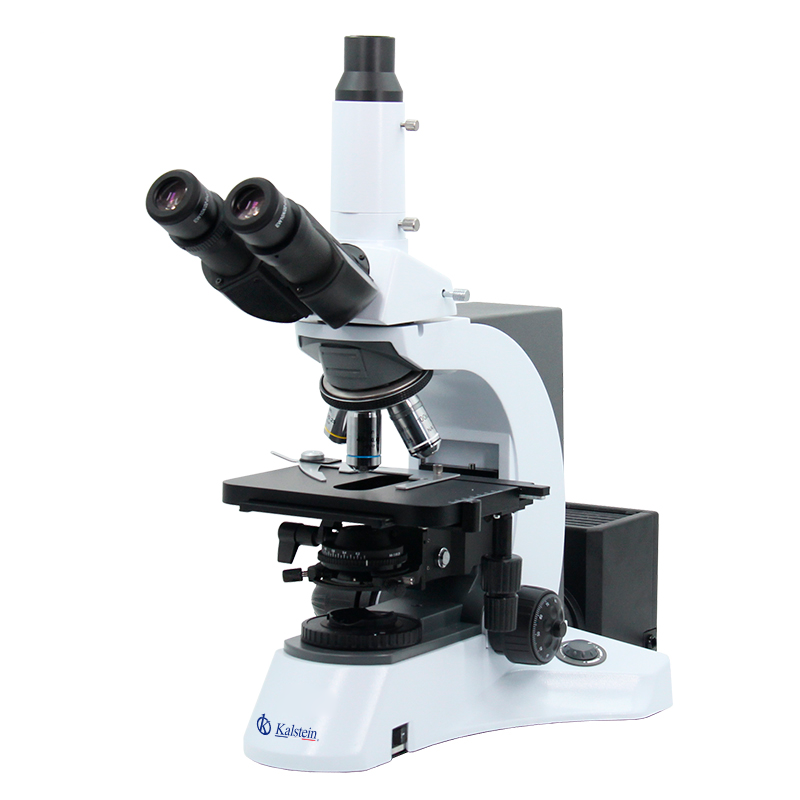

Trinocular Laboratory Microscope YR0231

The Trinocular Laboratory Microscope YR0231 is a top-tier choice for professionals seeking precise imaging. Equipped with a Seidentopf Trinocular Head, this microscope provides a comfortable 30° incline, ensuring ease of use over extended sessions. The backward quintuple nosepiece and Infinity Plan Achromatic Objectives ranging from 4x to 100x deliver exceptional clarity and flexibility, making it ideal for diverse laboratory applications. The advanced halogen lamp and external Kohler Illumination system offer adjustable brightness and consistent lighting conditions, perfect for analyzing specimens with high precision.

Market Price

Laboratory microscopes of this caliber typically range from $1,500 to $5,000, depending on additional features and specific configurations. The YR0231 offers excellent value for money, balancing high-performance optics with durability.

Frequently Asked Questions

Q: Can the microscope be connected to a camera? A: Yes, it includes a Trinocular Adapter and a photo adapter, making it easy to connect to imaging devices. Q: What lighting does it use? A: It uses a 6V30W adjustable halogen lamp with a Kohler Illumination system.

Advantages and Disadvantages

The YR0231 shines with its robust optical system and ergonomic design, ensuring comfort and excellent image quality during extended use. However, its professional-level features and quality might be overwhelming for beginner users.

Field Application

This microscope is highly suitable for various fields, including clinical diagnosis, biological research, and educational purposes. Its precision and versatility ensure reliable performance in laboratory settings and academic environments.

Recommendations

To optimize the use of the YR0231, ensure periodic maintenance and cleaning, especially the lenses and illumination source. Consider equipping the microscope with additional optional accessories for specialized applications, such as dark field or phase contrast kits. For purchasing, request a quotation directly or generate one automatically through Kalstein Plus to take advantage of potential discounts and offers.

Features

- Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable - Infinity Plan Achromatic Objectives (4x, 10x, 40x, 100x) - Double Layer Mechanical Stage with a moving range of 55x75mm - Adjustable brightness with Halogen Lamp 6V30W and Kohler Illumination - Coaxial Coarse & Fine Adjustment with a 24mm focusing range

Technical Specifications

Model	YR0231
Optical System	Infinity Plan Optical System
Function	Bright Field, Optional Dark Field, Polarizing, Phase Contrast, Fluorescent
Head	Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable, Interpupillary 48~75mm, Left Eyepiece Tube Diopter Adjustable
Eyepiece	Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm
Nosepiece	Backward Quintuple Nosepiece, With Slide Slot
Objective	Infinity Plan Achromatic Objective 4x,10x,40x,100x
Focusing	Coaxial Coarse & Fine Adjustment, Focusing Range 24mm, Fine Division 0.001mm, Coarse Stroke 37.7mm
Working Stage	Double Layer Mechanical Stage, 185*142mm, Moving Range 55*75mm
Condenser	Swing Out Condenser N.A.0.9/0.25
Illumination	Halogen Lamp 6V30W, External Kohler Illumination, With Asperical Collector, Brightness Adjustable
Filter	Green, Blue
Adapter	Trinocular Adapter + Eyepiece Tube Photo Adapter Dia.23.2mm
Optional Accessories
Head	Seidentopf Binocular Head, 30° Inclined, Interpupillary 48~75mm	YR0231-op1
	Upgrade to Tilting Binocular Head 5°~35°	YR0231-op2
	Upgrade to Tilting Trinocular Head 5°~35°	YR0231-op3
Eyepiece	Extra Wide Field Eyepiece EW10x/20mm, Eyepiece Tube Dia.30mm	YR0231-op4
	Extra Wide Field Eyepiece EW20x/12mm, Eyepiece Tube Dia.30mm	YR0231-op5
	Extra Wide Field Eyepiece EW15x/16mm, Eyepiece Tube Dia.30mm	YR0231-op6
Objective	Infinity Plan Achromatic Objective 20x	YR0231-op7
	Infinity Plan Achromatic Objective 60x	YR0231-op8
Nosepiece	Sextuple Nosepiece	YR0231-op9
Illumination	Upgrade To Halogen Lamp 24V50W, For Better Dark View	YR0231-op10
	Upgrade To Halogen Lamp 24V100W, For Better Dark View	YR0231-op11
Adapter	0.45x C-Mount	YR0231-op12
Dark Field	Dark Field Condenser, N.A. 0.7~0.9, Dry,	YR0231-op13
	Use With 40x Or Lower Magnification Objective
	Dark Field Condenser, N.A. 1.25~1.36, Immersion,	YR0231-op14
	Use With 100x Objective
	Dark Field Objective, Infinity Plan 100x(Oil)	YR0231-op15
	Dark Field Objective, Infinity Plan 100x(Oil), With Iris Diaphragm	YR0231-op16
Phase Contrast	Infinity Plan Turret Phase Contrast Set	YR0231-op16
	--Infinity Plan Turret Phase Contrast Condenser
	--Infinity Plan Phase Contrast Objective 4x,10x,40x,100x
	--Centering Telescope 10x
	--Green Filter
	Infinity Achromatic Turret Phase Contrast Set	YR0231-op17
	--Infinity Achromatic Turret Phase Contrast Condenser
	--Infinity Achromatic Phase Contrast Objective 4x,10x,40x,100x
	--Centering Telescope 10x
	--Green Filter
Flourescent	EPI-Fluorescent Kit, Upgrade to A16.1028	YR0231-op18
	--Power Supplier 220V/110V Interchangeable, Digital Display
	--100WHBO Ultra Hi-Voltage Spherical Mercury Lamp
	--Barrier To Resist Ultraviolet Light
	--Fluorescence Free Oil
	--Excitation Filter B/G
	EPI-Fluorescent Kit, Upgrade to A16.1028	YR0231-op19
	--Power Supplier 220V/110V Interchangeable, Digital Display
	--100WHBO Ultra Hi-Voltage Spherical Mercury Lamp
	--Barrier To Resist Ultraviolet Light
	--Fluorescence Free Oil
	--Excitation Filter B/G/V/U
	EPI LED Fluorescent Kit, Upgrade To A16.1029	YR0231-op20
	EPI Light 3W LED 465~475nm, B Excite Filter BP460~490,
	EPI Light 3W LED 525~530nm, G Excite Filter BP510~550	YR0231-op21
Polarizing	Polarizing Attachment , Polarizer, Analyzer, Intergrate Device	YR0231-op22
