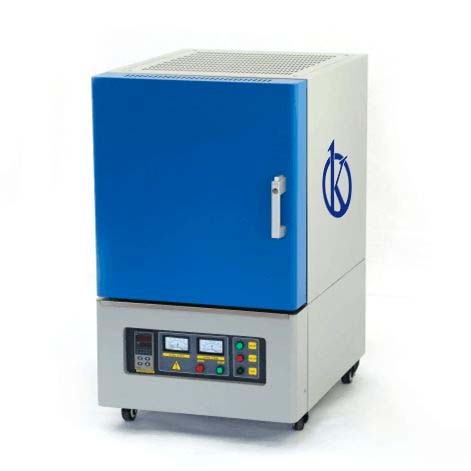

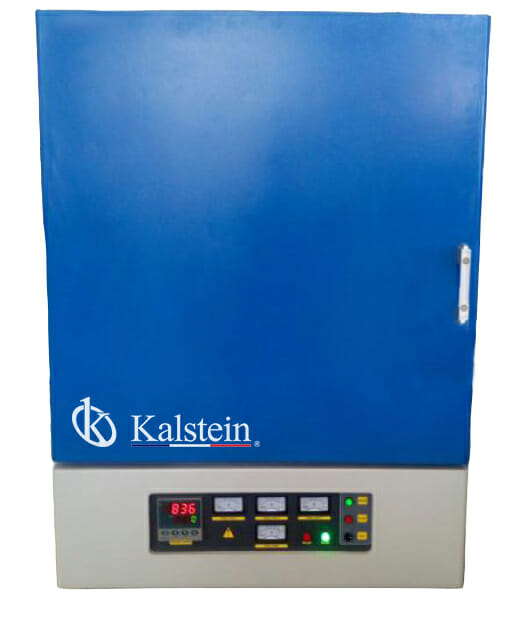

Universal Lab High Temp Box Muffle Furnace YR05272 // YR05284

Manufacturer: Kalstein

Description

The Universal Lab High Temp Box Muffle Furnace YR05272 // YR05284 by Kalstein is designed for professionals seeking high-precision and durable tools in laboratory environments. This series of muffle furnaces boasts models that can achieve temperatures as high as 1700°C, equipped with a user-friendly box structure that makes material handling seamless. Ideal for annealing, material sintering, and compositional analysis, these furnaces excel in university labs, research institutes, and quality control laboratories. Enhanced by a double-layer construction of carbon steel and alumina fiber insulation, energy efficiency is maximized, while the 30-segment PID automatic control ensures precise and secure temperature management.

Market Price

The pricing range for the YR05272 // YR05284 high-temperature muffle furnaces falls between $9,000 and $10,200 USD, depending on the chamber size and specific model features. This competitive pricing highlights the exceptional value offered in terms of durability, safety, and customization. For a tailored quote and to explore financing options, Kalstein Plus provides an easy way to generate a quote with just a few clicks, allowing you to discover all the advantages this laboratory equipment has to offer.

Frequently Asked Questions

  • What is the maximum working temperature?
    The furnace is capable of reaching temperatures up to 1700°C, while for longevity, a continuous working temperature of up to 1600°C is recommended.
  • What safety features does it include?
    Equipped with a safety system, the furnace automatically disconnects when the door is opened and includes integrated overheating protection via the PID controller.
  • Is it possible to customize the chamber size?
    Yes, customization is available for chamber sizes, and options such as LCD touchscreen control or software connectivity for enhanced monitoring can be added.

Advantages and Disadvantages

This muffle furnace excels with its robust structure, energy efficiency, and precise temperature control. An efficient air cooling system enables rapid temperature changes, crucial for processes requiring repeatability and consistency. However, some models can be bulky, presenting a limitation for compact lab spaces. It’s also crucial to adhere to recommended heating rates above 1400°C to ensure optimal durability.

Field Applications

The YR05272 // YR05284 series muffle furnaces are extensively used in material sintering and annealing, quality control testing, and thermal resistance studies, particularly in universities and quality control labs. These furnaces cater to experiments where precise temperature regulation is crucial for achieving reliable results. The versatility of the models, alongside customization options, makes them well-suited for high-level scientific applications.

Recommendations

To extend the lifespan of these muffle furnaces, it is recommended to adhere to heating rate limits, particularly at temperatures exceeding 1400°C. Regular maintenance, including chamber cleaning and thermocouple checks, is necessary to maintain precision and reliability. Opting for accessories like thermal gloves and crucible tongs can also enhance safe and efficient handling. Leverage the capabilities of this premium furnace and enhance your lab processes by obtaining a personalized quote. Use Kalstein Plus to generate a quote and receive technical guidance to configure the model that aligns with your specific requirements.

Features

  • Double-layer structure for enhanced energy efficiency
  • Maximum temperature capability of 1700°C
  • 30-segment PID automatic control for precise temperature regulation
  • Safety systems for door operation and overheating protection
  • Customizable chamber sizes and control options
  • Robust and durable construction

Technical Specifications

Model Chamber Size
(DxWxH)
(cm)
Capacity Max. Temp Continuous Working
Temperature
Heater Thermocouple Working
Voltage
Max.
Power
Weight
YR05272 10x10x10 1 1200 ≦1100°C Fe-Cr-Al-Mo Wire K type 220-380V 1-9KW 70KG
11KG
YR05273 20x15x15 4.5 93kg
YR05274 30x20x12 7.2 84kg
YR05275 30x20x20 12 124kg
YR05276 40x30x30 36 178kg



Model Chamber Size
(DxWxH)
(cm)
Capacity Max. Temp Continuous Working
Temperature
Heater Thermocouple Working
Voltage
Max.
Power
Weight
YR05277 10x10x10 1 1400 ≦1300°C SiC heater S typer 220-380V 1-16KW 61kg
YR05278 20x15x15 4.5 94kg
YR05279 30x20x20 12 127kg
YR05280 40x30x30 36 180kg
YR05281 10x10x10 1 1700 ≦1600°C MoSi2 heater B type 66kg
YR05282 20x15x15 4.5 136kg
YR05283 30x20x20 12 190kg
YR05284 40x30x30 36 310kg

Additional information

Weight N/A
Dimensions N/A
Model

yr05272, yr05273, yr05274, yr05275, yr05276, yr05277, yr05278, yr05279, yr05280, yr05281, yr05282, yr05283, yr05284
