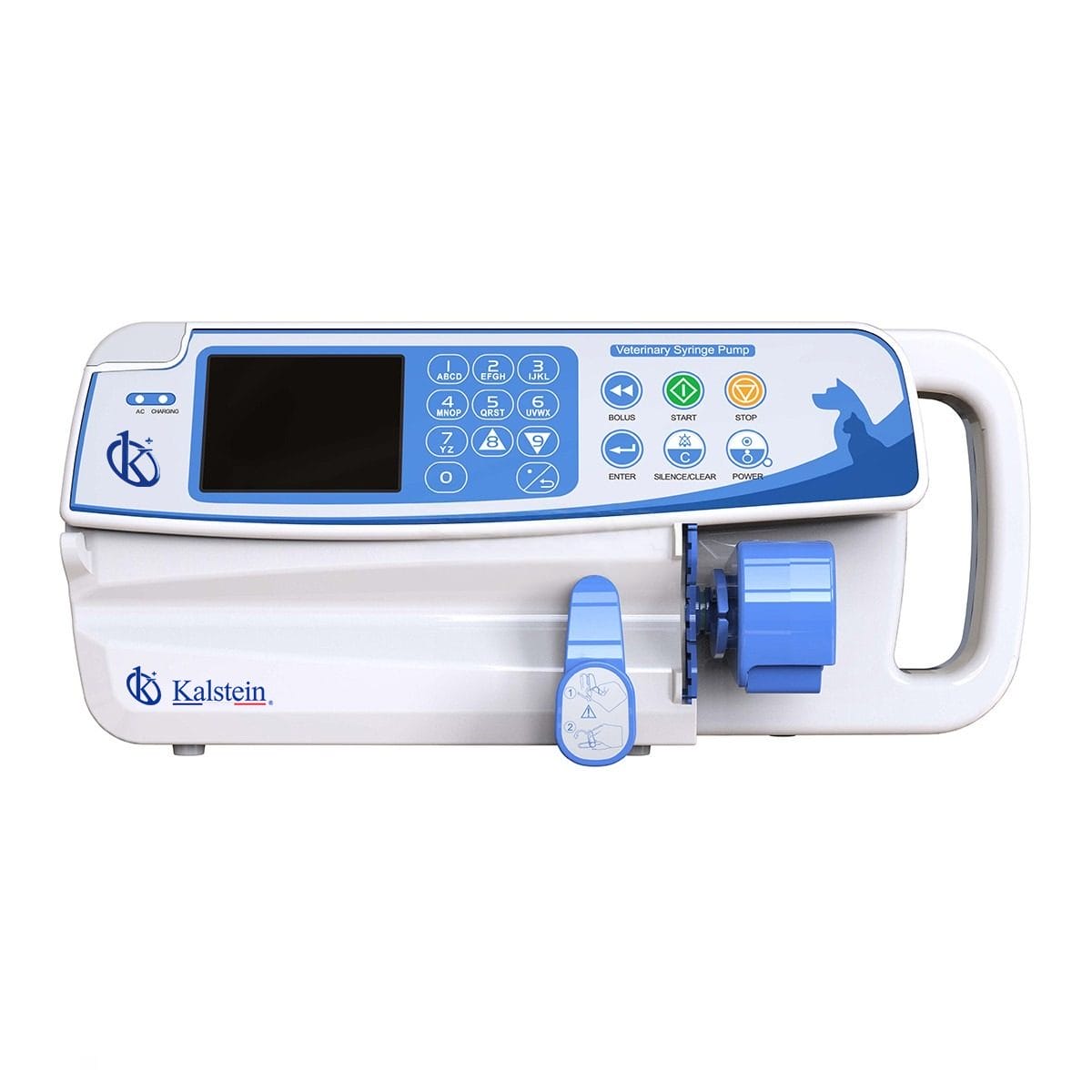

Veterinary Syringe Pump YR06185

ManufacturerKalstein

Description

The Veterinary Syringe Pump YR06185 is a cutting-edge infusion device designed to ensure precise and safe medication delivery in veterinary settings. Featuring a large, colorful LCD display, this syringe pump offers intuitive operation and real-time monitoring. Its unique syringe intelligent recognition technology ensures compatibility with various brands of sterile syringes ranging from 5ml to 60ml. With advanced features like double CPU protection, dynamically displayed pressure, and an anti-bolus function, the YR06185 prioritizes safety and reliability. Ideal for use in both hospital and mobile veterinary environments, it includes a 90-degree rotatable pole clamp for convenient setup on horizontal and vertical bars, adjustable buzzer volume, a robust RS232 interface, and an array of visual and audible alarms to enhance user confidence.

Price in the Market

When searching for high-quality veterinary syringe pumps, cost can play a pivotal role in decision-making. The average market price for such advanced syringe pumps ranges between 800 USD to 1300 USD, providing a balanced consideration between features and budget. This positions the Veterinary Syringe Pump YR06185 as a competitive offering in its class.

Frequently Asked Questions

What syringe sizes are compatible with the YR06185?
The pump is compatible with various brands of sterile syringes: 5ml, 10ml, 20ml, 30ml, 50ml/60ml.

How long can the battery last after a full charge?
The rechargeable Li polymer battery operates for more than 12 hours when fully charged at a flow rate of 5ml/h.

Advantages and Disadvantages

Among its advantages, the YR06185 offers reliable operation with unique syringe recognition and dual CPU safety provisions. Its broad infusion rate range and adjustable alarms enhance its versatility. However, one might consider its 1.8KG weight and the necessity for periodic battery recharging as potential limitations in more remote applications.

Product Use in the Field

The Veterinary Syringe Pump YR06185 is employed widely in veterinary clinics and mobile units to administer medications with precision. Its robust alarm system alerts caregivers to any issues such as occlusion or low battery, ensuring uninterrupted service. Veterinary professionals find its ease of set up and use essential for maintaining efficiency and care quality.

Recommendations

To leverage the full potential of the YR06185, ensure routine calibration and maintenance of the device. Always have replacement syringes on hand for uninterrupted treatment. For professional consultation or to experience it firsthand, request a quote through our Kalstein Plus platform, enabling tailored pricing and service options.

Features

  • Large, colorful LCD display
  • History records for easy review
  • 90-degree rotatable pole clamp for versatility
  • Intelligent syringe recognition technology
  • Pressure dynamically displayed
  • Double CPU for enhanced safety
  • RS232 interface for connectivity
  • Adjustable buzzer volume
  • Anti-bolus function
  • Visual and audible alarms system

Technical Specifications

Model YR06185
Infusion mode Dose mode, Time mode, Rate mode
Applicable syringes Various brands of sterile syringes: 5ml,10ml,20ml,30ml,50ml/60ml
Accuracy ±2% (after syringe correct calibration)
Infusion rate 5ml syringe: 0.1 -150ml/h
10ml syringe: 0.1 -300ml/h
20ml syringe: 0.1 -600ml/h
30ml syringe: 0.1 -900ml/h
50ml syringe: 0.1 -1500ml/h
Volume to be infused (VTBI) 0~1000 ml
Volume Infused (∑) 0~9999.9 ml
KVO rate 0.1-2 ml/h adjustable; default value: 0.1ml/h
Bolus rate 5ml syringe: 100-150ml/h
10ml syringe: 100-300ml/h
20ml syringe: 100-600ml/h
30ml syringe: 100-900ml/h
50ml syringe: 100 -1500ml/h
Alarms Infusion completion, Empty, Occlusion, Near completion, Low battery, Syringe
disengaged, No AC power supply, Battery exhausted, Malfunction etc.
Power supply AC: 100~240V, 50/60Hz
DC: 12V ±1.2V
Power consumption 25VA
Nurse call alarm Optional
Classification Class I, type CF
Dimensions 300(L)x 130(H)x 125 (W)mm, not including pole clamp
Net weight 1.8KG
Waterproof Level IPX3
Occlusion pressure (40.0-160.0)kpa
3 adjustable occlusion pressure settings low, middle and high
Battery Rechargeable Li polymer battery,7.4V, 1900mAh
Can operate more than 12 hours after fully charged at 5ml/h., temperature 25℃
Battery recharge time 10h with power on, 3h with power off
Operating conditions Temperature: 5℃~40℃,
Relative humidity: 10~95%,
Atmosphere pressure: 86~106kPa
Transport conditions Temperature: -20℃~+60℃,
Relative humidity: 10~95%,
Atmosphere pressure: 50~106kPa
Storage conditions Temperature: -20℃~+45℃,
Relative humidity: 10~95%,
Atmosphere pressure: 50~106kPa

Additional information

Weight 3 kg
Dimensions 40 × 22 × 21 cm
