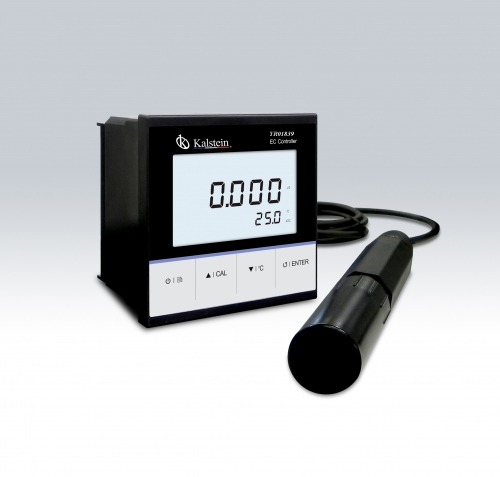

YR01839 Online Conductivity Controller

Manufacturer: Kalstein

Description

The YR01839 Online Conductivity Controller is an affordable and efficient solution for monitoring water quality by measuring conductivity and total dissolved solids (TDS). This industrial-grade controller offers a robust design with a platinum conductivity electrode and supports 1 to 3 point calibrations, ensuring precise monitoring under various conditions. Its automatic temperature compensation mechanism ensures that your measurements remain accurate across a wide range of temperatures, making it a versatile choice for many applications.

Price in the Market

In the competitive market for conductivity controllers, the YR01839 model stands out for its cost-effectiveness. Prices for similar products range from $250 to $500, depending on the features and build quality. This model’s price is competitive, considering its exceptional performance and reliability.

Frequently Asked Questions

Q1: Does the controller support different calibration solutions?
A: Yes, it supports 84µS, 1413µS, 12.88mS, and 111.8mS calibration solutions.

Q2: Can I adjust the temperature coefficient?
A: Yes, the temperature coefficient is selectable from 0.0 to 10.0%/°C.

Advantages and Disadvantages

Advantages:
– Budget-friendly option with advanced features.
– Accurate and reliable readings thanks to automatic temperature compensation.
– Flexible calibration with multiple calibration points and solutions.

Disadvantages:
– May require technical knowledge for initial setup and configuration.
– Limited to specific types of electrodes, which may not suit all applications.

Product Usage in the Field

This online conductivity controller is ideal for industries such as wastewater treatment, chemical processing, and food and beverage manufacturing where monitoring water quality is crucial. Its simple installation and intuitive configuration make it suitable for both new and existing systems, providing real-time analysis to ensure optimal conditions.

Recommendations

To maximize the utility of the YR01839 Controller, users should perform regular calibrations and checks to ensure ongoing accuracy. Consider integrating the controller with a comprehensive water quality monitoring system for automated alerts and data recording. For convenience, you can request a quote or generate an instant quotation via the Kalstein Plus platform to obtain the best deal for your needs.

Features

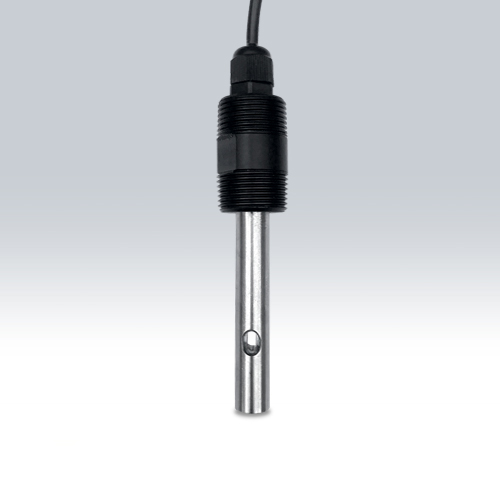

  • Inline conductivity controller with a platinum conductivity electrode.
  • 1 to 3 point calibration with automatic recognition of conductivity standards.
  • Selectable cell constant, temperature coefficient, and TDS conversion factor.
  • Automatic temperature compensation ensures accurate readings throughout the range.
  • Configuration menu for calibration points, alarm limits, hysteresis value, 4 to 20 mA output, and more.
  • Factory default reset function for easy restoration.

Technical Specifications

Model YR01839
Conductivity
Range 0.01 to 20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm
Resolution 0.001, 0.01, 0.1, 1
Accuracy ±1% F.S.
Calibration Points 1 to 3 points
Calibration Solutions 84uS, 1413uS, 12.88mS, 111.8mS
TDS
Range 0 to 10.00, 100.0, 1000ppm, 10.00, 200.0ppt
Resolution 0.01, 0.1, 1
Accuracy ±1% F.S.
TDS Factor 0.1 to 1.0 (default 0.5)
Temperature
Range 0 to 100°C/32 to 212°F
Resolution 0.1°C/0.1°F
Accuracy ±1°C/±1.8°F
Offset Calibration 1 point
Calibration Range Reading ±10°C
Communication
Signal Output 4 to 20mA
Load Max. 500Ω
Low or High Alarm 0.02uS/cm to 20.0mS/cm, selectable
Communication Interface RS485
Connection Terminals Detachable screw terminals
General Specifications
Temperature Compensation 0 to 100°C/32 to 212°F, automatic
Temperature Coefficient Linear (0.0 to 10.0%/°C)
Reference Temperature 25°C
Cell Constant K=0.1, 1, 10
Environmental Conditions Ambient temperature <60°C, relative humidity <80%
Power DC24V
Dimensions 96(L)×96(W)×75(H)mm
Weight 350g

Additional information

Weight 1,5 kg
Dimensions 26 × 20 × 11 cm
