Rotary Evaporator
The rotary evaporator, often referred to as a rotavap, is a vital piece of equipment in laboratories for efficiently evaporating solvents. It employs a rotating flask to create a thin film of liquid, enhancing the evaporation process while minimizing thermal degradation of sensitive compounds.
Designed for precision and efficiency, rotary evaporators are commonly used in chemical synthesis, distillation, and separation processes. By understanding their functionality and applications, laboratories can optimize their workflows and achieve better results in their experiments.
Types of rotary evaporator your laboratory may need

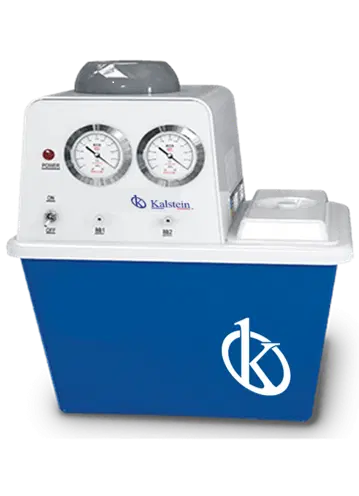

Vacuum Pump
A vacuum pump is an essential component of rotary evaporators, enhancing their efficiency by reducing the pressure within the system. This allows solvents to evaporate at lower temperatures, which is particularly beneficial for heat-sensitive materials.
Choosing the right vacuum pump can greatly impact the performance of your rotary evaporator. Ensure compatibility with your system and consider factors such as pumping speed and ultimate vacuum level for optimal results.
What you should know before selecting a rotary evaporator and making an investment
Key factors to consider
When selecting a rotary evaporator, consider its capacity, heating method, and control features. Larger capacities are essential for high-throughput applications, while digital controls can enhance precision and ease of use.
Additionally, check the compatibility with different solvents and ensure that the materials used can withstand the operational conditions to avoid any chemical reactions or damage.
Market price range
The price of rotary evaporators can vary significantly based on brand, features, and specifications. Basic models may start at a few hundred dollars, while advanced systems with high-performance features can cost several thousand.
It's essential to assess your laboratory's specific needs and budget when evaluating options to ensure a reasonable investment that aligns with your operational requirements.
Value for money
Investing in a rotary evaporator is often justified by its efficiency and reliability. A more expensive model may offer superior features such as automated controls, better safety mechanisms, and higher durability.
Evaluate the long-term benefits and potential cost savings associated with higher-quality equipment to determine the best value for your laboratory's operations.
Expected lifespan based on use and maintenance
The lifespan of a rotary evaporator depends on usage frequency and maintenance practices. Regular cleaning and servicing can significantly prolong the equipment's life.
Understanding the manufacturer's guidelines and ensuring proper handling can keep your rotary evaporator functioning optimally for many years, providing consistent performance throughout its lifespan.
ROTARY EVAPORATOR KALSTEIN
Discover rotary evaporator for your laboratory
Explore our range of rotary evaporators designed specifically for laboratory needs. These units offer reliability, efficiency, and precision in solvent evaporation, making them essential tools for research and development.
Rotary Evaporator YR02306
The Rotary Evaporator YR02306 is an indispensable tool for laboratories focusing on the evaporation, distillation, and separation of chemicals. This s
View productRotary Evaporator YR02307 // YR02310
The Rotary Evaporator YR02307 // YR02310 is designed with a large capacity and wide opening of the evaporating flask, providing an extensive evaporati
View productOur best-selling rotary evaporator

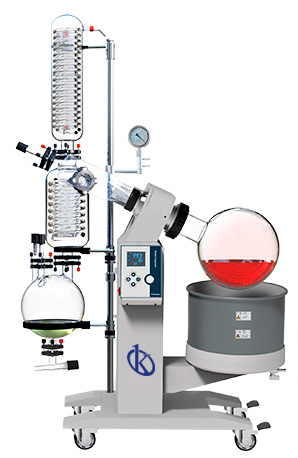

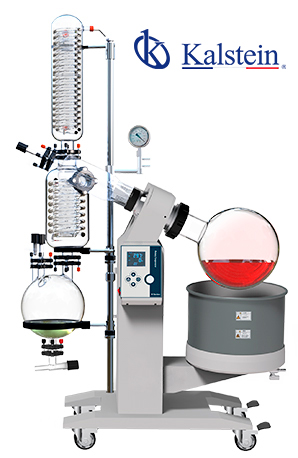

Rotary Evaporator YR02307 // YR02310
The Rotary Evaporator YR02307 // YR02310 is designed with a large capacity and wide opening of the evaporating flask, providing an extensive evaporation surface. As the flask rotates and is consistently heated by its water bath, the system ensures efficient solvent evaporation under vacuum conditions. Ideal for pilot-scale production, this equipment is pivotal in biological engineering, the pharmaceutical and chemical industries, as well as food processing. Typically, it integrates seamlessly with complementary devices such as water circulating vacuum pumps, diaphragm vacuum pumps, recirculating chillers, constant temperature circulators, and low-temperature circulating pumps.
Market Price
Considering similar products in the market, the Rotary Evaporator YR02307 // YR02310 is competitively priced. The average market range for such advanced rotary evaporators typically spans from $11,000 to $11,900 USD, reflecting the balance of innovation, reliability, and robust performance offered by this equipment.
Frequently Asked Questions
What is the main application of the Rotary Evaporator YR02307 // YR02310?
This rotary evaporator is primarily used for efficient and gentle removal of solvents from samples by evaporation, making it ideal for use in laboratories for chemistry, biology, and pharmaceuticals.
Is this evaporator equipped with safety features?
Yes, it includes a water bath jacket that protects operators from scalding hazards associated with hot liquids.
Advantages and Disadvantages
The Rotary Evaporator YR02307 // YR02310 boasts several advantages, including patented double sealing technology ensuring optimal vacuum conditions, and a corrosion-resistant Teflon discharge valve. However, users should consider the initial investment cost and ensure compatibility with their existing laboratory systems.
Usage in the Field
This equipment excels in research and production settings, enabling users to efficiently distill solvents and compound extractions in large volumes. It is tailored for laboratories conducting large-scale organic synthesis or biochemical research.
Recommendations
For optimal results, it is recommended to pair the evaporator with a compatible vacuum pump and chiller. Regular maintenance, including cleaning and inspection of seals and joints, will ensure prolonged operational life and performance consistency.
Features
- Patented technology of double sealing ensures high vacuum levels.
- Automatic switch valve for continuous collection and efficient distillation without vacuum loss.
- Corrosion-resistant Teflon discharge valve ensures purity and integrity of results.
- Comprehensive safety features with water bath jacket.
- Available in varied capacities, supporting diverse laboratory needs.
Technical Specifications
| Model | YR02307 | YR02308 | YR02309 | YR02310 | |||||
| Evaporating flask | 5L, flange opening: Φ50mm | 10L, flange opening: Φ125mm | 20L, flange opening: Φ125mm | 50L, flange opening: Φ125mm | |||||
| Receiving flask(L) | 3 | 5 | 10 | 20 | |||||
| Speed-regulation | DC stepless speed-regulation | ||||||||
| Power supply | 220V-240V, 50/60Hz | 3~, 380V, 50Hz | |||||||
| Overall power(kW) | 2.3 | 3.8 | 6.3 | 6.3 | |||||
| Rotation speed (rpm) | 20~140 | 20~130 | 20~130 | 20~110 | |||||
| Power of motor(w) | 250 | 250 | 250 | 250 | |||||
| Condenser | Vertical type double coil pipe | Vertical type, Main + auxiliary triple-circulating cold traps | |||||||
| Bath material | Stainless steel 304 | ||||||||
| Temperature range | RT~99℃ | ||||||||
| Temperature display | Digital display | ||||||||
| Sealing | 20mbar/h | ||||||||
| Evaporating Speed (L/h) | Water | 2.0 | 3.2 | 5.0 | 9.0 | ||||
| Ethanol | 5.4 | 8.6 | 14.3 | 24.5 | |||||
| Lifting function | Motorized Lift | Motorized lift + Manual lift | |||||||
| Elevating stroke(mm) | 0~150 | 0~160 | 0~190 | 0~180 | |||||
| Dimensions(mm) | 835W×400D×1090H | 990W×550D×1655H | 1195W×635D×2070H | 1345W×770D×2140H | |||||
| Net Weight(kg) | 60 | 85 | 115 | 200 | |||||
