Patient and Fetal Monitor
Due to the importance of this equipment, they are designed to offer facilities for use, observation and communication necessary for medical personnel, in addition to its structure and design, each parameter is divided into a simple and separate module that, if it presents any failure, can be replaced automatically. individually by a simple mechanical operation.
All the basic functions are easy to configure in a minimum of time, easy to connect to the patient, adjust the scales, alarm limits, select the information to be displayed including alarms, parameters, silence times, the display on the screen must be clear At a distance and from various angles, the curves and numerical information produced by the parameters should be obvious, the controls for critical functions and alarms should not be confusing, but simple and obvious, the monitor should be of a size that is convenient within of the application area.
PATIENT AND FETAL MONITOR KALSTEIN
At Kalstein you can find the ideal Patient and Fetal Monitors for The Medical Sector

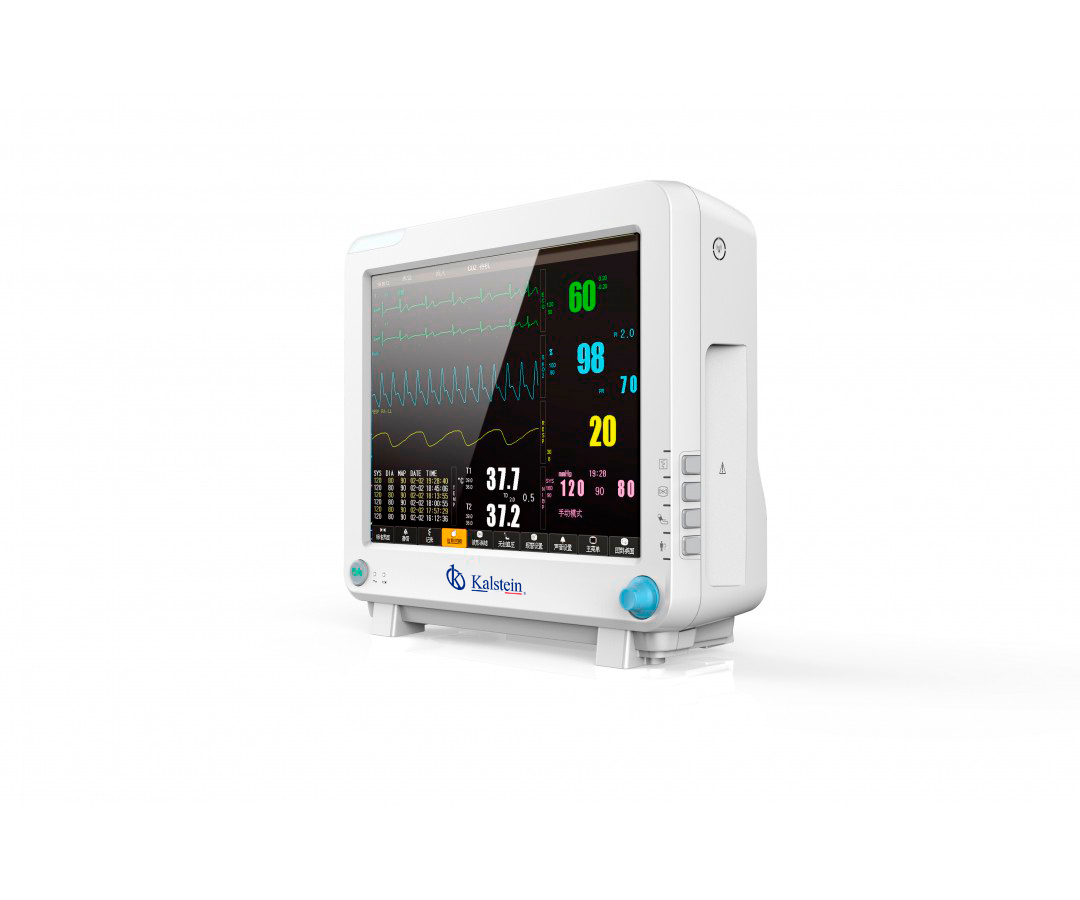

Bedside Monitor YR02173
12.1 inch touch screen 5-lead ECG, RESP, Temp (Single Channel), COMEN SpO2, NIBP, HR Dual-IBP, EtCO2, AG, ICG, C.O., BIS, Nellcor/Masimo SpO2, 3/12-lead ECG, Thermal Recorder, Dual-Temp, Suntech NIBP, Trolle...
Bedside Monitor YR02174
15 inches Multi-parameter Patient Monitor Standard Configuration: SpO2, RESP, NIBP, PR/HR, ECG, 2-TEMP Options: 12 lead ECG, IBP, 2-IBP, ETCO2, Printer, Wall mount, Trolley, Touch screen Technical Specifi...
Multi-parameter patient monitor YR02178 // YR02179
LCD screen 2 slots Semi-Modular Parameter Patient monitor can be used in OT and ICU. Standard parameters: ECG, SPO2, TEMP, NIBP, RESP, PR/HR Standard Configuratio...
Doppler Fetal Monitor YR02180
17-inch LCD screen 2 slots Semi-Modular Parameter Patient monitor can be used in OT and ICU. 6 standard parameters: ECG, SPO2, TEMP, NIBP, RESP, PR/HR Standard Configuration: 5-lead ECG, RESP, Dual-Tem...

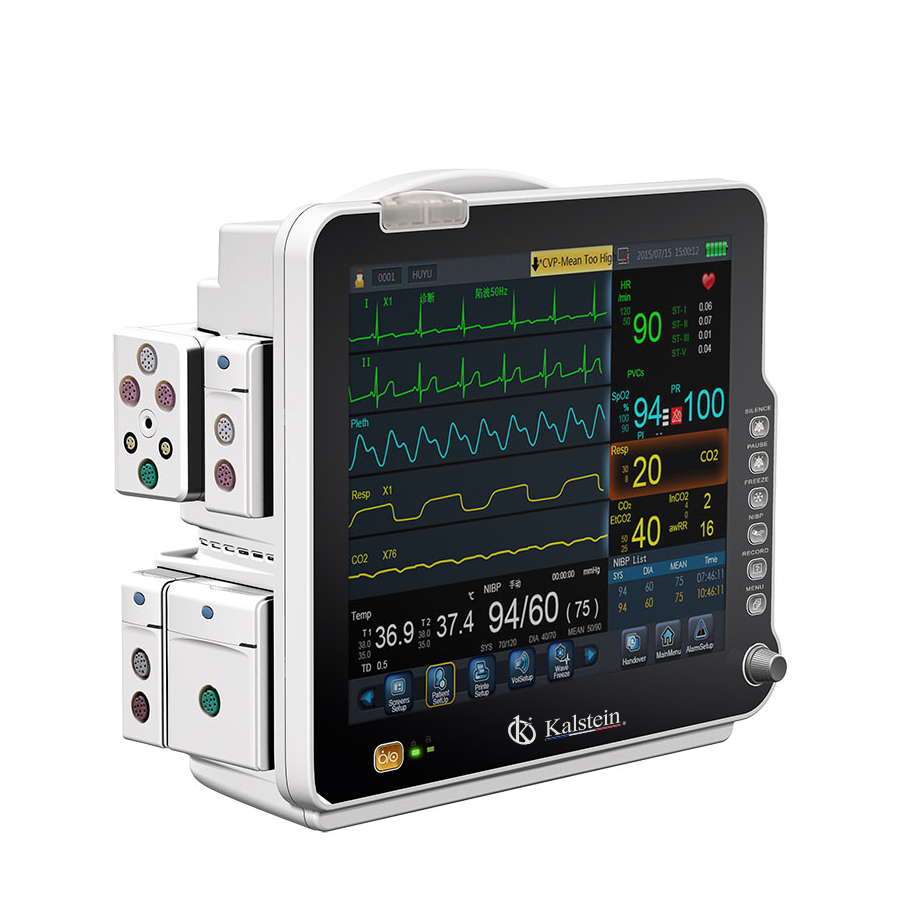

Our Patient and fetal Monitor best seller
17 inch LCD screen full Modular Parameter Patient monitor can be used in OT and ICU.
Standard parameters: ECG, SPO2, TEMP, NIBP, RESP, PR/HR
Standard Configuration: 5-lead ECG, RESP, Dual-Temp, SpO2, NIBP
Optional: Masimo/Nellcor SpO2, Dual-IBP, AG, C.O., BIS, 3/12-lead ECG, Suntech NIBP, EtCO2, Thermal Recorder, ICG, Trolley, Wall mount
| Model | YR02177 | ||
|
ECG
|
Lead mode | 5 Leads(RA,LA,LL,RL,V) | |
| Connection method | I, II, III,AVR,AVL,AVF,V | ||
| Lead Mode | 3 Leads (RA,LA,LL) | ||
| Connection method | I, II,III | ||
| Waveform | 1ch | ||
| Gain | x250, x500, x1000, x2000 | ||
| HR Range | Adult: 15~300bpm | ||
| Neo/Ped | 15~350bpm | ||
| Accuracy | ±1% or ±1bpm | ||
| Resolution | 1bpm | ||
| Sensitivity | Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | |||
| Measure Range | -2.0~+2.0mV | ||
| Measure Accuracy | -0.8mV~+0.8mV | ||
|
Heart Rate
|
Measuring range | 10~300bpm | |
| Accuracy | ±1bpm | ||
| Resolution | 1bpm | ||
| Sensitivity |
Respiration
|
Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | ||
| Bandwidth | 0.1~2.5Hz | ||
| Respiration Rate | Adult: 2~120BrPM | ||
| Neo/Ped | 0~150BrPM | ||
| Resolution | 1 BrPM | ||
| Accuracy | ±2 BrPM | ||
| Alarm | 10~40S | ||
|
NIBP
|
Method | Oscillometric | |
| Mode | Manual/Auto/STAT | ||
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | ||
| Measuring Period in STAT Mode | 5 Min | ||
| Pulse Rate Range | 40~240bpm | ||
| Alarm Type | SYS, DIA, MEAN | ||
| Resolution | |||
| Pressure | 1mmHg | ||
| Accuracy | Maximum Mean error: 5mmHg | ||
| Maximum Standard deviation | 8mmHg | ||
|
SPO2
|
Display | Number of SPO2,waveform of capacity,Pulse | |
| Measuring range | 0~100% | ||
| Resolution | 1% | ||
| Accuracy | 70~100% (±2%) | ||
| Alarm system | Audio-video alarm | ||
| Pulse rate range | 0~300bpm | ||
|
TEMP
|
Channel | 2 | |
| Measuring and Alarm Range | 0~50ºC | ||
| Resolution | 0.1ºC | ||
| Accuracy | 0.1ºC | ||
| Actualization interval | about 1 Second. | ||
| Average Time Constant | <10 Second. | ||
Analysis of the best Patient and Fetal Monitors for The Medical Sector
Features of an Intensive Care Patient Monitor
Some tests for patients in intensive care units depend on direct observation and physical examination, and are done intermittently, with a frequency that depends on the pathology
How is a patient monitor explained?
The patient monitor is a multifunctional instrument designed to monitor vital functional signs of adult and child patients. They are in hospitals and clinics and should...
What are the criteria for selecting an ideal patient monitor?
Patient monitors, also called vital signs monitors, are essential medical equipment in every health care facility. They have the function...
Patient Monitor, How To Read On A Vital Signs Monitor?
This medical equipment, needed in clinics and hospitals, is used to monitor and control the vital signs of the patient connected to the apparatus and which requires continuous...
Catalog of models of Patient and Fetal Monitors on offer

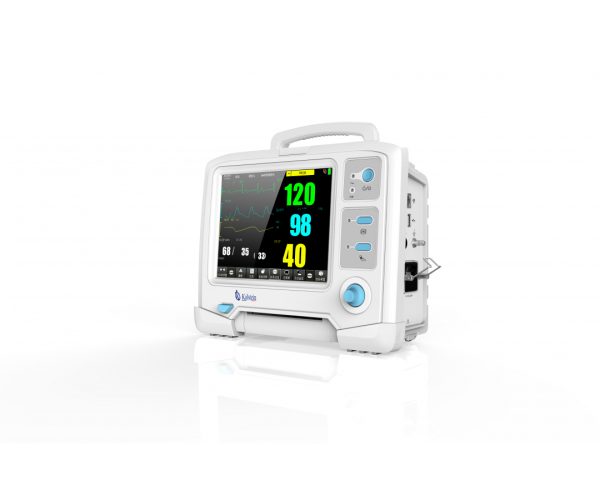

Patient Monitors YR02170 // YR02171 // YR02172
Select options
Bedside Monitor YR02174
Add to cart
Patient Monitor YR02175
Add to cart
Bedside Monitor YR02173
Add to cart
Patient Monitors YR02176
Add to cart
Multi-parameter Patient Monitor YR02177
Add to cart
Doppler Fetal Monitor YR02180
Add to cart
Doppler Ultrasound Fetal Monitor YR02181
Add to cart
KALSTEIN UPDATED
Guidelines for you to become an expert in Patient and Fetal Monitors
The Patient and Fetal Monitors equipment are essential products in the medical sector, we provide you with guidance and recommendations for a better use, so you can work like an expert.
Different types of patient monitors
A patient monitor is a medical device used to continuously detect, process and deploy the…
Patient Monitor: How should it be interpreted?
A patient monitor is a medical device that allows monitoring the vital signs of patients in critical…
How to read a patient monitor in ICU?
A patient monitor is one of the most important medical equipment in a hospital, clinic…
Ways to use a patient monitor
A patient monitor is an electronic device used in hospitals and clinics to monitor vital signs of patients who are in critical condition or who must undergo continuous medical surveillance, in case any alteration in the values of these occurs; among the most common vital signs assessed with this device are: heart rate (ECG), respiratory rate (RESP), non-invasive blood pressure (NIP), pulse (PR), oxygen saturation (SpO2), temperature (TEMP), CO2 and invasive blood pressure (PAI).
Frequently asked questions from our customers about Patient and Fetal Monitors
To know the price of the patient and fetal monitors we invite you to send us an email with your request using the contact form. HERE
The delivery time of your Kalstein product will depend on the following:
- Whether the equipment you are interested in is in stock or if it needs to be manufactured.
- The type of freight you have chosen, which can be either air or sea.
- Equipment in stock:
– Delivery Time (Air): 15-30 days.
– Delivery Time (Sea): 45-60 days.
- Equipment not in stock:
– Delivery Time (Air): 30-60 days.
– Delivery Time (Sea): 60-90 days.
You can make your purchase through:
- By email: [email protected]
- By phone: +33 (0) 1 70 39 26 50
- Online shopping: Through the official Kalstein website in your country.
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damages caused by improper installation or operation by the user, transportation defects, or uses other than those specified by the manufacturer. The warranty excludes electrical parts or consumables. For more information, visit our terms and conditions by clicking HERE.
At Kalstein, we provide our customers with inductions and technical support through new online methods. You can visit our induction videos, technical assistance, and guidance provided by a Kalstein team through our Youtube channel (Kalstein English). HERE
Certainly, you can request a quote for the Kalstein equipment you’re interested in, directly from our official website. Once you have identified the model of your preference, click HERE
Send us a direct message and one of our agents will contact you
