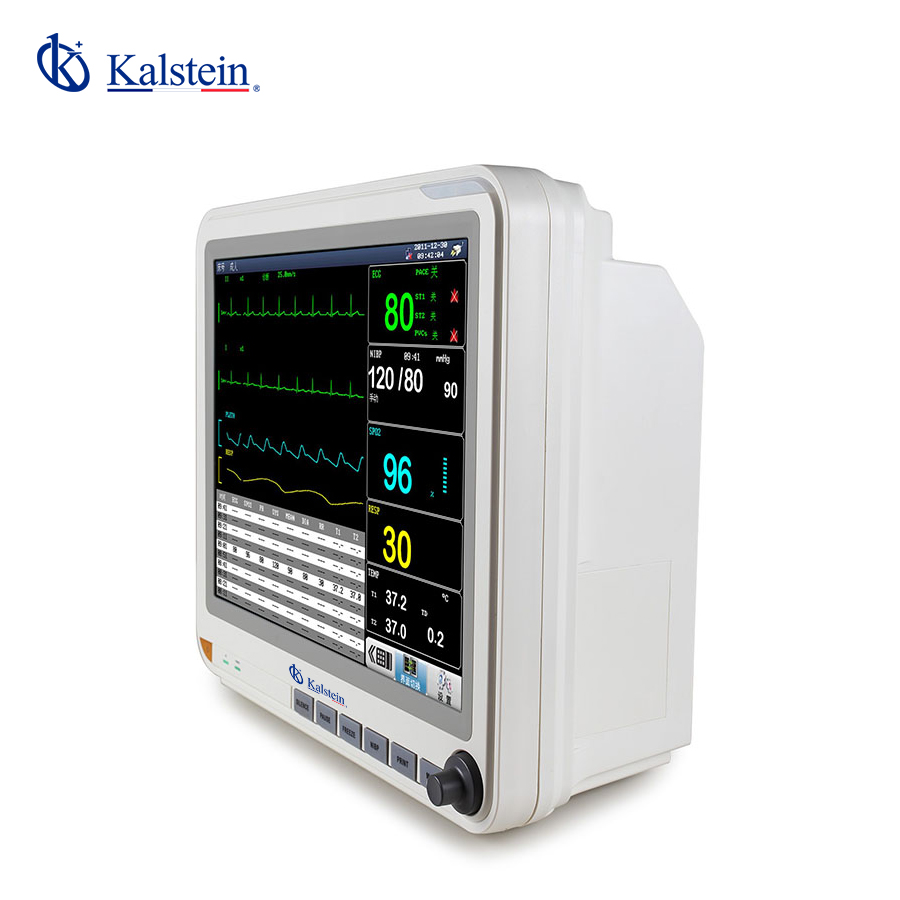

Bedside Monitor YR02174

Manufacturer: Kalstein

Description

The Bedside Monitor YR02174 is an advanced 15-inch multi-parameter patient monitor designed for comprehensive patient monitoring in various clinical settings. It features a standard configuration that includes SpO2, RESP, NIBP, PR/HR, ECG, and dual TEMP measurement capabilities. For adaptability, it offers optional configurations such as a 12-lead ECG, IBP, ETCO2, printer, touch screen, and various mounting solutions like wall mount and trolley. With its user-friendly design, the YR02174 ensures accurate and efficient patient data management, making it an ideal choice for healthcare professionals.

Market Price

The Bedside Monitor YR02174 falls into the mid-range category of patient monitors, with prices typically ranging from $900 to $1,800 USD, depending on the options and configurations selected. This range ensures accessibility for a wide range of healthcare facilities looking to balance budget considerations with high-quality monitoring capabilities.

Frequently Asked Questions

  • What are the main features of the YR02174 model? – The YR02174 includes features like SpO2, RESP, NIBP, PR/HR, ECG, and temperature monitoring, with options for 12-lead ECG and other extensions.
  • Is the YR02174 suitable for both adult and pediatric patients? – Yes, the device supports monitoring for adults, children, and neonates.
  • How is the device powered? – The YR02174 is designed for continuous operation using AC power, with backup battery options available.

Advantages and Disadvantages

Advantages: The YR02174 offers a robust set of features for comprehensive patient monitoring, is customizable with multiple configurations, and includes a large 15-inch display for ease of use. Disadvantages: The need for additional optional modules might increase the initial investment cost, and training may be required for optimal use of its advanced features.

Product Use in the Field

The Bedside Monitor YR02174 is widely used in hospitals, clinics, and emergency care units to monitor vital signs and provide real-time patient data to healthcare professionals. Its versatility allows it to adapt to different patient needs, from routine monitoring to critical care applications.

Recommendations

To maximize the functionality of the Bedside Monitor YR02174, ensure regular maintenance by qualified technicians and take advantage of the optional modules to tailor the monitor’s capabilities to meet specific clinical needs. Users are encouraged to familiarize themselves fully with the monitor’s interface and features to enhance patient care.

Features

  • 15-inch color display
  • Multi-parameter tracking: SpO2, RESP, NIBP, PR/HR, ECG, 2-TEMP
  • Customizable options including 12-lead ECG, IBP, ETCO2, and more
  • Multiple mounting options for flexible usage
  • User-friendly interface with touch screen capability

Technical Specifications

Model YR02174
ECG Lead mode 5 Leads(RA,LA,LL,RL,V)
Connection method I, II, III,AVR,AVL,AVF,V
Lead Mode 3 Leads (RA,LA,LL)
Connection method I, II,III
Waveform 1ch
Gain 1.25, 2.5, 5.0, 10, 20, 40mm/mV, Auto.
HR Range Adult: 15~300bpm
Neo/Ped 15~350bpm
Accuracy ±1% or ±1bpm
Resolution 1bpm
Sensitivity >200(uVp-p)
Differential input impedance ≥5MΩ
ST segment Monitoring Range
Measure Range -2.0~+2.0mV
Measure Accuracy -0.8mV~+0.8mV
Heart Rate Measuring range 20~300bpm
Accuracy ±1bpm
Resolution 1bpm
Sensitivity >200UVp-p
Respiration Method Impedance between R-F(RA-LL)
Differential Input Impedance >2.5MΩ
Measuring Impedance Range 0.3~3.0 MΩ
Base line Impedance Range 200~4000Ω
Bandwidth 0.1~2.5Hz
Resp. Rate Adult: 2~120BrPM
Neo/Ped 0~150BrPM
Resolution 1 BrPM
Accuracy ±2 BrPM
Alarm 10~40S
NIBP Method Oscillometric
Mode Manual/Auto/STAT
Measuring Interval in AUTO Mode 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min)
Measuring Period in STAT Mode 5 Min
Pulse Rate Range 40~240bpm
Alarm Type SYS, DIA, MEAN
Resolution
Pressure 1mmHg
Accuracy Maximum Mean error: 5mmHg
Maximum Standard deviation 8mmHg
SPO2 Display Number of SPO2,waveform of capacity,Pulse
Measuring range 0~100%
Resolution 1%
Accuracy 70~100% (±2%)
Alarm system Audio-video alarm
Pulse rate range 0~300bpm
TEMP Channel 2
Measuring and Alarm Range 0~50ºC
Resolution 0.1ºC
Accuracy 0.1ºC
Actualization interval about 1 Second.
Average Time Constant <10 Second.

Additional information

Weight 6,5 kg
Dimensions 46 × 29,5 × 41 cm
