Description

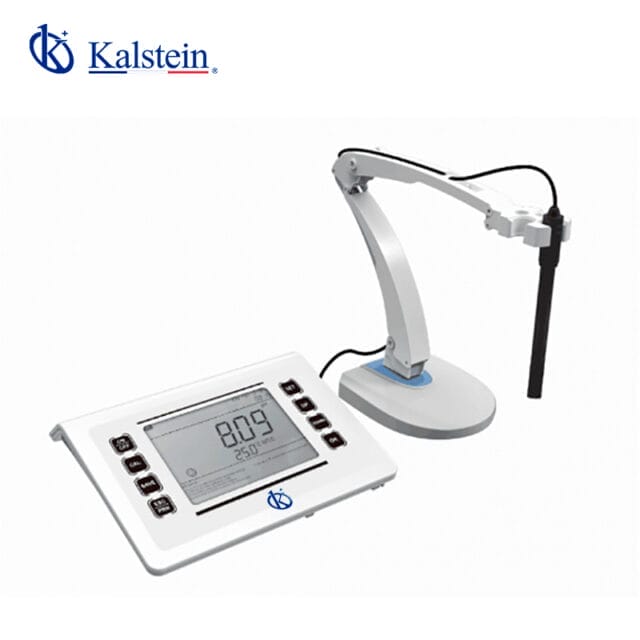

Benchtop Conductivity / TDS / Salinity / Conductivity Ash Meter YR01827 is an advanced laboratory instrument designed to offer precise and reliable measurement capabilities for pH, conductivity, TDS (Total Dissolved Solids), salinity, and resistivity. Equipped with a user-friendly 6.5-inch LED interface, this meter ensures seamless operation and accurate results for various laboratory and field applications. Its intelligent microprocessor chip supports automatic calibration, temperature compensation, data storage, and connectivity options, including wireless Bluetooth printing. The device also boasts a robust electrode status display, ensuring accuracy in diverse conditions.
Market Price
The market price for advanced conductivity meters like the YR01827 typically ranges between $500 and $800. These figures can vary based on features, brand reputation, and purchasing conditions. For precise pricing, especially if you’re considering an investment in a high-precision device like this, it’s recommended to request a personalized quote through the Kalstein Plus platform.
Frequently Asked Questions
What types of calibration buffers does the YR01827 support?
The YR01827 supports automatic recognition of 25 pH buffer options, including Europe & USA, NIST, and China standards.
How does the YR01827 connect to other devices?
Data can be transferred via USB output or optional Bluetooth connectivity for real-time data transfer to mobile devices.
Advantages and Disadvantages
Advantages:
- User-friendly interface with a large LED screen.
- Multiple measurement capabilities (pH, TDS, salinity, resistivity).
- Advanced calibration and settings options.
- Wireless data printing and storage via USB.
Disadvantages:
- Requires regular maintenance and calibration for precision.
- Initial setup might be complex for first-time users.
Product Usage in the Field
In practical applications, the YR01827 is essential for laboratories engaged in water quality testing, pharmaceutical research, and environmental analysis. Its multiple measuring modes offer versatility in various scenarios, ensuring accurate readings across a broad range of conditions.
Recommendations
For optimal use, it is recommended to regularly clean the electrodes and perform periodic calibration checks. Utilizing the wireless printing feature can greatly enhance data management, while storing calibration buffers correctly ensures long-term accuracy.
Features
- 6.5-inch LED screen with user-friendly interface.
- Smart features with a built-in microprocessor chip.
- Automatic calibration and temperature compensation (ATC).
- Data storage and USB and Bluetooth connectivity for easy data transfer.
- Accurate measurement range with advanced technology.
- Durable keys that support prolonged use.
Technical Specifications
Model | YR01827 | |
pH
|
Measuring range | (-2.00 ~ 20.00)pH |
Resolution | 0.1/0.01 pH | |
Accuracy | ±0.02pH | |
Auto calibration | 1, 2, 3 point | |
Buffer | Europe & USA, NIST, China standards | |
Input current | ≤2×10 -12A | |
Input impedance | ≥1×10 12Ω | |
Stability | ±0.01 pH/3h | |
Temp. compensation | (0 ~ 100)°C, auto or manual | |
mV ORP
|
Measuring range | -1999.9mV ~ 0 ~ 1999.9mV |
Resolution | 1 mV | |
Accuracy | ±0.1% FS | |
Cond.
|
Measuring range
|
Conductivity: |
(0.00~20.00)μS/cm, (20.0~200.0)μS/cm | ||
(200~2000)μS/cm, (2.00~20.00)mS/cm | ||
(20.0~200.0)mS/cm | ||
(200~2000)mS/cm (K=10) | ||
TDS: (0 ~ 100)g/L | ||
Salinity: (0 ~ 100)ppt | ||
Resistivity: (0 ~ 100)MΩ·cm | ||
Resolution | 0.01/0.1/1μS/cm, 0.01/0.1/1mS/cm | |
Accuracy Electrode: | ±0.5% FS, Meter: ±0.80% FS | |
Temp. compensation | (0 ~ 100)°C, auto Electrode constant 0.1/1/10 cm -1 | |
Reference Temp. | 25°C, 20°C, 18°C | |
Temp.
|
Measuring range | (0 ~ 100)°C |
Resolution | 0.1°C | |
Accuracy | 5 ~ 60°C: ±0.4°C Others: ±0.8°C | |
Other
|
Display | 6.5-inch LCD screen Data storage 1000 sets Power DC 12V/1A |
Output | USB | |
Ambient Temp. | 5 ~ 40 °C | |
Ambient Humidity | ≤85% | |
IP grade | IP54 | |
Dimensions/N.W. | 215×170×37mm/600g | |
Shipping Size/G.W. | 470x430x72mm/3kg |
