Description

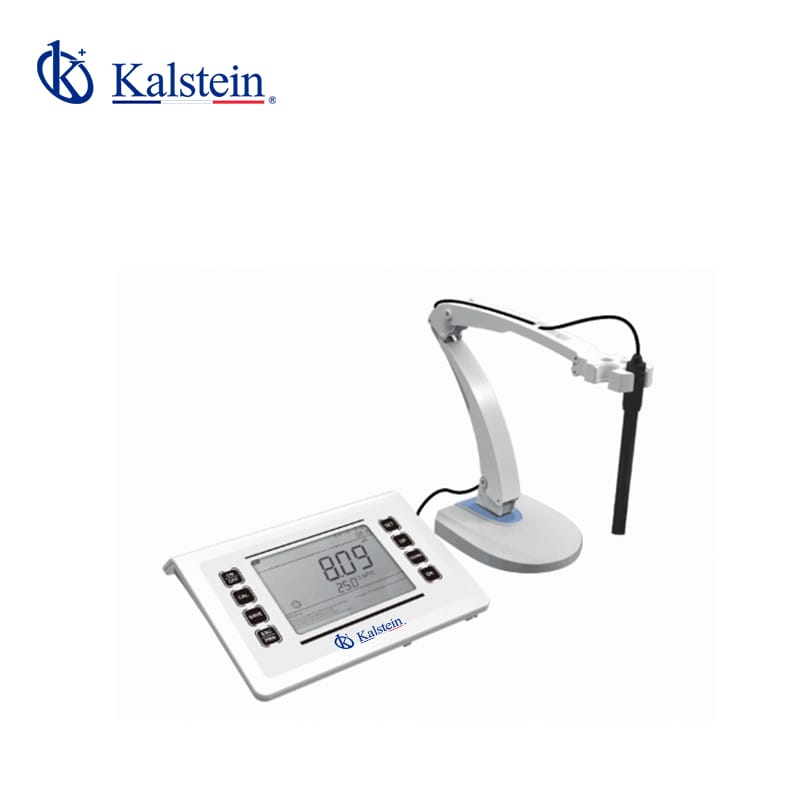

The YR01828 Benchtop Conductivity / TDS / Salinity / Resistivity Meter is designed with precision and accuracy in mind, featuring a 7-inch colored capacitive touch screen that offers high resolution and sensitivity for user convenience. Equipped with an intelligent microprocessor chip, this meter delivers automatic calibration, automatic temperature compensation (ATC), data storage, clock display, USB output, and more advanced features, making it a versatile tool for a variety of applications. With the ability to connect via USB, RS232, and Bluetooth, real-time data transfer to mobile devices becomes seamless, enhancing user productivity. The device supports up to 1000 data sets, easily transferable to a USB for advanced data management in Excel.
Market Price
The YR01828 Benchtop Conductivity / TDS / Salinity / Resistivity Meter is competitively priced within the market, offering a range from $500 to $800, providing excellent value for its advanced features. When browsing for conductivity meters, it’s crucial to compare features and ensure you are getting the best functionality for your investment.
Frequently Asked Questions
Q: Can this meter be used with different electrode types?
A: Yes, the meter is compatible with varied electrode constants ranging from 0.1 to 100 cm-1.
Q: Is the screen hard to read in bright light?
A: The high-resolution, 7-inch capacitive touch screen is designed to be easy to read in various lighting conditions.
Q: How does the data storage work?
A: You can store up to 1000 data sets, which can be quickly transferred to a USB memory stick for further analysis.
Advantages and Disadvantages
Advantages of the YR01828 include its high-precision measurement capabilities and intuitive interface, which make it suitable for both laboratory and field work. The multiple connectivity options provide flexibility in data management. However, its advanced features might take some initial time to master for new users unfamiliar with such sophisticated equipment.
Product Use in the Field
This benchtop meter excels in real-world applications requiring precise measurements of conductivity, TDS, salinity, and resistivity. It’s ideal for water quality testing in environmental monitoring, research laboratories, or any industry requiring accurate fluid analysis. The wireless connectivity further enhances its utility in field work, allowing instant data reporting and reducing the need for manual entry errors.
Recommendations
For optimal performance, regular calibration and proper maintenance of electrodes are recommended. When not in use, ensure the device is stored in a dry environment to maintain its longevity. Consider leveraging the Bluetooth feature for easier data management, especially in environments where direct connections are inconvenient.
Features
- 7-inch colored capacitive touch screen with high resolution and sensitivity.
- Intelligent functions including automatic calibration and temperature compensation.
- USB, RS232, and Bluetooth connectivity for flexible data transfer and management.
- Stores up to 1000 data sets for thorough analysis capabilities.
- Compatible with a variety of electrode constants for diverse application needs.
Technical Specifications
Model | YR01828 | |
Cond.
|
Measuring range
|
Conductivity: |
(0.00~20.00)μS/cm, (20.0~200.0)μS/cm | ||
(200~2000)μS/cm, (2.00~20.00)mS/cm | ||
(20.0~200.0)mS/cm, | ||
(200~2000)mS/cm (K=10) | ||
TDS:(0 ~ 100)g/L | ||
Salinity:(0 ~ 100)ppt | ||
Resistivity:(0 ~ 100)MΩ·cm | ||
Resolution | 0.01/0.1/1μS/cm; 0.01/0.1mS/cm | |
Accuracy | Electrode: ±0.5% FS, Meter: ±0.8% FS | |
Temp. compensation range | (0 ~ 50)ºC, auto | |
Electrode constant | 0.1/0.5/1/5/10/50/100 cm-1 | |
Reference Temp. | 25ºC,20ºC,18ºC | |
Temp.
|
Range | (-10 ~ 110)ºC |
Resolution | 0.1ºC | |
Accuracy | 5 ~ 60ºC:±0.4ºC Others: ±0.8ºC | |
Other
|
Display | 7-inch colored capacitive touch screen |
Data storage | 1000 sets | |
Power | 12V/1A | |
Output | USB, RS232, Bluetooth | |
Ambient Temp. | 15 ~ 30 ºC | |
Ambient Humidity | ≤85% | |
IP grade | IP54 | |
Dimensions/N.W. | 240×170×70mm/600g | |
Shipping Size/G.W. | 470x430x85mm/2.6kg |
