Description

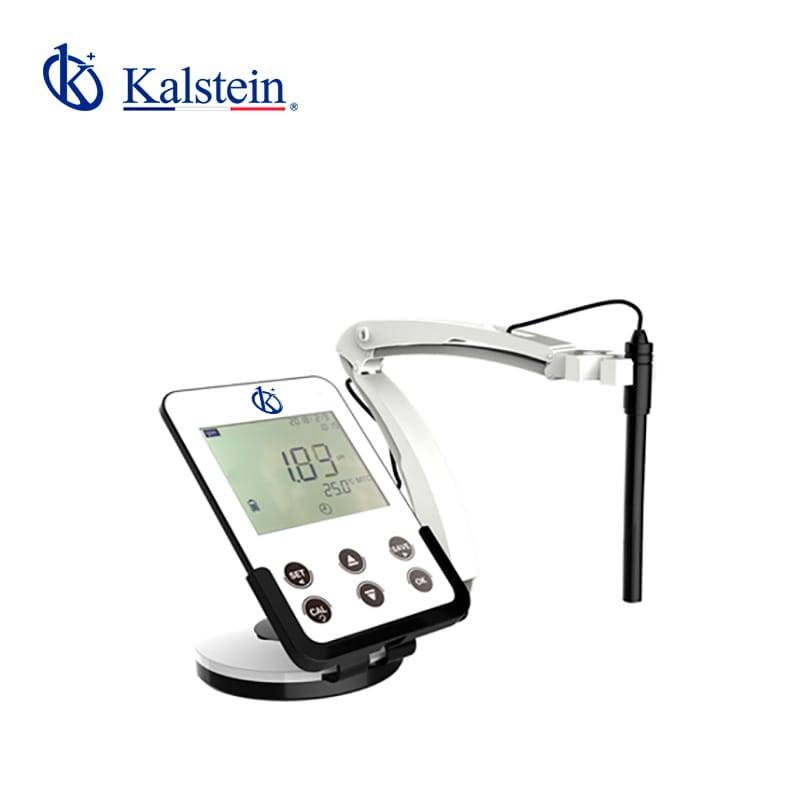

The Benchtop pH / Ion Meter YR01826 is a state-of-the-art measurement tool designed for precision and ease of use. Featuring a 5-inch LCD screen with a broad 150° viewing angle, this device ensures clear readings from up to 5 meters away. The integrated microprocessor chip offers smart functionalities like automatic calibration and temperature compensation, clock display, USB output, extensive data storage for up to 200 sets, and more. Notably, its rechargeable battery allows for up to 30 hours of usage, complemented by an automatic power-off feature to conserve energy.
Market Price
The market price for the Benchtop pH / Ion Meter YR01826 can vary depending on the supplier and region, generally ranging from $250 to $500. This price reflects its advanced capabilities and robust design, offering excellent value for laboratories and professionals requiring reliable pH and ion measurements.
Frequently Asked Questions
Q: What types of electrodes are compatible with this meter?
A: The device automatically recognizes different electrodes and those with built-in chips can store and retrieve calibration data upon connection.
Q: Can this meter be connected to a PC?
A: Yes, it comes with two USB interfaces that support PC connections, data transfer, and battery charging.
Advantages and Disadvantages
One of the major advantages of the YR01826 model is its ability to automatically calibrate and compensate for temperature changes, ensuring accurate results in varied conditions. Its data storage capacity and USB compatibility greatly enhance usability. However, a potential disadvantage is its reliance on battery power for portability, meaning users must ensure it is charged before extensive remote use.
Field Use
The Benchtop pH / Ion Meter YR01826 is ideal for laboratory environments requiring accurate and repeatable measurements of pH and ion concentrations. Its wide measurement range and high resolution make it suitable for a variety of applications, including pharmaceuticals, environmental monitoring, and educational demonstrations.
Recommendations
To maximize the performance of your YR01826 meter, regularly calibrate the device using the recommended buffer solutions and ensure electrodes are clean and well-maintained. For optimal results, always store the device in a dry, controlled environment. Request a quote or generate a quote automatically by visiting Kalstein Plus today.
Features
- 5-inch LCD display with 150° viewing angle
- Automatic calibration & temperature compensation
- Data storage capacity for up to 200 sets
- USB interface for PC connection and data transfer
- Rechargeable battery with up to 30 hours of use
Technical Specifications
| Model | YR01826 | |
|
ph
|
Measuring range | (-2~19.999)pH |
| Resolution | 0.1/0.01pH | |
| Accuracy | ±0.02 pH | |
| Input current | ≤2×10^-12 A | |
| Input impendance | 21×10^-12 Ω | |
| Stability | ±0.002 pH/3h | |
| Temp. compensation range |
(0~100) °C, auto/manual
|
|
|
mV
|
Measuring range |
-1999.9mV~0~1999.9mV
|
| Resolution | 0.1mV | |
| Accuracy | ±0.03% FS | |
|
Temperature
|
Measuring range | (-10~110) C |
| Resolution | 0.1°C | |
| Accuracy |
5~ 60°C: range: ±0.4°C; other range: ±0.8℃
|
|
| Calibration | 1, 2, 3 point | |
|
Other Technical Parameters
|
Display |
5-Inch white backlit LCD screen
|
| Data storage | 200 sets | |
| Power | DC 5V/1A | |
| Communication connector |
Micro USB & Standard USB
|
|
| Dimension/N.W. |
180 x 130 x 14mm/280g
|
|
|
Working Condition
|
Environment Temp. | 535 °C |
| Environmental | ≤85% | |
| IP Grade | IP54 | |
|
Meter Kits
|
1) pH meter | |
| 2) Electrode holder | ||
| 3) Two-in-one electrode that consists of pH combination electrode and temperature probe. | ||
| 4) pH buffer solution | ||
| 5) Power adapter | ||
