Description

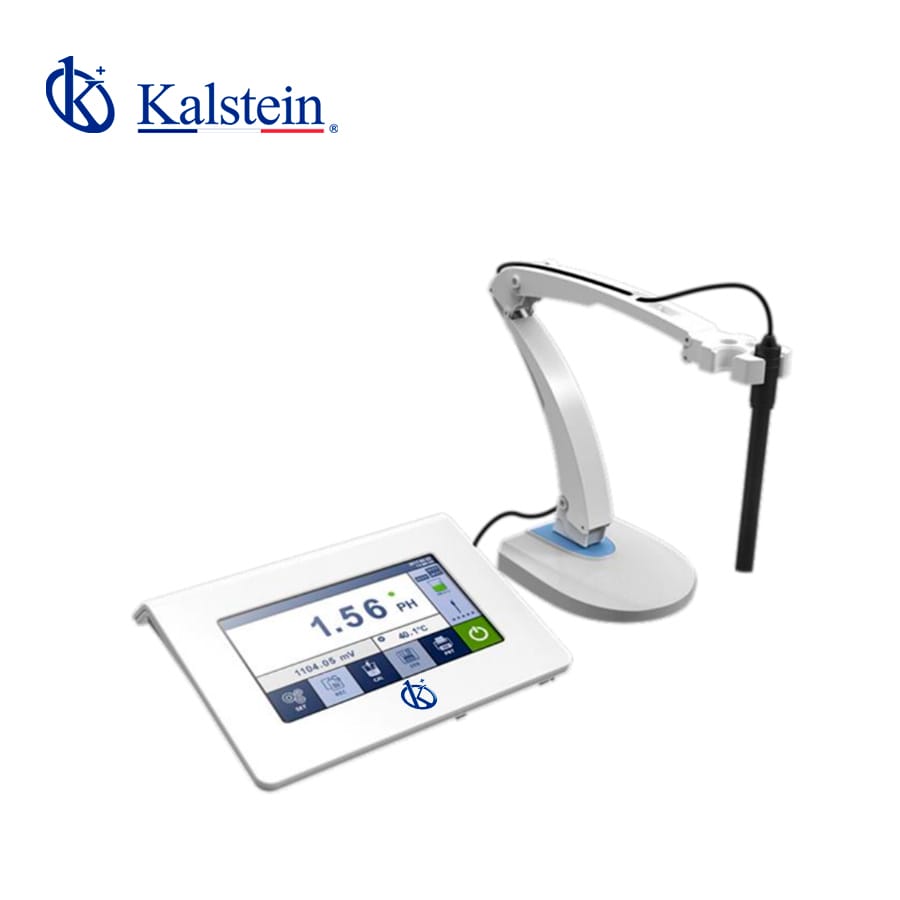

YR01825 Benchtop pH / Ion Meter is a state-of-the-art measurement device designed to deliver accurate and reliable readings. Featuring a 7-inch colored capacitive touch screen with a high resolution of 1024×600, it ensures an excellent user experience. This device is equipped with a built-in microprocessor chip offering intelligent functions such as automatic calibration, Automatic Temperature Compensation (ATC), data storage, clock display, USB output, function settings, wireless printing, and self-diagnosis. It can recognize 25 different buffers and supports both PC connection and optional wireless Bluetooth printing. With its smart electrode status display, storing capability of up to 1,000 sets of test data directly to a USB, and data access via Excel, productivity is optimized for demanding laboratory environments.
Price in the Market
The YR01825 Benchtop pH / Ion Meter typically falls within the price range of $700 to $1,300, depending on the supplier and additional services offered. This price range reflects its advanced capabilities and high functionality. If you wish to learn more about detailed pricing or discounts, we recommend generating a quote through our Kalstein Plus platform.
Frequently Asked Questions
Can the YR01825 connect to a computer? Yes, it supports PC connection via USB and offers optional wireless Bluetooth printing.
What is the data storage capacity of the device? The device can store up to 1,000 sets of test data.
Is it suitable for different global standards? Absolutely. It recognizes 25 different buffer solutions, including Europe & USA, NIST, and China standards.
Advantages and Disadvantages
Advantages: The YR01825 offers high precision (±0.002pH accuracy), a large touch screen for better control, and versatile connectivity options. It also includes automatic calibration and temperature compensation for enhanced accuracy.
Disadvantages: Its advanced features and specifications might result in a steeper learning curve for new users who are not familiar with laboratory equipment.
Use of the Product in the Field
The YR01825 is ideal for laboratory environments where accurate pH and ion measurements are critical. It is often used in research laboratories, pharmaceutical testing, and quality control departments. Real-time data transfer and wireless printing make it highly efficient in bustling lab settings.
Recommendations
To maximize the life and accuracy of your YR01825, regular calibration using the recognized buffers is recommended. Ensure the device is stored under the optimal ambient conditions: a temperature range of 15~30°C and <85% relative humidity.
Features
- 7-inch colored capacitive touch screen.
- Automatic calibration with 1, 2, 3 point options.
- Automatic Temperature Compensation (ATC).
- USB output and wireless printing options.
- Data storage for 1,000 sets with Excel compatibility.
Technical Specifications
Model | YR01825 |
Measuring range | (-2.00~20.00)pH |
Resolution | 0.01/0.001 pH |
Accuracy | ±0.002pH |
Auto calibration | 1, 2, 3 point |
Buffer | Europe & USA, NIST, China standards |
Input current | 22 ≤1×10 A |
Input impedance | 23×10 Ω |
Stability | ±0.01 pH/3h |
Temp. compensation | (0~100) °C, auto or manual |
Measuring range | -1999.9mV~0~1999.9mV |
Resolution | 0.1 mV |
Accuracy | ±0.03% FS |
Measuring range | (-10~110) °C |
Resolution | 0.1 °C |
Accuracy | ±0.5°C |
Display | 7-inch colored capacitive touch screen |
Data storage | 1000 sets |
Power | 12V/1A |
Output | USB |
Ambient Temp. | 15~30 °C |
Ambient Humidity | <85% |
IP grade | IP54 |
