Laboratory Biological Microscope, Trinocular, Achromatic YR05788-AT

ManufacturerKalstein

Description

The Laboratory Biological Microscope, Trinocular, Achromatic YR05788-AT is an entry-level laboratory tool designed for precision and ease of use. With its robust Seidentopf head offering a 360° rotation and adjustable interpupillary distance, this microscope is tailored to provide a comfortable viewing experience for users of varying heights. The optical system features an achromatic design capable of magnifications ranging from 40x to 1000x, ensuring detailed and clear imaging. Its high rigidity body structure promises stability during usage, and the inclusion of a coaxial coarse and fine focusing knob allows for minute adjustments with a focusing scale of 0.002mm.

Market Price

In the market, biological microscopes with similar specifications generally range between $500 to $800. This price range reflects the advanced features and build quality found in devices like the YR05788-AT, making it an attractive option for both amateur and professional laboratory environments. To get an accurate quote personalized to your needs, consider generating a quote through the Kalstein Plus platform.

Frequently Asked Questions

Q: What does the trinocular feature mean?

A: The trinocular design allows users to attach a camera or other imaging devices to capture high-quality images while simultaneously using the eyepieces.

Q: Is this microscope suitable for educational purposes?

A: Yes, its user-friendly design and adjustable features make it perfect for educational settings where students can learn and interact with professional-grade equipment.

Advantages and Disadvantages

One key advantage of the YR05788-AT microscope is its flexibility in objective options, including the 100x water objective, which eliminates the need for cedar oil and simplifies cleaning. The customizable colors also allow for a personalized touch. However, one possible drawback is the reliance on an external DC USB adapter for power, which might limit placement without access to power outlets.

Product Usage in the Field

In practical scenarios, this microscope is ideal for biology laboratories, enabling detailed observation of biological samples. The mechanical double-layer stage ensures that glass slides can be easily maneuvered, allowing for accurate viewing and image capture. Researchers can benefit from its precision in diagnostics and experimental observations.

Recommendations

Regular maintenance is recommended to ensure longevity. Clean the lenses with a soft, lint-free cloth after each use and store the microscope in a dust-free environment. Users should also consider adjusting the tension and utilizing the safety stop screw for enhanced operation.

Features

  • Trinocular Seidentopf head with 360° rotation
  • Achromatic optical system for magnifications of 40x-1000x
  • Durable body structure for high stability
  • Adjustable interpupillary distance and high eyepoint eyepiece
  • Double-layer mechanical stage with a precision scale of 0.1mm
  • LED lighting with Abbe condenser and iris diaphragm

Technical Specifications

Model YR05788-AT
Power Supply Type DC USB Adapter
Transmit Light 3W LED
Light Source Type LED
Condenser N.A. 1.25
Condenser Type Abbe
Condenser Features Rack & Pinionↆ↑, Filter Holder, Iris Diaphragm
Focusing Knob Low Position Focusing Knob For Easy Operation
Focusing Scale 0.002mm
Focusing Range 26mm
Focusing Type Coaxial Coarse & Fine
Focusing Features Safety Stop Screw, Tension Adjustable
Working Stage Moving 76x52mm
Working Stage Size 145x140mm
Working Stage Type 2 Layers Mechanical
Working Stage Features Double Slide Holder, Size ≥140x140mm
Objective Achromatic Objective 4x,10x,40x,100x
Objective Type Achromatic
Nosepiece Holes 4 Holes
Nosepiece Features Inward
Eyepiece WF10x/18mm, 2 pcs
Eyepiece Diameter 23.2mm
Eyepiece Features Diopter Adjustable
Head Light Path E80:P20
Head Diopter Left Adjustable
Head Interpupillary 48~75mm
Head Rotation Head Rotate 360°
Head Inclination 30°
Head Type Seidentopf Trinocular
Standard Magnification 40x-1000x
Optical System Achromatic
Upgrade Function BF+PH+DF+PL+FL
Standard Function BF

Additional information

Weight 8,5 kg
Dimensions 39 × 28 × 45 cm
Model

YR05788-AT

Characteristic Feature

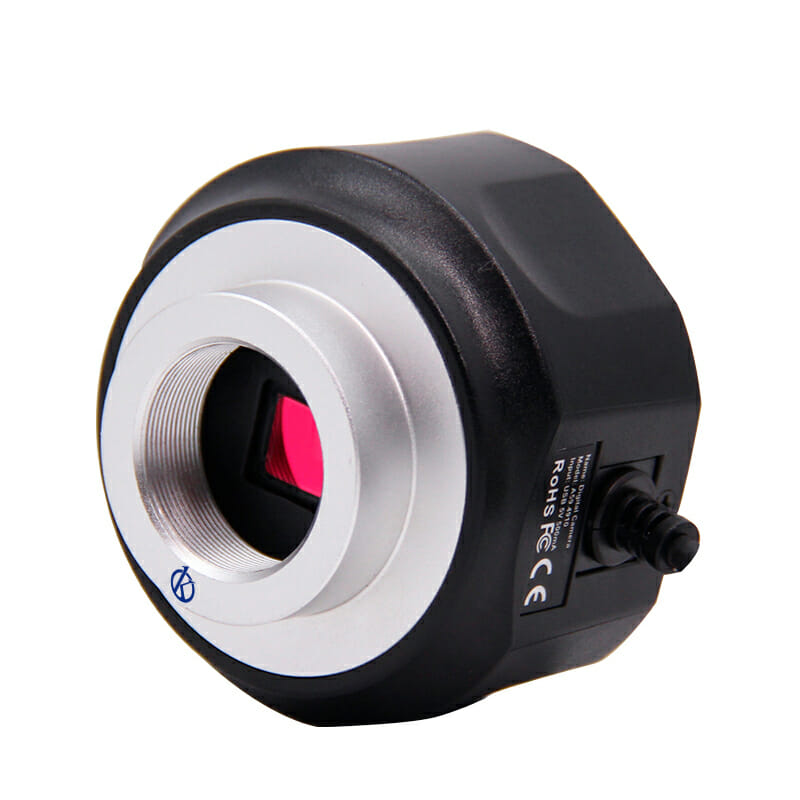

No Features, YR05788AT-op1 USB2.0 CMOS Digital Camera, 5.0M, Fix USB Cable
