Description

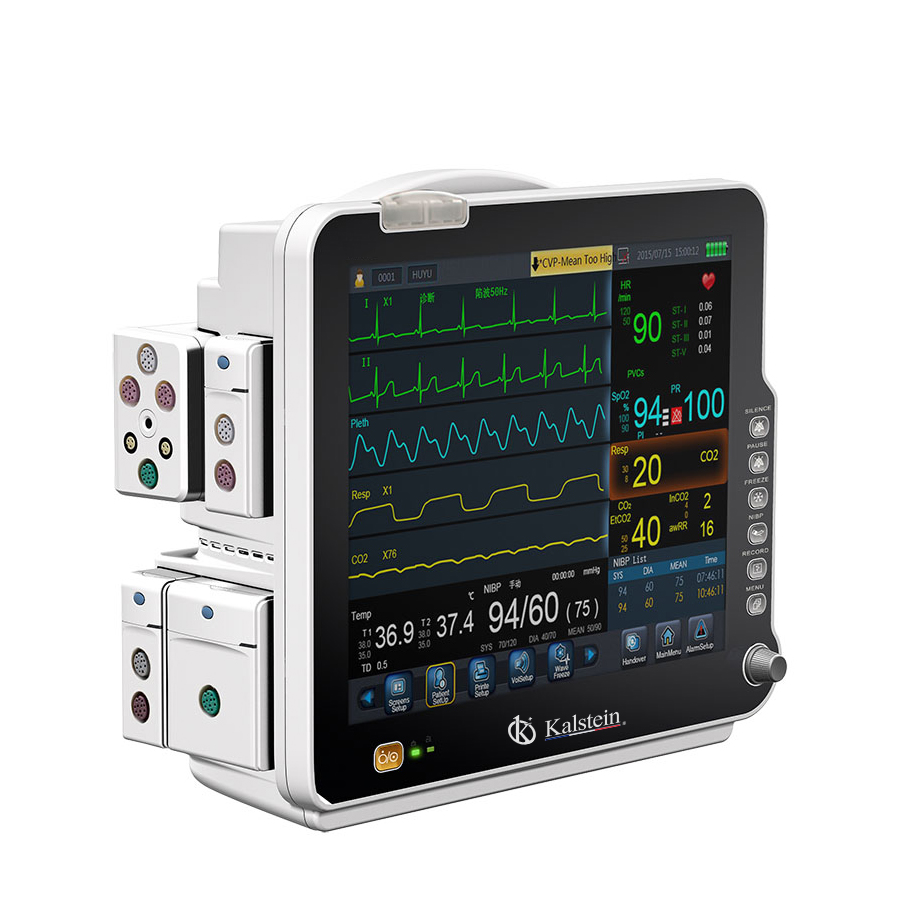

The Multi-parameter Patient Monitor YR02177 is a comprehensive, full modular parameter monitor designed for critical environments such as operating theaters (OT) and intensive care units (ICU). Featuring a state-of-the-art 17-inch LCD screen, this device ensures precise and efficient monitoring with standard parameters including ECG, SPO2, TEMP, NIBP, RESP, and PR/HR. With optional configurations like Masimo/Nellcor SpO2, Dual-IBP, and advanced capabilities such as AG and BIS, it offers unmatched versatility for medical professionals. Discover how this monitor can enhance patient care by requesting a quote or generating one automatically through our Kalstein Plus platform today.
Market Price
The Multi-parameter Patient Monitor YR02177 falls into the premium segment of the market due to its advanced features and high-quality design. Typically, similar monitors range in price from approximately $4600 to $5400 USD, reflecting the superior technology and reliability it offers. Investing in such a robust system aligns with ensuring top-tier patient care in critical medical environments.
Frequently Asked Questions
Can this monitor be used for pediatric patients?
Yes, the YR02177 is equipped to handle both pediatric and neonatal patients, with specific settings catering to their unique physiological ranges.
Does it come with a warranty?
Yes, the monitor includes a standard warranty period to cover any manufacturing defects or technical issues that may arise.
Advantages and Disadvantages
Advantages:
The YR02177 offers a high-resolution display, accurate multi-parameter monitoring, and extensive optional features, making it a versatile tool in medical care. Its modular design allows for easy upgrades.
Disadvantages:
The initial investment cost might be higher compared to basic models, but it is offset by its extensive features and long-term benefits.
Product Use in the Field
Widely used in ICUs and OTs, the YR02177 allows healthcare practitioners to closely monitor vital signs, ensuring immediate responses to changes in a patient’s condition. Its modular configuration supports a broad range of medical scenarios.
Recommendations
To maximize the potential of the YR02177, ensure regular calibration and maintenance checks. Consider pairing it with additional accessories like the trolley or wall mount for enhanced mobility and convenience within the clinical setting.
Features
- 17-inch high-resolution LCD screen
- Standard monitoring parameters: ECG, SPO2, TEMP, NIBP, RESP, PR/HR
- Versatile optional configurations including advanced monitoring options
- Suitable for pediatric and adult patients
- Optional accessories for increased functionality
Technical Specifications
| Model | YR02177 | |
|
ECG
|
Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | x250, x500, x1000, x2000 | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
|
Heart Rate
|
Measuring range | 10~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
|
Respiration
|
Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.0MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Respiration Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
|
NIBP
|
Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
|
SPO2
|
Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
|
TEMP
|
Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
