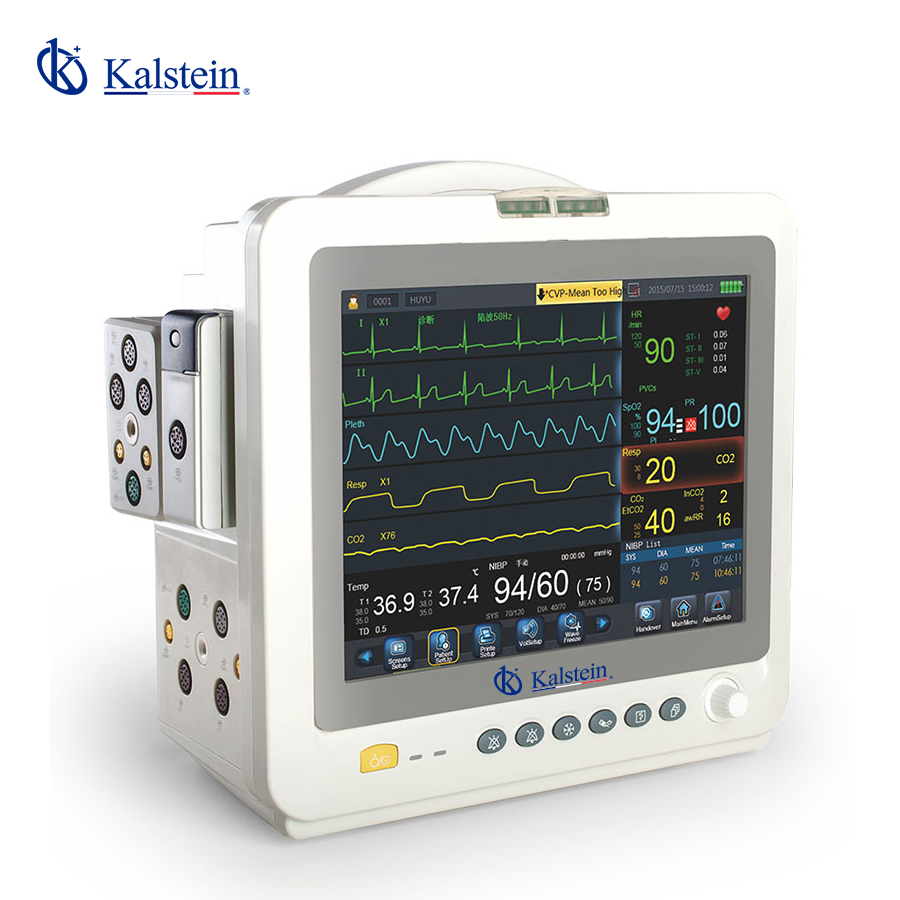

Multi-parameter patient monitor YR02178 // YR02179

Manufacturer: Kalstein

Description

The Multi-parameter Patient Monitor YR02178 // YR02179 is a cutting-edge medical device designed to enhance patient care in critical environments like operating theatres (OT) and Intensive Care Units (ICU). Equipped with an LCD screen and semi-modular parameters, this monitor offers robust functionalities to assess ECG, SpO2, TEMP, NIBP, RESP, and PR/HR. With a standard configuration that includes a 5-lead ECG and dual temperature monitors, this patient monitor is adaptable and reliable, ensuring precision in monitoring vital signs. Optional features such as a touch screen, Masimo/Nellcor SpO2, and dual-IBP expand its capabilities, catering to diverse clinical needs. Request a quote now through our Kalstein Plus platform to enhance your medical facility with this essential piece of equipment.

Market Price

The market for multi-parameter patient monitors varies widely due to differences in features and specifications. On average, these devices are priced between $3100 and $3900 USD, which makes them a solid investment for healthcare facilities looking to provide state-of-the-art patient care.

Frequently Asked Questions

Customers often inquire whether the YR02178 // YR02179 models are compatible with existing hospital systems, and the answer is yes—they are designed with versatility in mind. Another common question concerns the accuracy and reliability, which these models consistently deliver through advanced algorithmic support.

Advantages and Disadvantages

Advantages of the YR02178 // YR02179 include their semi-modular design, which allows for configuration flexibility, and detailed monitoring that covers a wide range of parameters. A potential disadvantage could be the learning curve associated with its advanced features for new users.

Product Use in the Field

In practice, the YR02178 // YR02179 monitors provide real-time data essential for the swift intervention in patient care, making them invaluable tools in ICUs and OTs where immediate response is crucial.

Recommendations

To maximize the use and prolong the lifespan of your monitor, regular calibration and software updates are recommended. Additionally, consider investing in optional features depending on your clinical requirements for enhanced functionality.

Features

  • LCD screen with optional touch functionality
  • Semi-modular with a broad range of standard and optional parameters
  • Robust configuration offering ECG, NIBP, SpO2, TEMP, and more
  • Customizable to meet specific patient monitoring needs

Technical Specifications

Model YR02178 YR02179
ECG Lead mode 5 Leads(RA,LA,LL,RL,V)
Connection method I, II, III,AVR,AVL,AVF,V
Lead Mode 3 Leads (RA,LA,LL)
Connection method I, II,III
Waveform 1ch
Gain x250, x500, x1000, x2000
HR Range Adult: 15~300bpm
Neo/Ped 15~350bpm
Accuracy ±1% or ±1bpm
Resolution 1bpm
Sensitivity >200(uVp-p)
Differential input impedance ≥5MΩ
ST segment Monitoring Range
Measure Range -2.0~+2.0mV
Measure Accuracy -0.8mV~+0.8mV
Heart Rate Measuring range 40~240bpm
Accuracy ±3bpm
Resolution 1bpm
Sensitivity >200UVp-p
Respiration Method Impedance between R-F(RA-LL)
Differential Input Impedance >2.5MΩ
Measuring Impedance Range 0.3~3.0 MΩ
Base line Impedance Range 200~4000Ω
Bandwidth 0.1~2.5Hz
Respiration Rate Adult: 7~120BrPM
Neo/Ped 7~150BrPM
Resolution 1 BrPM
Accuracy ±2 BrPM
Alarm 10~40S
NIBP Method Oscillometric
Mode Manual/Auto/STAT
Measuring Interval in AUTO Mode 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min)
Measuring Period in STAT Mode 5 Min
Pulse Rate Range 40~240bpm
Alarm Type SYS, DIA, MEAN
Resolution
Pressure 1mmHg
Accuracy Maximum Mean error: 5mmHg
Maximum Standard deviation 8mmHg
SPO2 Display Number of SPO2,waveform of capacity,Pulse
Measuring range 0~100%
Resolution 1%
Accuracy 70~99% (±2%)
Alarm system Audio-video alarm
Pulse rate range 0~300bpm
TEMP Channel 2
Measuring and Alarm Range 0~50ºC
Resolution 0.1ºC
Accuracy 0.1ºC
Actualization interval about 1 Second.
Average Time Constant <10 Second.

Additional information

Weight N/A
Dimensions N/A
Model

yr02178, yr02179
