Description

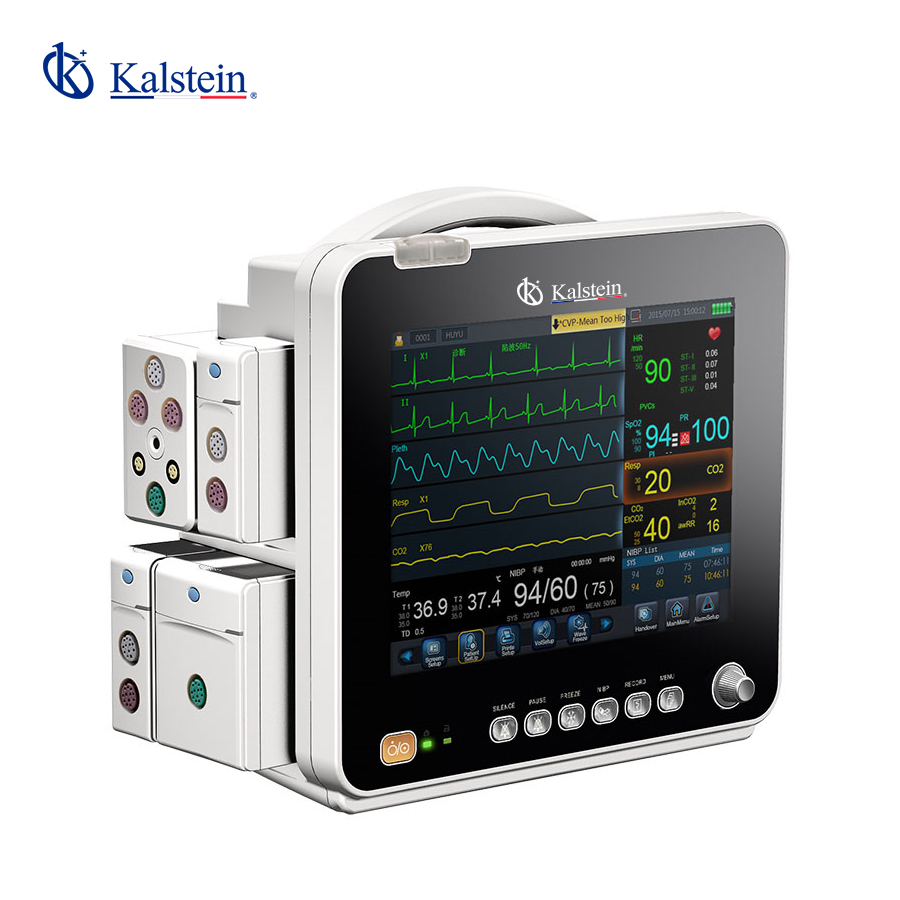

The Patient Monitor YR02175 stands out with its 12.1-inch LCD screen and modular design, making it a vital tool for comprehensive monitoring in the Operating Room (OT) and Intensive Care Unit (ICU). With standard parameters such as ECG, SPO2, TEMP, NIBP, RESP, and PR/HR, it ensures that healthcare professionals can track critical patient data accurately and effectively. This advanced monitor supports both 3-lead and 5-lead ECG configurations, providing flexibility and precision in patient care. Its robust design and sophisticated alarm system emphasize its reliability in the most demanding medical environments.
Market Price Overview
When considering a patient monitor of this caliber, the market price typically ranges between $3900 and $4700 USD. This price range ensures a balance between advanced functionality and value, offering healthcare facilities a worthy investment in patient monitoring technology. By opting for the Patient Monitor YR02175, healthcare providers receive top-tier features often found in more expensive models.
Frequently Asked Questions
What makes the Patient Monitor YR02175 suitable for ICU settings? The monitor’s capability to integrate standard configurations and parameters such as ECG, SPO2, and NIBP is specifically designed to support critical patients.
Is the display visible in various lighting conditions? Yes, the 12.1-inch LCD screen is optimized for clarity under different lighting environments, ensuring vital information is easily readable.
Advantages and Disadvantages
The Patient Monitor YR02175 offers advantages like high accuracy in measurements, modular versatility for different medical needs, and a comprehensive alarm system. However, its advanced features might require initial training for staff unfamiliar with high-tech monitoring equipment.
Product Usage in the Field
In real-world scenarios, the YR02175 is deployed to monitor patients’ vital signs continuously, alerting medical staff in case of irregularities. It helps healthcare teams to make informed decisions swiftly, improving patient outcomes significantly.
Recommendations
To maximize the performance of the Patient Monitor YR02175, it is recommended to ensure regular calibration and maintenance. Staff training on its features will also enhance its utility and effectiveness in patient care.
Features
– 12.1 inch LCD screen
– Modular parameter configuration
– Standard parameters include ECG, SPO2, TEMP, NIBP, RESP, and PR/HR
– Compatible with 3-lead and 5-lead ECG
– High precision in varied medical settings
Technical Specifications
| Model | YR02175 | |
| ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | x250, x500, x1000, x2000 | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
| Heart Rate | Measuring range | 20~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
| Respiration | Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.0MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Resp. Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
| NIBP | Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
| SPO2 | Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 60~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
| TEMP | Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second | |
| Average Time Constant | <10 Second | |
