Description

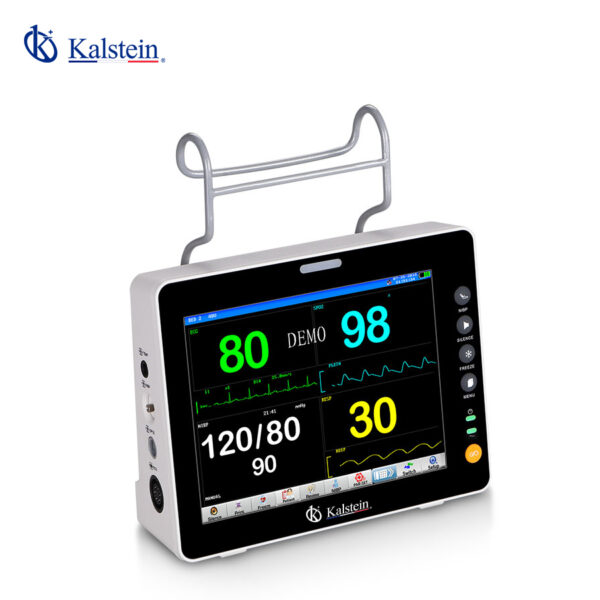

Patient Monitors YR02170 // YR02171 // YR02172 provide comprehensive monitoring solutions with features such as multi-channel display, big font interface, and ST and arrhythmia analysis. These monitors offer advanced functionalities including drug dose calculation, an OxyCRG dynamic view display, and reliable respiration monitoring with apnea alarms. With options for both wire and wireless network connectivity, and a rechargeable battery that supports AC/DC use, these models ensure versatility and dependability in various medical settings.
Price in the Market
The range for these patient monitors typically falls between $900 and $1,700, depending on the retailer and the included accessories. This makes the YR02170 // YR02171 // YR02172 a competitive choice for healthcare providers seeking cost-effective monitoring solutions without compromising on essential features.
Frequently Asked Questions
Can these monitors connect to both wired and wireless networks? Yes, the YR02170 // YR02171 // YR02172 models support both wired and wireless network connections, offering flexibility for different healthcare environments.
What kind of battery do these monitors use? They come with a plug-in rechargeable battery, ensuring continuous operation both on AC and DC power.
Advantages and Disadvantages
One of the main advantages of the YR02170 // YR02171 // YR02172 monitors is their customizable alarm settings and the capability to review alarms and arrhythmias. The big font interface enhances readability, a crucial feature for time-critical monitoring. However, some users may find the initial setup complex due to its extensive options and features.
Product Use in the Field
The monitors are extensively used in hospitals and clinics for continuous monitoring of vital signs such as ECG, respiration, and blood pressure. Their versatility makes them suitable for various departments, including ICU, emergency, and surgical settings.
Recommendations
It is advisable to routinely calibrate the monitors and update the software to maintain accuracy and integrity. Training staff on the advanced functionalities of the YR02170 // YR02171 // YR02172 can also enhance efficiency and patient care quality. For further savings, consider purchasing through Kalstein Plus, where you can easily request a quote or generate one automatically.
Features
- Multi-channel display
- Big font interface
- ST and arrhythmia analysis
- Drug dose calculation and titration table
- OxyCRG dynamic view display
- Respiration monitoring with apnea alarms
- Alarm review, arrhythmia review
- NIBP over pressure protection
- Plug-in rechargeable battery, AC/DC available
- Support for wired or wireless network
Technical Specifications
| Model | YR02170 | YR02171 | YR02172 | |
| ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) | ||
| Connection method | I, II, III,AVR,AVL,AVF,V | |||
| Lead Mode | 3 Leads (RA,LA,LL) | |||
| Connection method | I, II,III | |||
| Waveform | 1ch | |||
| Gain | x250, x500, x1000, x2000 | |||
| HR Range | Adult: 15~300bpm | |||
| Neo/Ped | 15~350bpm | |||
| Accuracy | ±1% or ±1bpm | |||
| Resolution | 1bpm | |||
| Sensitivity | >200(uVp-p) | |||
| Differential input impedance | ≥5MΩ | |||
| ST segment Monitoring Range | ||||
| Measure Range | -2.0~+2.0mV | |||
| Measure Accuracy | -0.8mV~+0.8mV | |||
| Heart Rate | Measuring range | 0~350bpm | 20~300bpm | |
| Accuracy | ±1bpm | |||
| Resolution | 1bpm | |||
| Sensitivity | >200UVp-p | |||
| Respiration | Method | Impedance between R-F(RA-LL) | ||
| Differential Input Impedance | >2.5MΩ | |||
| Measuring Impedance Range | 0.3~3.0 MΩ | |||
| Base line Impedance Range | 200~4000Ω | |||
| Bandwidth | 0.1~2.5Hz | |||
| Resp. Rate | Adult: 2~120BrPM | |||
| Neo/Ped | 2~150BrPM | 0~150BrPM | ||
| Resolution | 1 BrPM | |||
| Accuracy | ±2 BrPM | |||
| Alarm | 10~40S | |||
| NIBP | Method | Oscillometric | ||
| Mode | Manual/Auto/STAT | |||
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |||
| Measuring Period in STAT Mode | 5 Min | |||
| Pulse Rate Range | 40~240bpm | |||
| Alarm Type | SYS, DIA, MEAN | |||
| Resolution | ||||
| Pressure | 1mmHg | |||
| Accuracy | Maximum Mean error: 5mmHg | |||
| Maximum Standard deviation | 8mmHg | |||
| SPO2 | Display | Number of SPO2,waveform of capacity,Pulse | ||
| Measuring range | 0~100% | |||
| Resolution | 1% | |||
| Accuracy | 70~100% (±2%) | |||
| Alarm system | Audio-video alarm | |||
| Pulse rate range | 0~300bpm | |||
| TEMP | Channel | 2 | ||
| Measuring and Alarm Range | 0~50ºC | |||
| Resolution | 0.1ºC | |||
| Accuracy | 0.1ºC | |||
| Actualization interval | about 1 Second. | |||
| Average Time Constant | <10 Second. | |||
