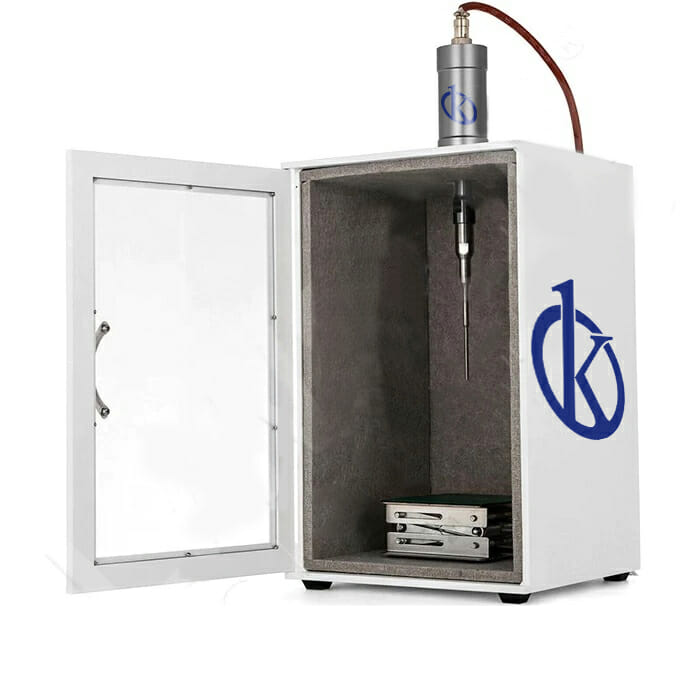

Ultrasonic Homogenizer Processor Sonicator for Liquid Processing YR05829 // YR05831

Manufacturer: Kalstein

Description

The Ultrasonic Homogenizer Processor Sonicator for Liquid Processing YR05829 // YR05831 offers an advanced and multifunctional solution for laboratories aiming for efficient solid and liquid sample processing. Its intelligent and fully digital ultrasonic generator creates cavitation in liquids, making it perfect for applications like emulsification, separation, homogenization, and extraction of animal, plant, and viral cells. This device also features a 3.5-inch touch screen and allows manual or automatic operation modes, making it essential in fields such as biochemistry, microbiology, and medicinal chemistry.

Market Price

The Ultrasonic Processor Homogenizer YR05829 // YR05831 is available at a competitive market price ranging from $1600 to $2200 USD, depending on the configuration and optional accessories such as various probe sizes and temperature controllers. This price range positions it as an affordable yet high-quality option for laboratories seeking reliable equipment for sample processing.

Frequently Asked Questions

  • What applications are suitable for this ultrasonic processor?
    It is ideal for emulsification, cell extraction, nanoparticle dispersion, and accelerating chemical reactions.
  • Is it safe for sensitive samples?
    Yes, the precise temperature and ultrasonic power control ensure that delicate samples are not damaged thermally or mechanically.

Advantages and Disadvantages

Some of the main advantages of the YR05829 // YR05831 include its capability to handle small to medium samples, compact design that saves laboratory space, and stability due to its intelligent ultrasonic generator. While it is versatile for continuous and intermittent operation, labs with large volume processing needs might find the capacity of smaller models insufficient.

Field Use

This ultrasonic homogenizer is extensively used in biotechnology research for cell disruption and protein extraction, and in material chemistry laboratories for nanoparticle dispersion. Its processing volume ranging from 0.1 ml to 300 ml makes it an excellent option for quality control and water analysis labs where accurate sample pretreatment is crucial.

Recommendations

For optimal performance of the YR05829 // YR05831, regular maintenance is advised, including cleaning the ultrasonic probe and verifying the temperature control system. If you’re interested in this equipment, we invite you to request a quote or automatically generate one through our Kalstein Plus platform. Enhance the quality of your processes with this advanced liquid processing sonicator.

Features

  • Advanced digital ultrasonic generator
  • Compact design with a 3.5-inch touch screen
  • Manual and automatic operation modes
  • Adjustable ultrasonic power from 5 to 400 W
  • Optional temperature control with a probe

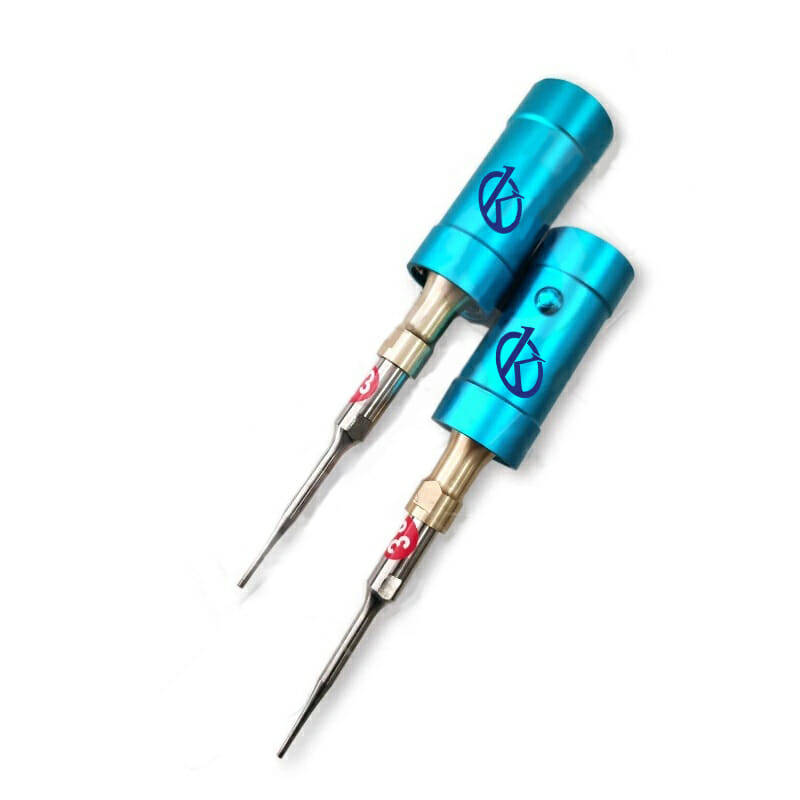

  • Durability with TC4 titanium alloy probe

Technical Specifications

Models YR05829 YR05830 YR05831
Operating mode Automatic, Manual
Screen size 3.5 inch high definition large touch screen control
Ultrasonic power(W) 5-150 5-250 5-400
Frequency(KHz) 19-25
Duty ratio(%) 1~99%
Handling capacity(ml) 0.1-50 0.5-100 0.5-300
Ultrasonic time(s/min) 1s-99m-99h
Random horn(Φ mm) 2 3 6
Temperature control Temperature probe(Optional)
Power source 220V/ 50Hz(110V Can be customized)
Optional horn(Φ mm) 2,3 2,3,6 3,6,8
Mainframe Weight(kg) 4.2 4.5
Total package weight(kg) 5.8 6.2 6.5

Additional information

Weight 4,1 kg
Dimensions 35 × 25 × 25 cm
Modelo

YR05829, YR05830, YR05831, YR05831-op1, YR05831-op2

Characteristic Feature

No Features, Titanium alloy(Ti-6Al-4V) Φ2~Φ6, White soundproof box, lifting platform
